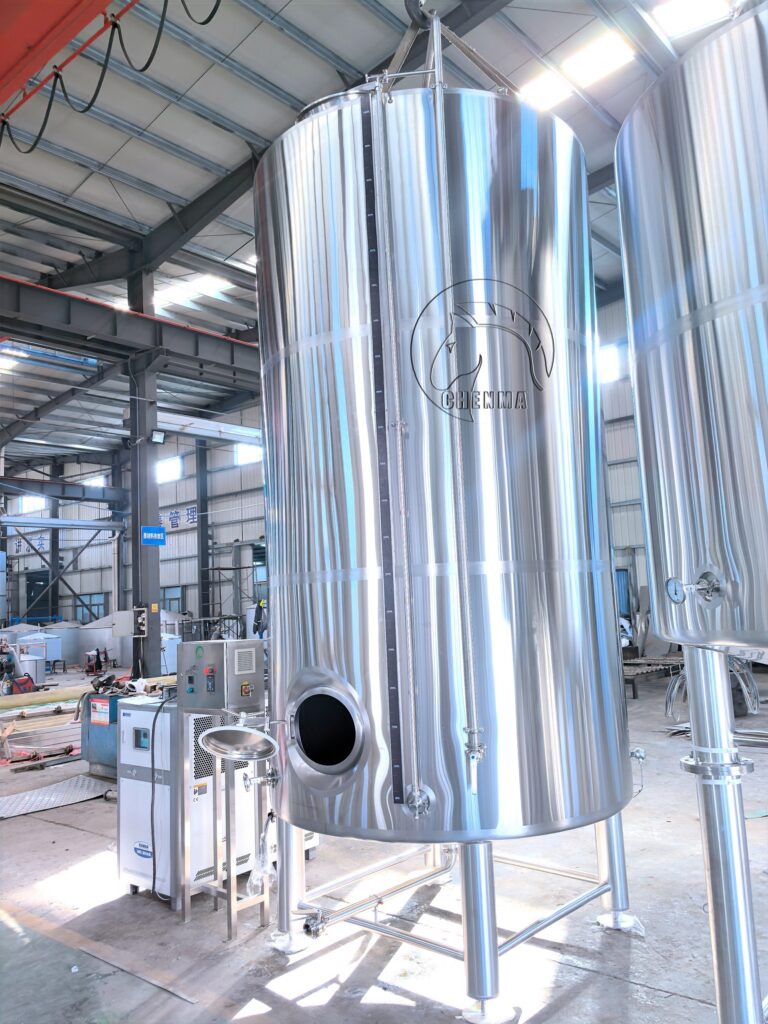

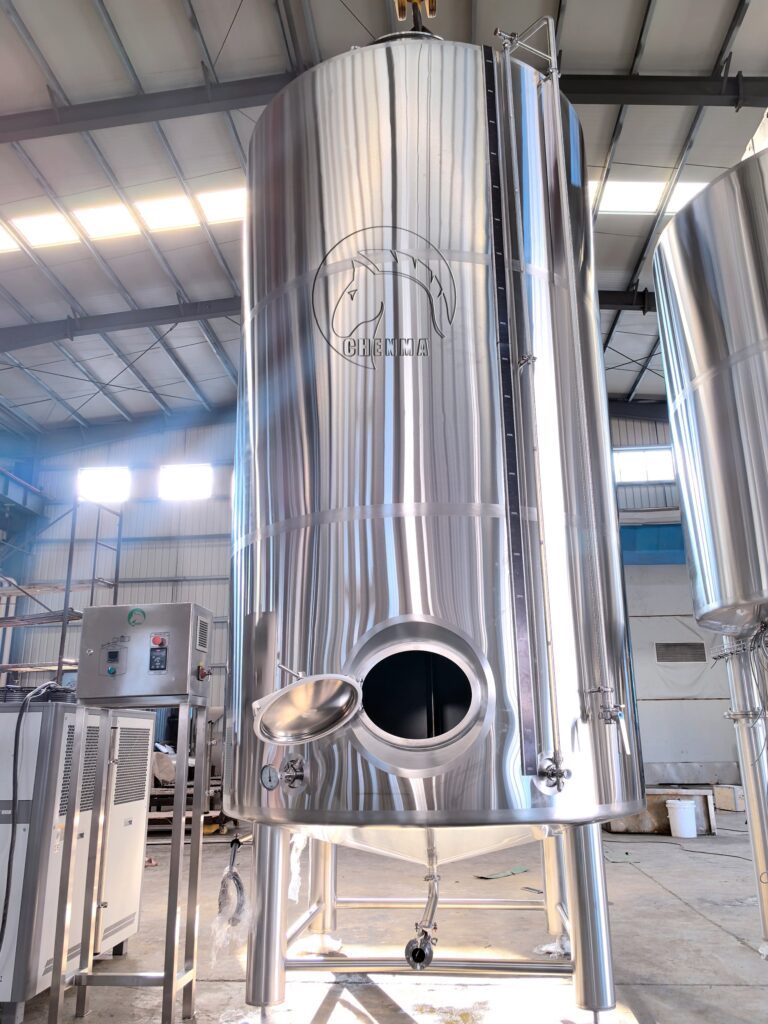

10,000L Stainless Steel Juice Mixing Tank

10,000L Stainless Steel Juice Mixing Tank

10,000L stainless steel juice mixing tank is a durable vessel designed for processing and blending juice in commercial or industrial settings, it will be used for storage of juice prior to processing or packaging.

Specification for 10,000L stainless steel juice mixing tank as follows:

1.Sanitary Stainless steel 304, thickness for inner body is 4mm and thickness for cladding is 2mm;

2.Dimension:diameter 2200mm and height4300mm;

3.Top manway, the size for top manway:DN500mm;

4.2’’breather valve on top of tank;

5.1.5’’ inlet port on top of tank;

6.2’’ juice outlet and 2’’ drain outlet with butterfly valve;

7.1.5’’ sample valve;

8.Bimetal thermometer

9.It will be mixing for Juice;

10.Effective capacity:10,000L;

11.Conical top and conical bottom;

12.Mixing power is 5.5kw, with frequency conversion;

13.With cooling jacket to store juice at 4℃ for natch preparation before packaging;

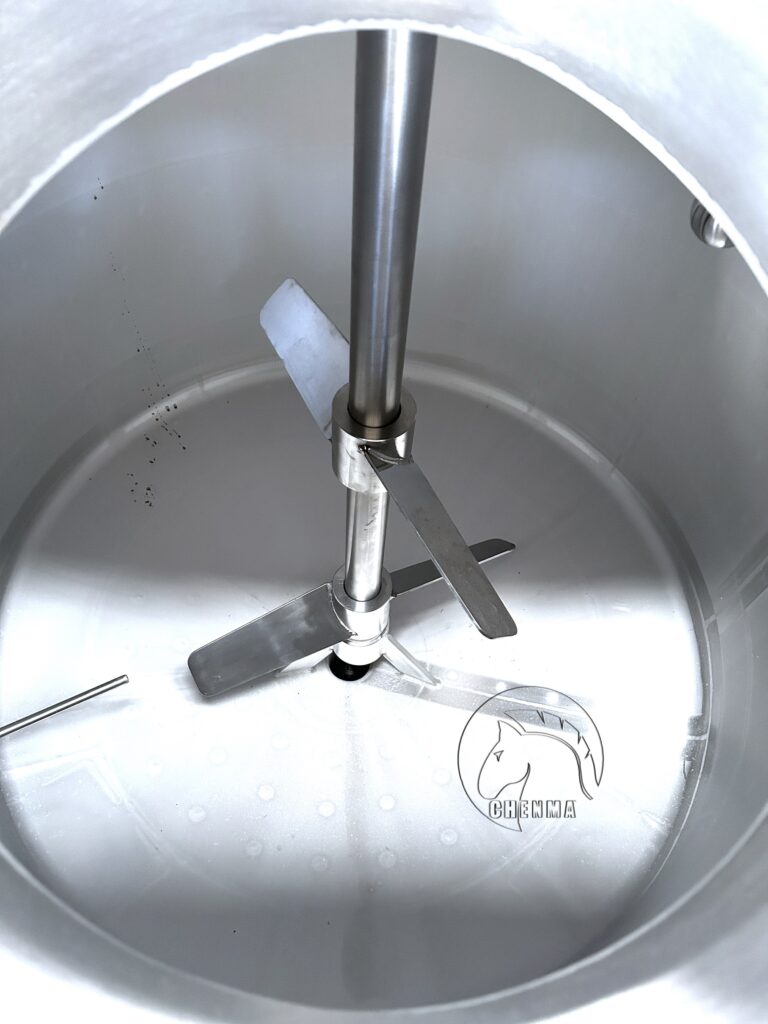

14.With mixer and the stirring motor with frequency conversion;

15.The tank with aluminum silicate insulation and thickness of insulation is 80mm;

16.With PT 100 temperature sensor;

17.The tank also with one control panel, it will be control the temperature for the tank and also control the agitator’s speed;

18.With 2pcs CIP rotating spray balls;
19.Fully welded cladding;

20.Stainless steel 4pcs legs with screw assembly to adjust leg height.
