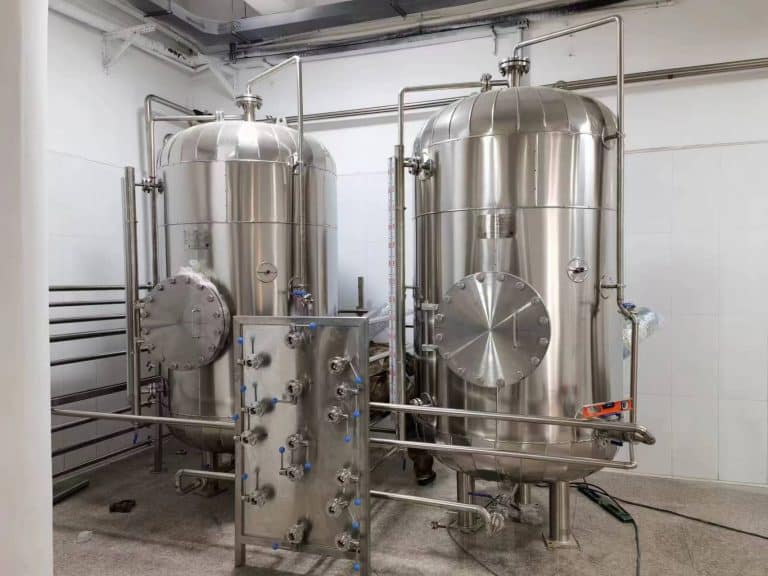

1000L Charmat Wine Tank

A 1000L Charmat wine tank is a specific type of tank used in the production of sparkling wines, particularly those made using the Charmat method. In this case, the “1000L” indicates the tank’s capacity, which is 1000 liters. These tanks are designed for the various stages of the Charmat method, which involves fermenting and aging the wine under pressure to create the effervescence associated with sparkling wines.

Here are some key features of a 1000L Charmat wine tank:

Capacity: The tank has a volume of 1000 liters, making it suitable for medium to large-scale production of sparkling wines.

Material: Charmat wine tanks are typically made from stainless steel. Stainless steel is a common choice for winemaking equipment because it is corrosion-resistant and easy to clean, which is important for maintaining the quality and purity of the wine.

Pressure Resistance: These tanks are designed to withstand the pressure generated during the second fermentation process, as carbon dioxide is produced, and the wine becomes effervescent.

Cooling and Temperature Control: Many Charmat wine tanks come equipped with cooling jackets or other temperature control mechanisms to maintain the wine at the desired temperature during fermentation and aging.

Access and Fittings: The tanks are equipped with ports, valves, and other fittings to facilitate the addition of sugar, yeast, and other necessary ingredients during the second fermentation, as well as for racking, filtration, and bottling.

A 1000L Charmat wine tank is a versatile and practical vessel for producing sparkling wines in larger quantities. It allows winemakers to control the pressure and aging conditions required for the Charmat method, resulting in consistent and high-quality sparkling wines like Prosecco or other similar styles.

Advantage：

Stainless steel Charmat wine tank is made of AISI 304 quality stainless steel, an updated to AISI 316L stainless steel is available for high-corrosion environments. Sanitary construction with 100% TIG welded joints and seams with sanitary interior polish. The charmat tank is designed, manufactured, inspected and tested to safely perform at high pressure levels.

Standard product features:

• Stainless steel 304/316L

• Domed top and domed bottom
• Sample valve
• CIP – rotary spray ball
• Liquid outlet and drain outlet assembly
• Dimple cooling jacket
•PU insulation

Working pressure-6bar

Fully welded cladding
• Side oval manway
• RTD Probe
• 2″ Butterfly valves

2″ PVRV

• Fixed Stirrer (Agitator)

• Bimetallicthermometer

• Liquid level tube
