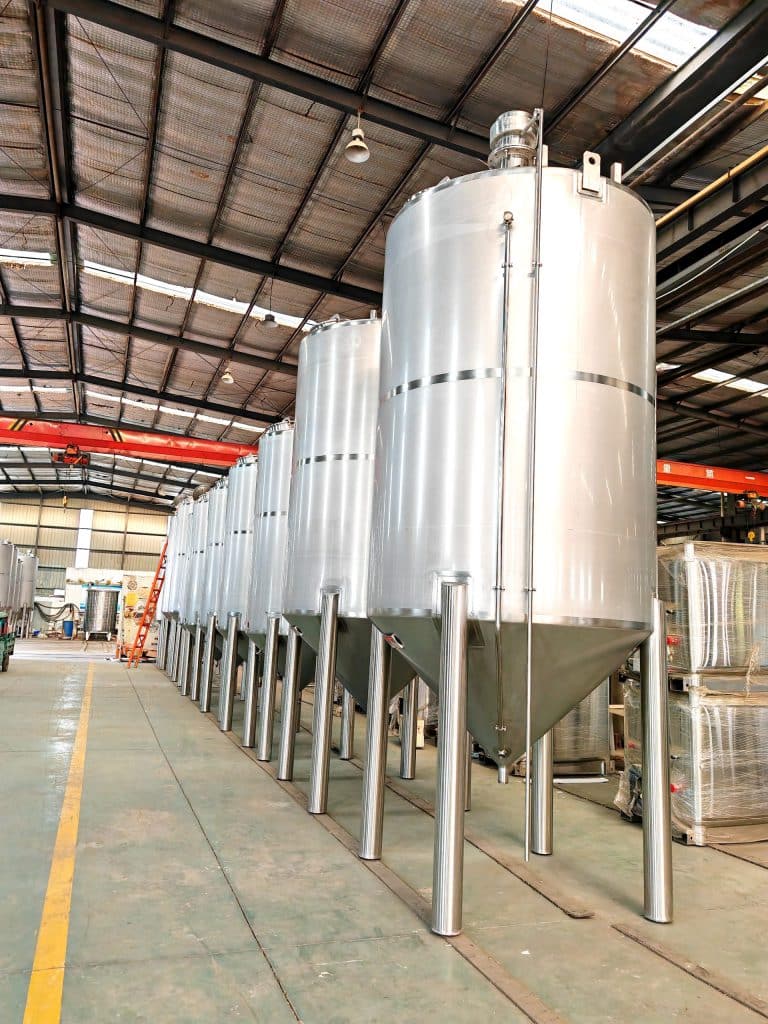

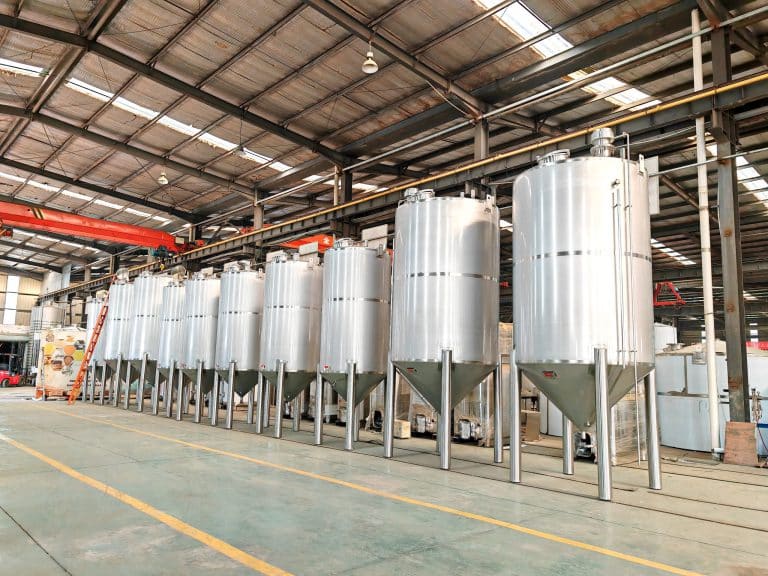

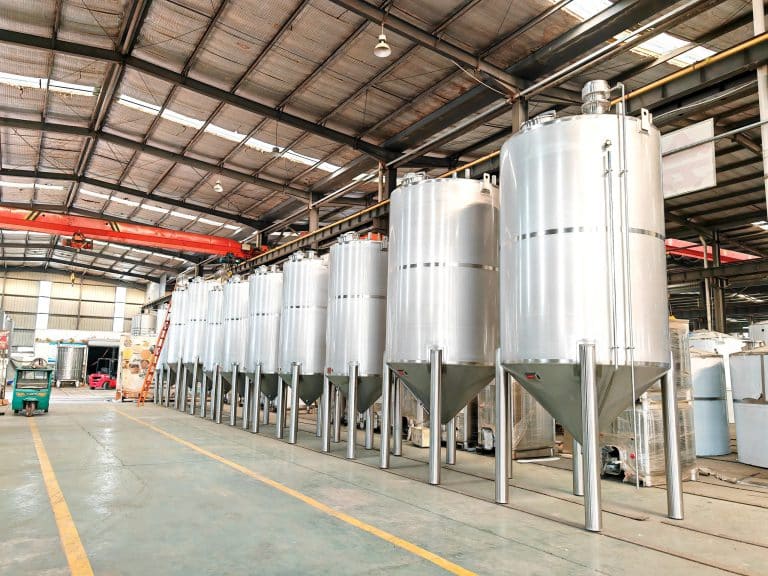

100HL Alcohol Storage Tanks

Alcohol storage tanks with a capacity of 100 hectoliters (HL) are commonly used in industries such as brewing, winemaking, distillation, and chemical storage. These tanks are specifically designed for the storage of large volumes of liquids, particularly alcohol, and come in various shapes, materials, and specifications based on the intended use.

Specification for 100HL alcohol storage tanks as follows:

1.Sanitary Stainless steel 304 or 316L,

2.Effective capacity: 100HL;

3.Top with 2’’valve inlet ;

4.Conical top and conical bottom;

5.Bottom butterfly 2’’valve outlet;
6.Top manway and size: DN500mm;

7.1.5’’ sample valve;

8.Bimetal thermometer
9.Top with 2’’ fire-proof relief valve;
10.Level gauge tube;
11.Fully welded cladding;
12.With sight glass;
13. With CIP washing ball;

14.Stainless steel legs with screw assembly to adjust leg height.

Options:

1.Continuous level sensor and high level sensor;

2.With side oval manway and the size:DN530mmx430mm;

3.With stirrer;

4.Heating/Cooling Jackets;

5.With insulation.

Alcohol storage tanks are specialized vessels designed for the storage of alcohol-based liquids. These tanks are used across industries such as brewing, distilling, winemaking, and even in chemical processing for ethanol storage.
