Product details

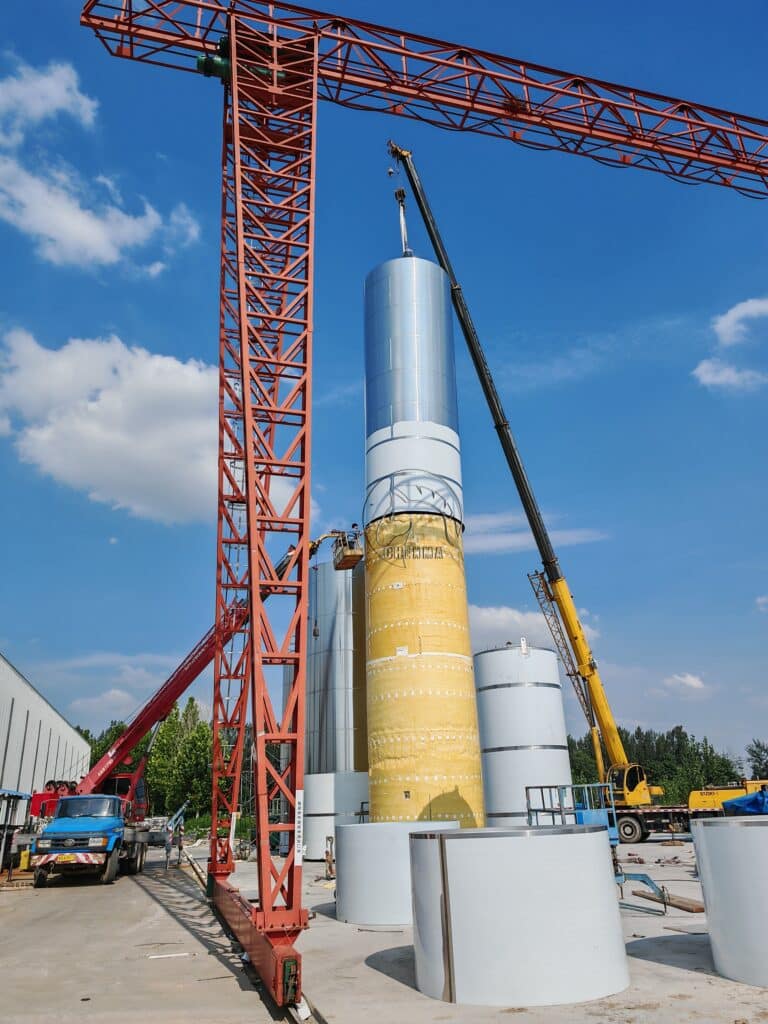

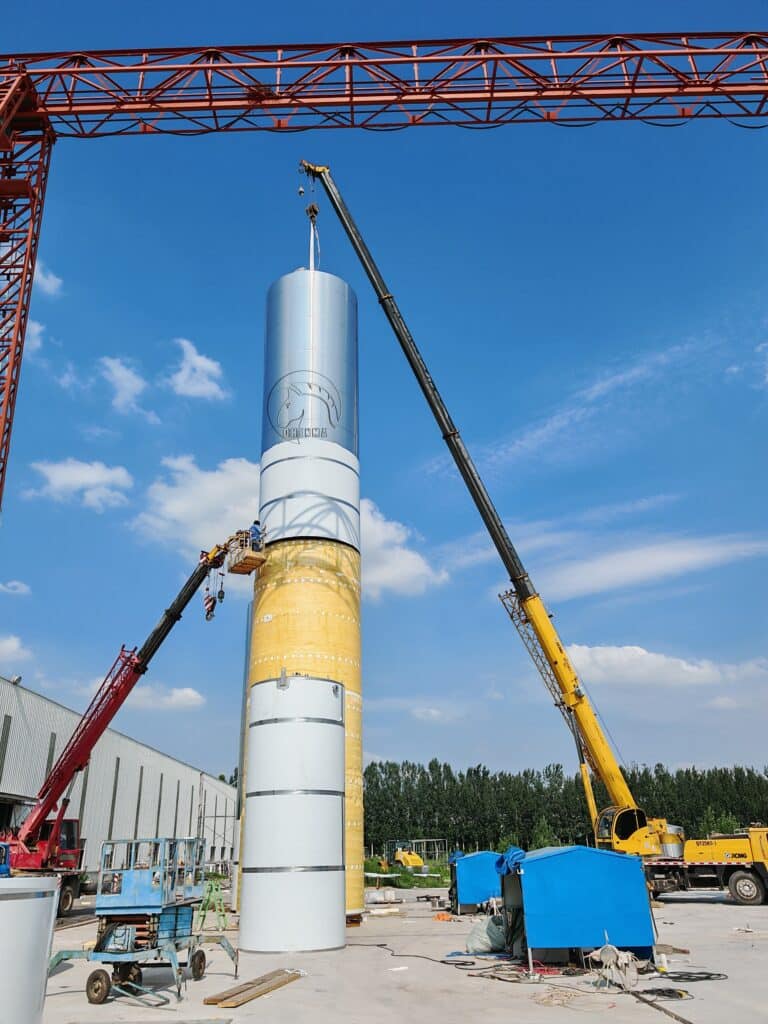

100m3 Double Wall Milk Storage Tank
100m³ double-wall milk storage tank is a large-scale industrial tank designed for safe, hygienic, and temperature-controlled storage of milk or other liquid dairy products.
1.The part in contact with the milk is stainless steel 316L;
2.The cladding is stainless steel 304, the thickness is 2mm;
3.The inner is stainless steel 316L, the thickness is 8mm;
4.Effective capacity:100m3;
6.Top manway, the size for manway:DN500mm;
7.2’’Sterile breather valve on top of tank;
8.3’’ milk inlet and 3’’ milk outlet;
9.2’’port on the tank for connecting the pH measurement;
10.1.5’’sterile sample valve;
11.Bimetallic thermometer;
12.Conical top, upper conical angle is 150degree;
13.The tank with cooling jacket;
14.Working pressure of the jacket: 2 bar;
15.Working pressure of the product: atmospheric pressure;
16.The tank with aluminum silicate insulation and thickness of insulation is 150mm;
17.With 2pcs CIP rotating spray balls;
18.Fully welded cladding;
19.The tank will be install outdoor, without legs, plinth Mounted on the floor.
Option:
1.Catwalk;
2.Agitator;
3.Differential pressure sensor.
