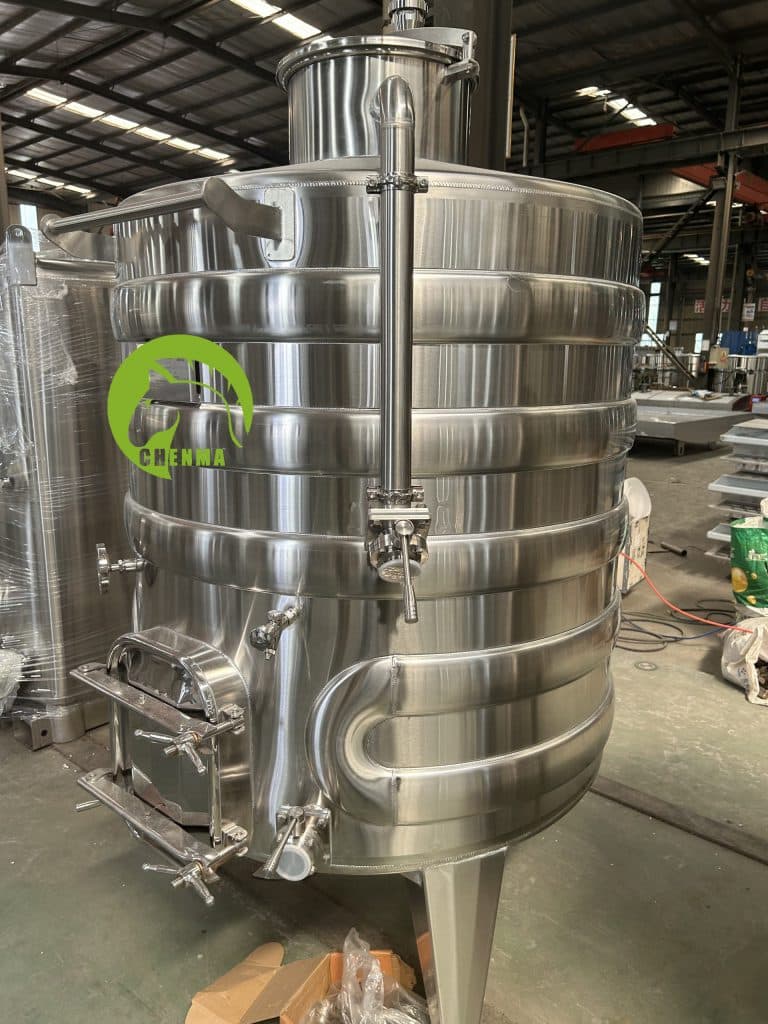

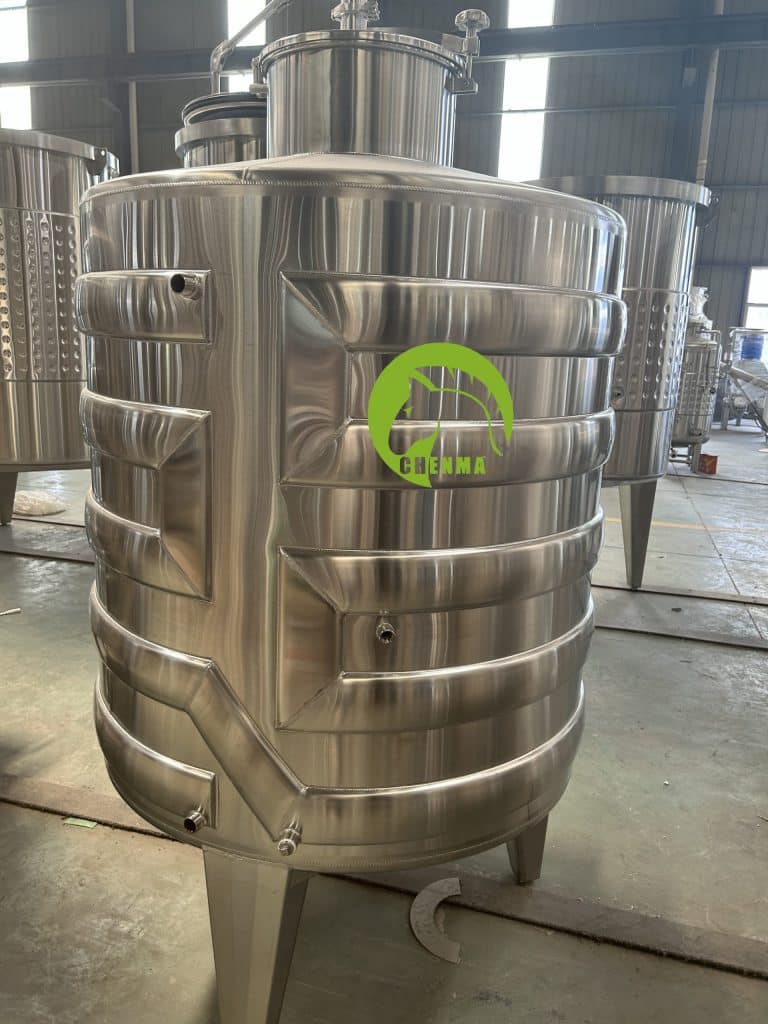

1500L Wine Fermentation Tank With Channel Jacket

1500L Wine Fermentation Tank With Channel Jacket

1500L wine fermentation tank with channel jacket is designed for temperature control during fermentation. The channel jacket allows for efficient circulation of a temperature-controlled medium, usually water or glycol, around the tank. This is crucial for maintaining optimal fermentation temperatures, which can significantly affect the quality and flavor of the wine.

1.The specification for 1500L wine fermentation tank with channel jacket as follows:

1).Sanitary Stainless steel 304, thickness of material:2mm;

2).Effective capacity:1500L;

3).Conical centric top;

4).Top Manhole Cover, the size for the top manhole is DN400mm;
5).0.75″Sample valve;
6).2″Wine outlet and drain outlet assembly;

7).2″racking valve;
8).Channel jacket and thickness of channel jacket is 1.5mm;
9).Fully welded cladding;
10).Side rectangle manway, the size for the oval manway is 430mmx330mm;
11).PT100 temperature probe;
12).1’’Glycol inlet/outlet

13).2″ Breather valve;

14).Slope bottom;

15).CIP spray ball;

16).Bimetallic thermometer;

17).Stainless steel legs with screw assembly to adjust leg height.
