Product details

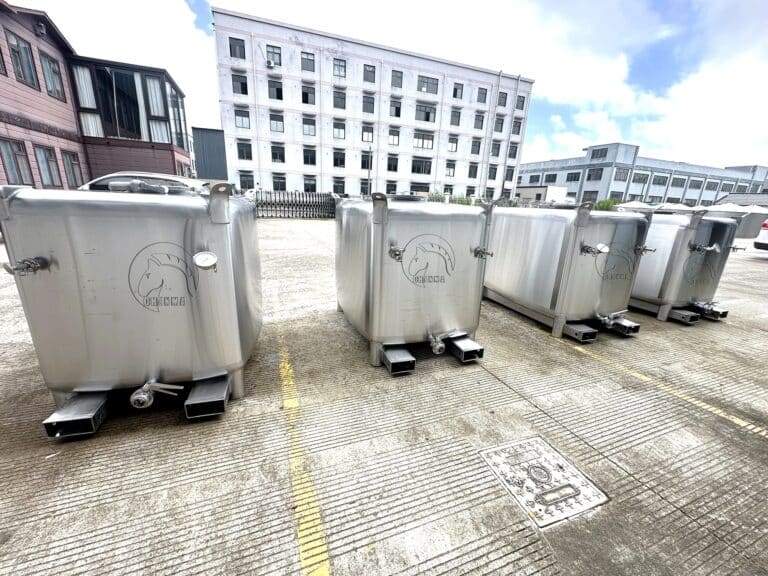

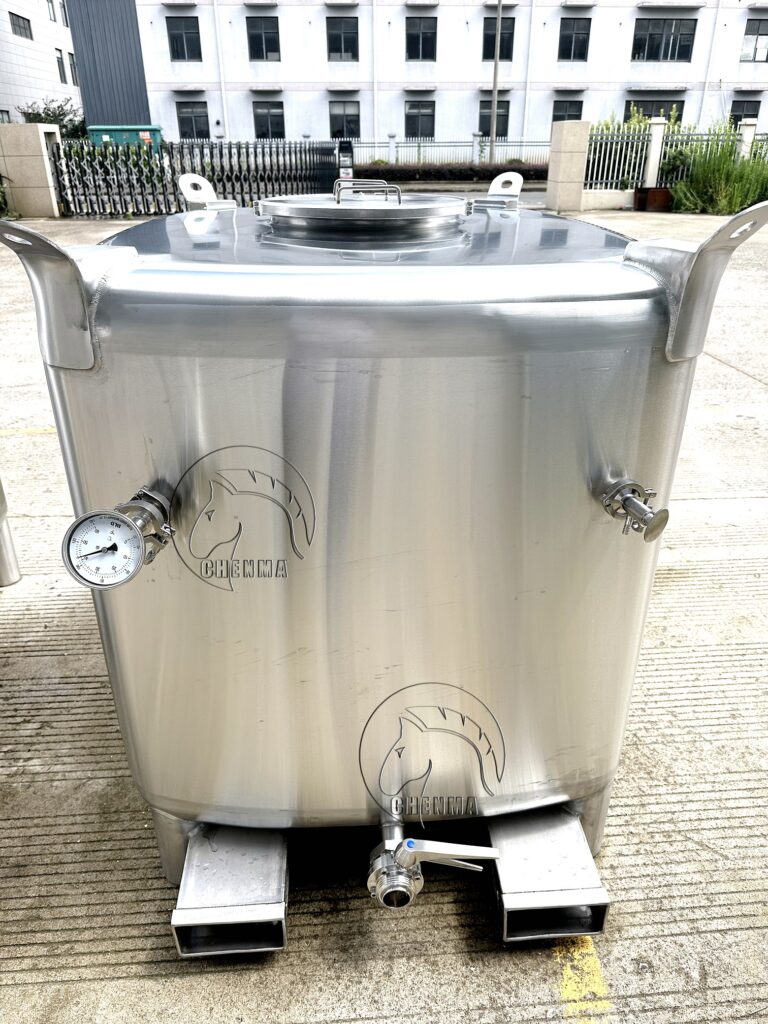

1500L(400Gallon) Stainless Steel Cube Tank
1500L (400-gallon) stainless steel cube tank is a versatile food-grade vessel used for storage, mixing, fermentation, or processing liquids in industries like food & beverage, pharmaceuticals, chemicals, and brewing.
Specification List for 1500L stainless steel cube tank as follows:
1.Sanitary Stainless steel 304, thickness of material is 3mm;
2.Effective capacity: 1500L;
3. 0.75″Sample valve;
4.2″ outlet assembly;
6. Fully welded cladding;

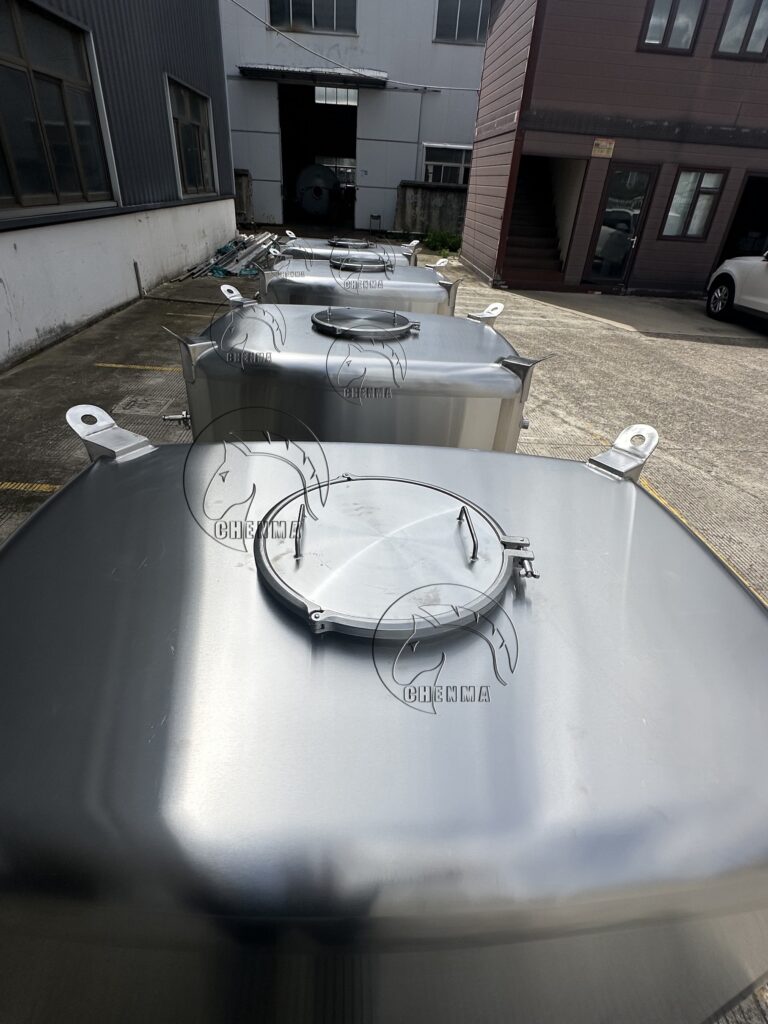

7.Top manway and the size for the manway is DN400mm;
8.1/2″ Bimetal thermometer;

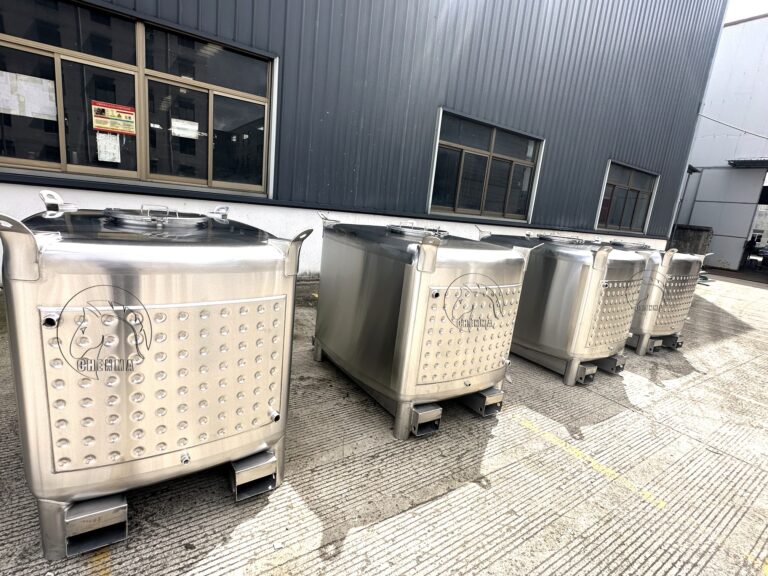

9.One side with dimple cooling jacket, 1″ glycol inlet and glycol outlet;
10.Legs -Forklift skirt;
11.Stackable;
12Slop flat bottom.
Option:
1.With cooling jacket or not:
2.With side manway or not;
3.With breather valve or not;
4.Liquid outlet and drain outlet use one or separately;
5.Connection:Tri-Clamp or BSM or DIN connection.
