2300L Floating Lid Wine Tank

2300 floating lid wine tank typically refers to a wine storage tank with a capacity of 2,300 liters (or 607gallon) equipped with a floating lid,these tanks are commonly used in winemaking for fermentation, aging, or storage while minimizing oxidation and contamination.

Product details

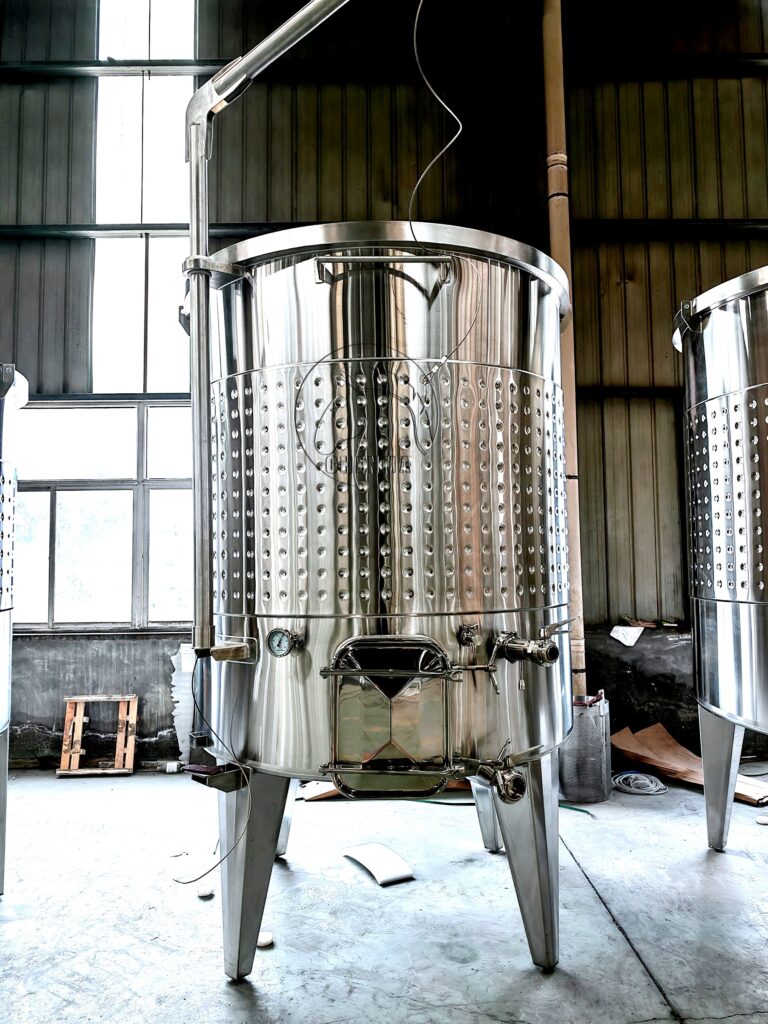

2300L Floating Lid Wine Tank

2300L floating lid wine tank typically refers to a wine storage tank with a capacity of 2300 liters (about 607 gallons) equipped with a floating lid, these tanks are commonly used in winemaking for fermentation, aging, and storage.

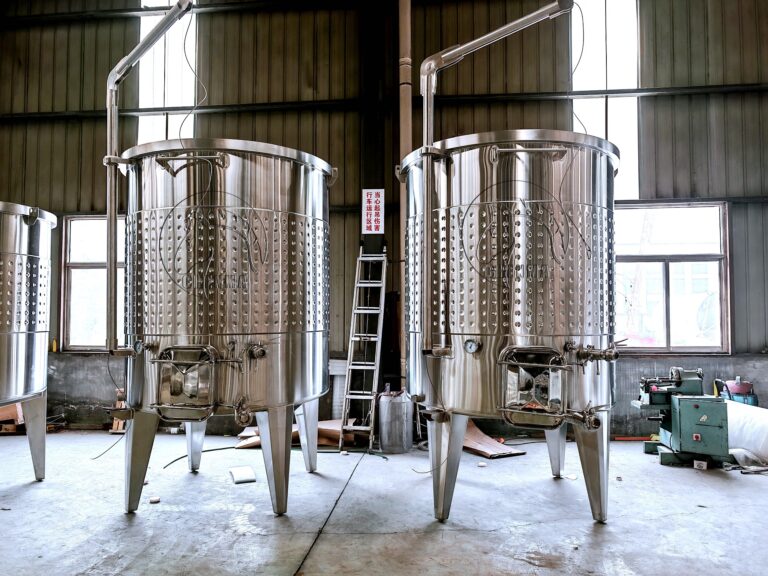

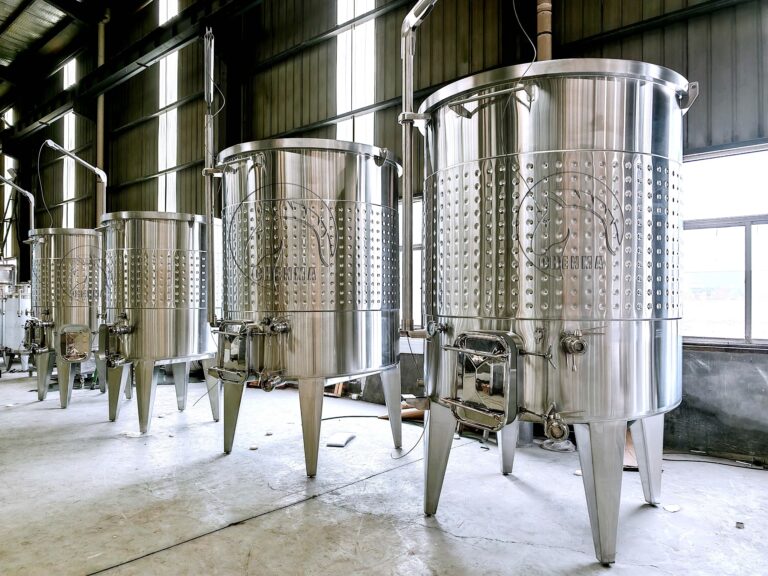

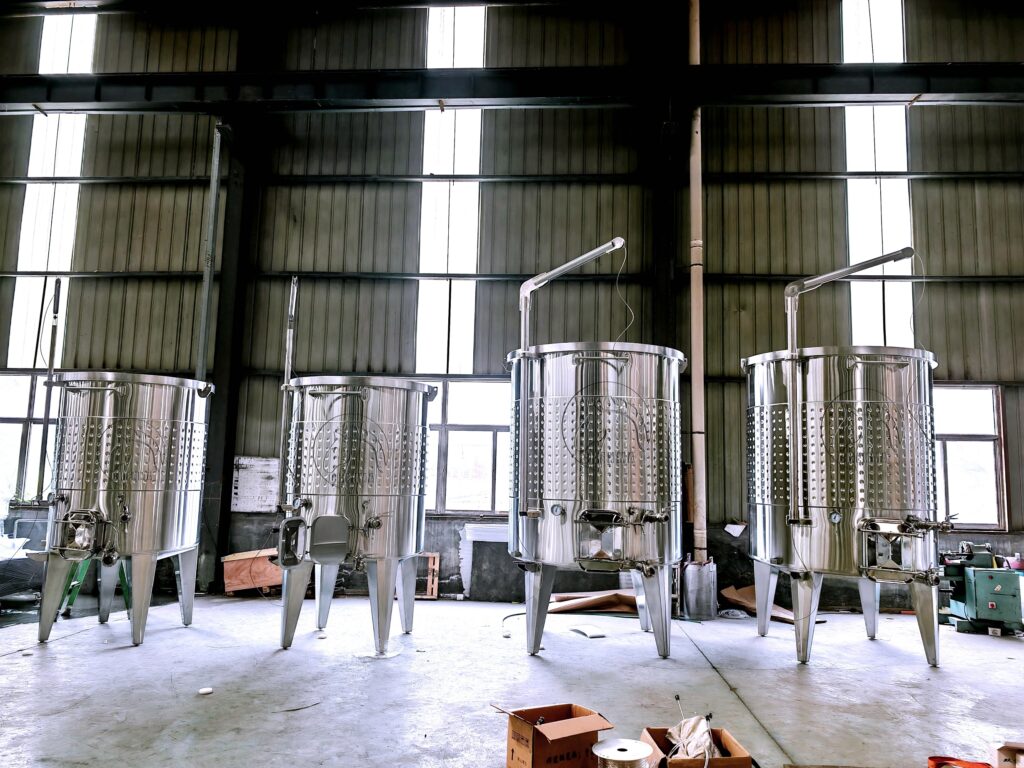

floating lid wine tanks

floating lid wine tanks

Specification for 2300L floating lid wine tank as follows:

1.Sanitary Stainless steel 304, thickness:2.5mm;

2.Effective capacity: 2300L;

3.Floating lid-with inflatable gasket and pump;

4.Floating lid with stainless steel 316L, and thickness is 1mm;

5.Lift arm;
6. 0.75’’Sample valve;
7.2’’Wine outlet, tri-clamp connection

8.2’’ Drain outlet, tri-clamp connection;
9. Dimple cooling jacket, thickness: 1.5mm;
10.Fully welded cladding;
11.Side rectangle manway, size:430mmx330mm
12.RTD Probe;
13.1’’Glycol inlet/outlet;

14.Sloped flat bottom;

15.2’’breathe valve;

16.Bimetallic thermometer;

17.There has a filter screen inside of tank;

18.Stainless steel legs with screw assembly to adjust leg height.

Option:

1.With cooling jacket or not;

2.With liquid level meter or not;

3.With filter screen inside of tank or without it;

4.Connection:Tri-Clamp or BSM or DIN connection;

5.Side rectangle manway or side oval manway.
