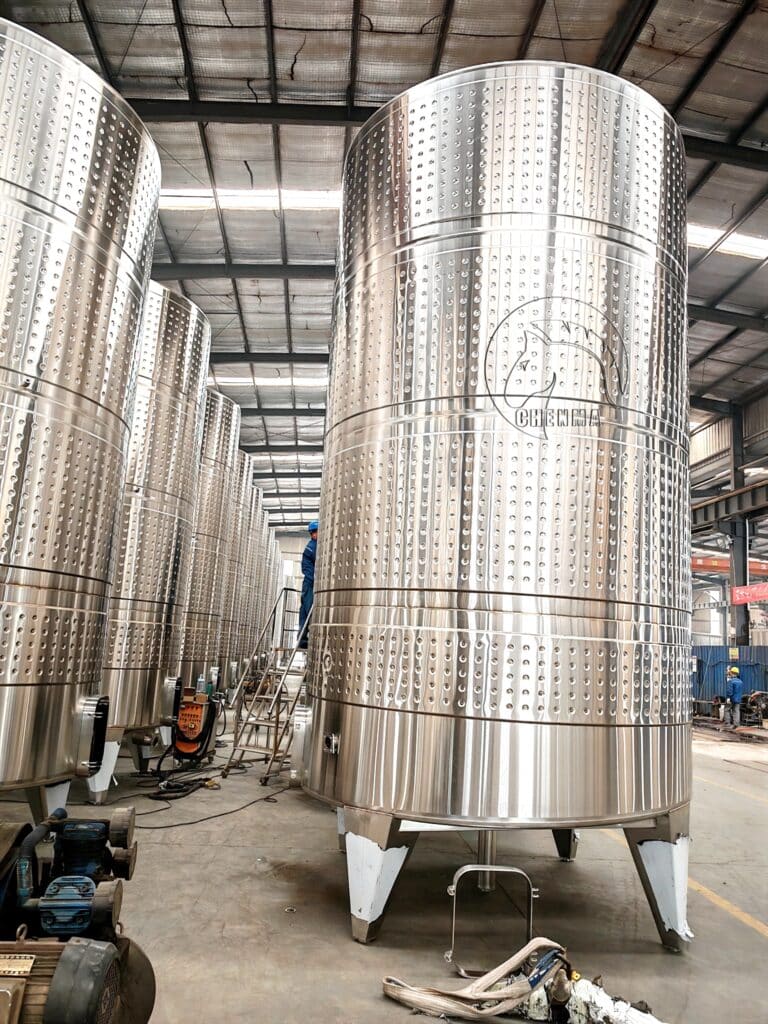

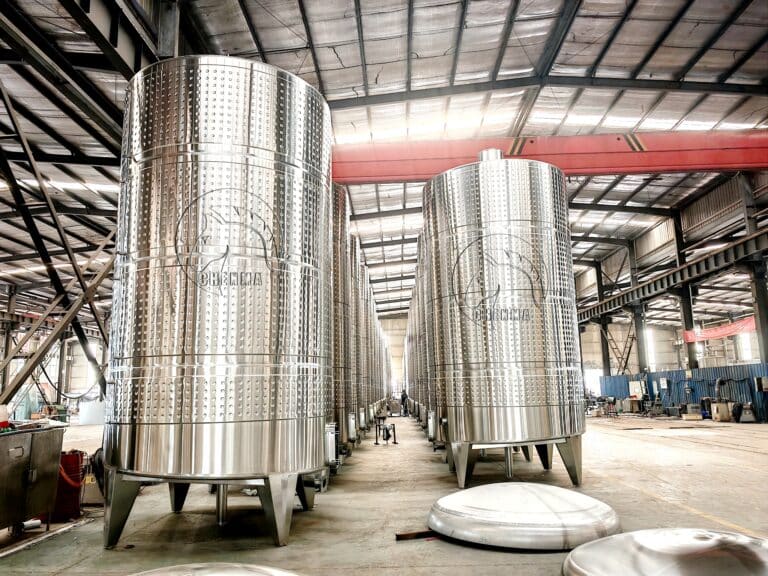

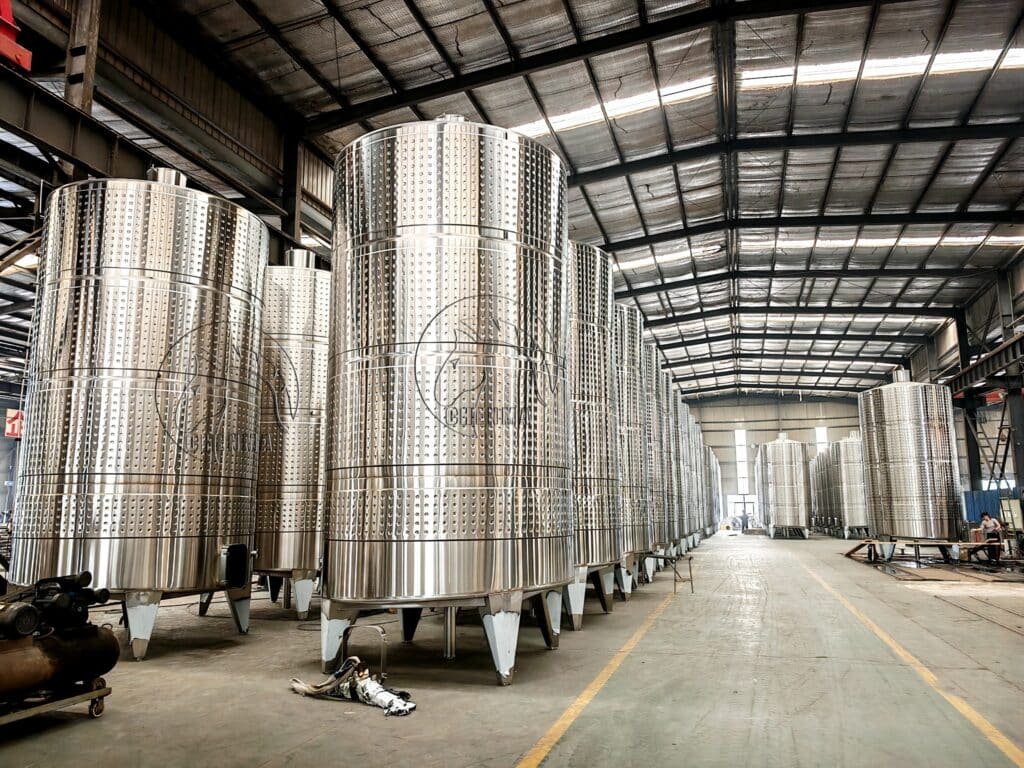

30,000L Stainless Steel Wine Fermentation Tank

30,000L Stainless Steel Wine Fermentation Tank

30,000L stainless steel wine fermentation tank (typically made from 304 or 316L SS) is a large-capacity vessel designed for primary or secondary wine fermentation, aging, and storage.

Specification for 30,000L stainless steel wine fermenter tanks as follows:

1.Food grade stainless steel  304,thickness of material for cylinder and upper cone is 3mm and thickness of bottom is 4mm;

2.Volume: 30,000L;

3.Centra conical top;
4.0.75’’Sample valve;
5.CIP – rotary spray ball;
6.2’’Wine outlet with butterfly valve;

7.4’’drain outlet assembly with butterfly valve;
8.Dimple cooling jacket, thickness of cooling jacket is 1.5mm;

9.Jacket inlet&outlet 1.25″female thread;
10. Fully welded cladding;

11.Top Manhole Cover, the size for the top manhole is DN500mm;
12.Side rectangle manway, the size for the manway is 530mmx430mm;

13.Internal welding line will be polished;
14.IFM Temperature sensor ;

15.Sloped flat bottom;

16.2″ Breather valve;

17.Lift lugs;

18.Bimetallic thermometer;

19.There is a filter screen inside of tank;

20.IFM Liquid level ;

21.Stainless steel legs with bigger and thicker base plate, with screw assembly to adjust leg height.
