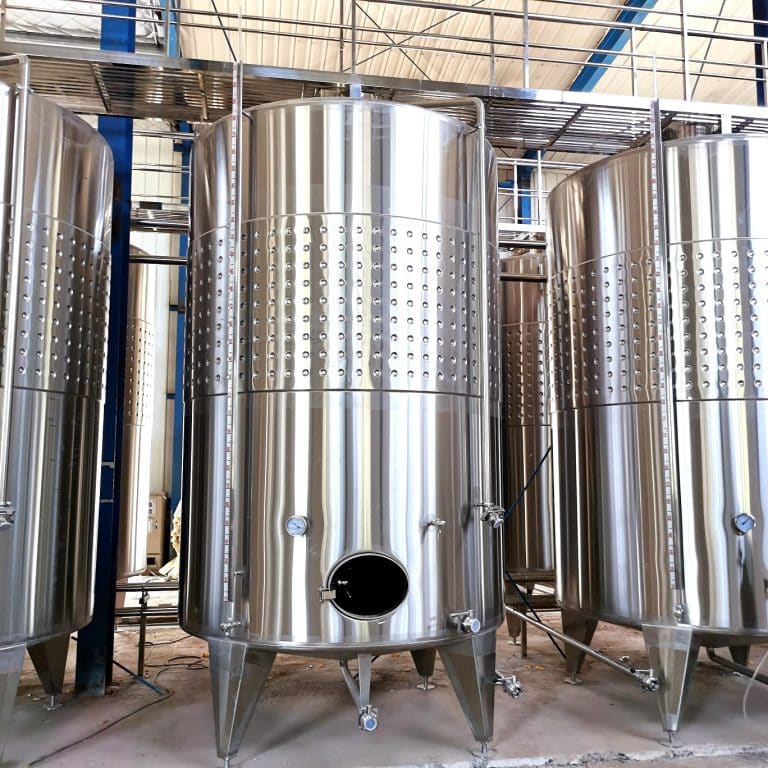

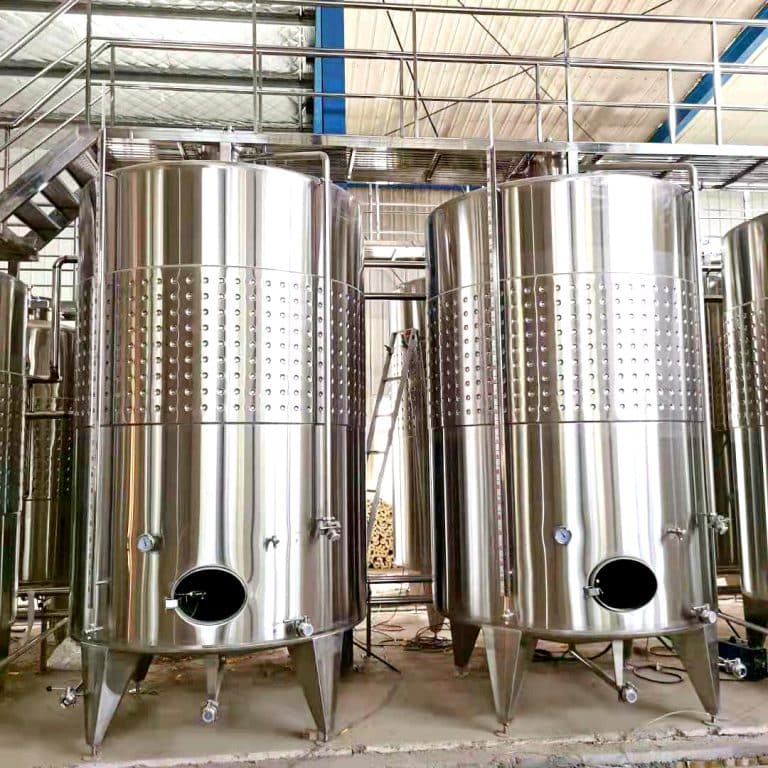

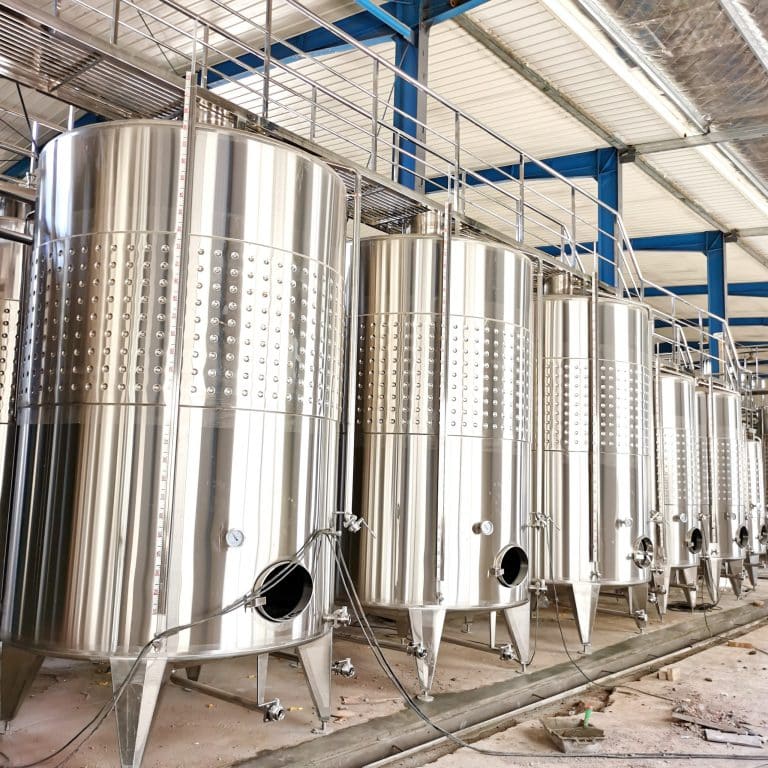

3000L Stainless Steel Cider Fermenting Tank

3000L stainless steel cider fermenting tank is a vessel designed specifically for fermenting cider. This type of tank is essential for cideries that produce large volumes of cider, allowing for efficient fermentation, storage, and sometimes even conditioning of the cider.

The specification list for 3000L stainless steel cider fermenting tank:

1).Food grade stainless steel  304,finished: 2B internal, brushed external;

2).Conical top;
3).0.75’’Sample valve;
4).CIP – rotary spray ball;
5).2’’cider outlet and drain outlet assembly;
6).Dimple cooling jacket;
7).Fully welded cladding;

8).Top Manhole Cover, the size for the top manhole is DN450mm;
9).Side oval manway, the size for the manway is 430mmx330mm;

10).Welds grounded & pickled;
11).PT 100 Temperature Probe;
12).2″ Butterfly valves;

13). Conical bottom;

14).2″ breath valve;

15).Lift lugs;

16).Bimetallic thermometer;

17).Jacket inlet&outlet

18).Stainless steel legs with bigger and thicker base plate, with screw assembly to adjust leg height.

Optional:

• Ladder and catwalk systems
• Glycol piping
• External sight gauges
• Insulated and fully welded stainless steel outer jacket
• Construction from 316L stainless steel
• Automated temperature control
• Agitation for product mixing.

3000L stainless steel cider fermenting tank is a medium-capacity vessel designed for the fermentation of cider, making it suitable for commercial cideries or larger production facilities.
