Product details

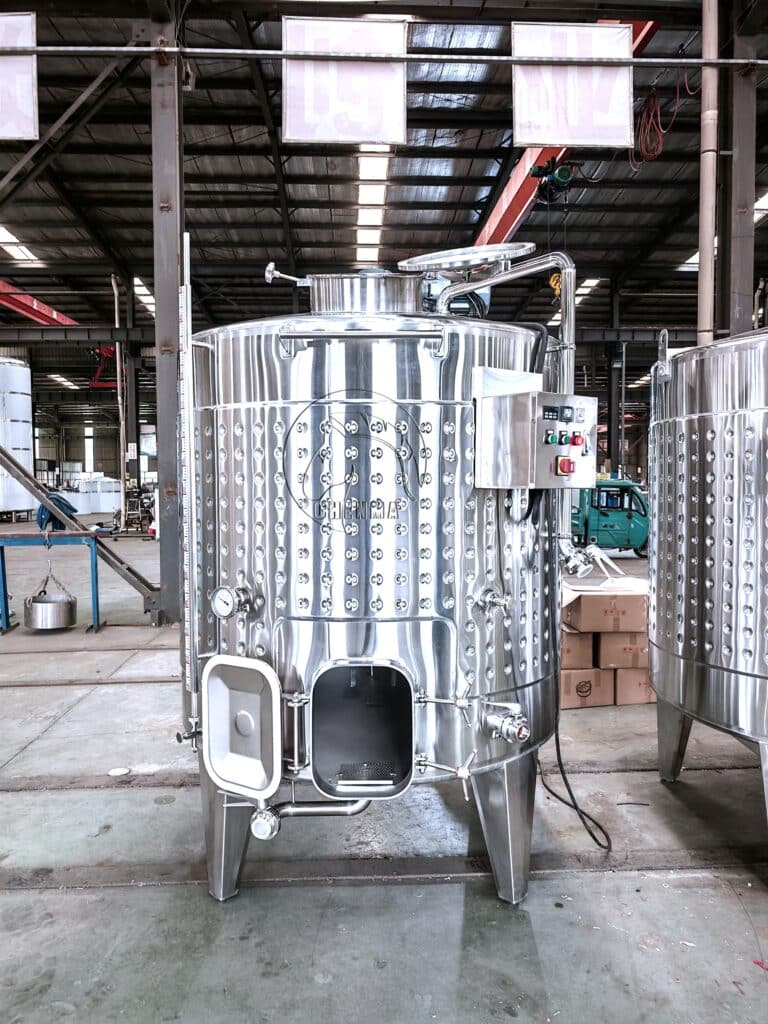

3000L Wine Fermentation Tank with Agitator
3,000L (792USgallons) wine fermentation tank with an agitator is a specialized vessel typically used by commercial wineries, especially for red wine production where cap management and uniform fermentation are critical.
The specification for 3000L wine fermentation tank with agitator as follows:
1.Food grade stainless steel 304,thickness of material:3mm;
2.Inside of tank is pickling and passivation and inner welding line is polished;
3.Volume: 3000L;
4.Conical top and conical bottom;
5.0.75’’Sample valve;
6.CIP – rotary spray ball;
7.2’’Liquid outlet and drain outlet assembly, tri-clamp connection;
8.Dimple cooling jacket;
9.Jacket inlet&outlet 1″female thread;
10. Fully welded cladding;
11.Top Manhole Cover, the size for the top manhole is DN400mm;
12.Side rectangle manway, the size for the manway is 430mmx330mm;
13.Liquid level gauge;
14.PT 100 Temperature Probe;
15.2″ Butterfly valves;
16.2″ Breather valve on the top of tank;
17.Lift lugs;
18.Bimetallic thermometer;

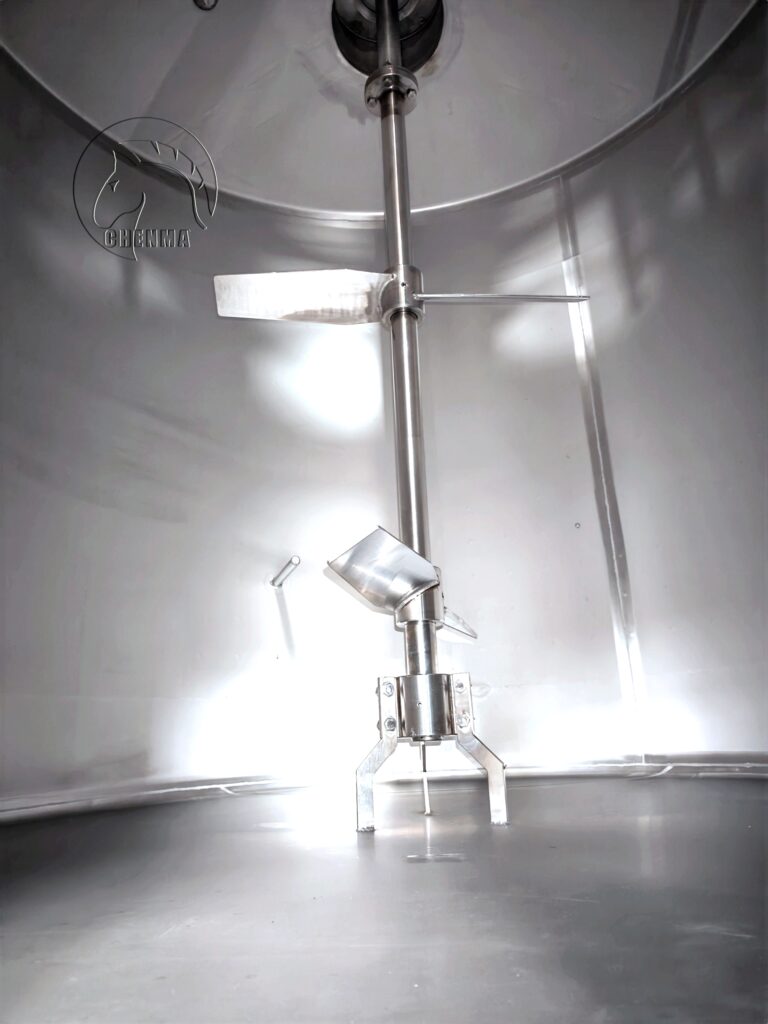

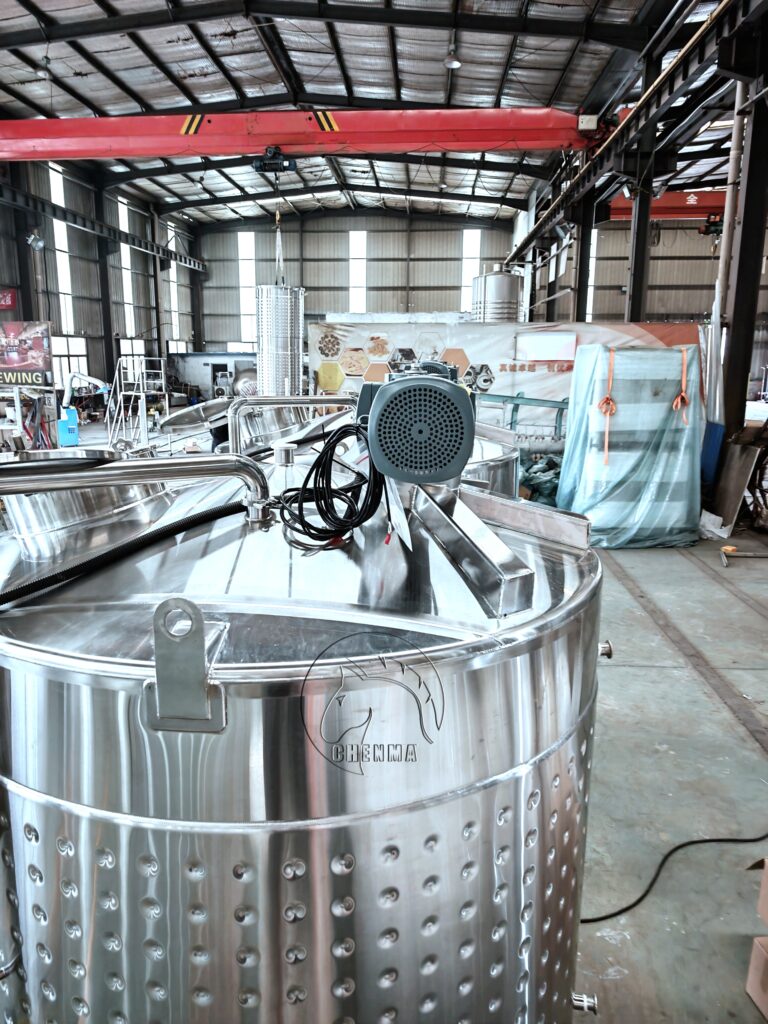

19.With agitator and agitator power is 2.2kw;
20.The tank also with one control panel, it will be control the temperature for the tank and also control the agitator’s on/off;
21.Stainless steel legs with bigger and thicker base plate, with screw assembly to adjust leg height.
