30m3 Palm Oil Storage Tank

30 m³ palm oil storage tank is designed to store palm oil safely and maintain its quality,suitable for small to medium-scale storage, it is applicable for Palm oil refiners, food processors, and bulk distributors.

Product details

30m3 Palm Oil Storage Tank

30 m³ palm oil storage tank is designed to store palm oil safely and maintain its quality,suitable for small to medium-scale storage, it is applicable for Palm oil refiners, food processors, and bulk distributors.

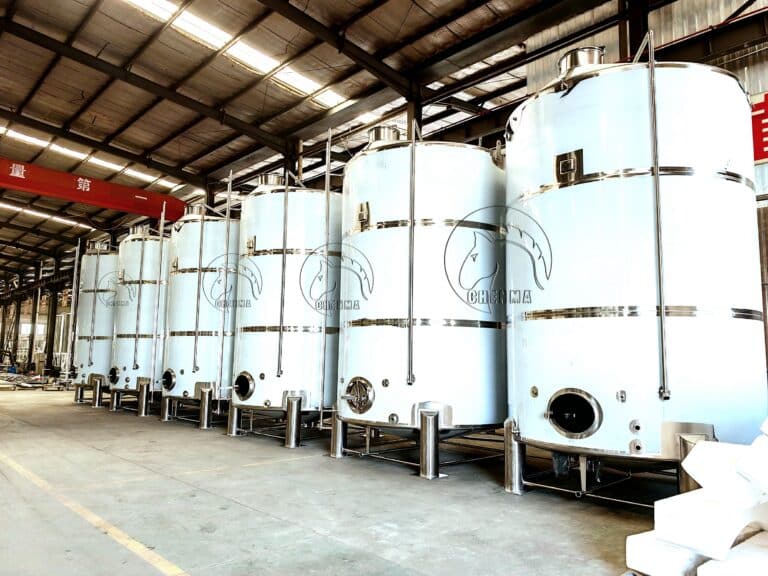

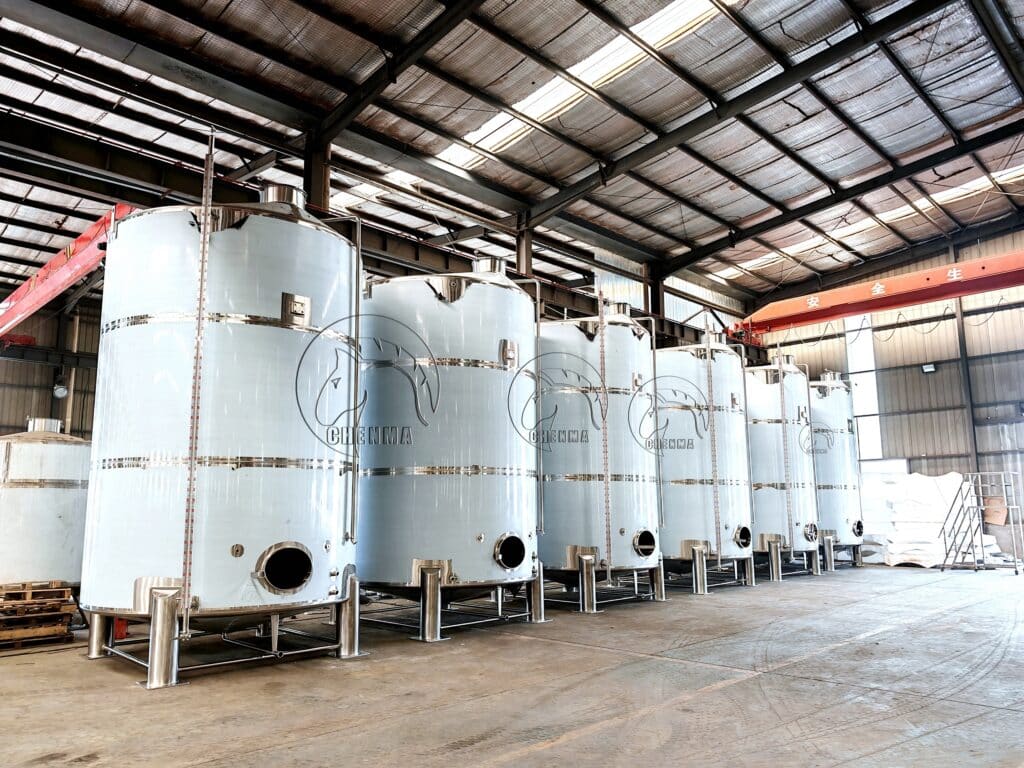

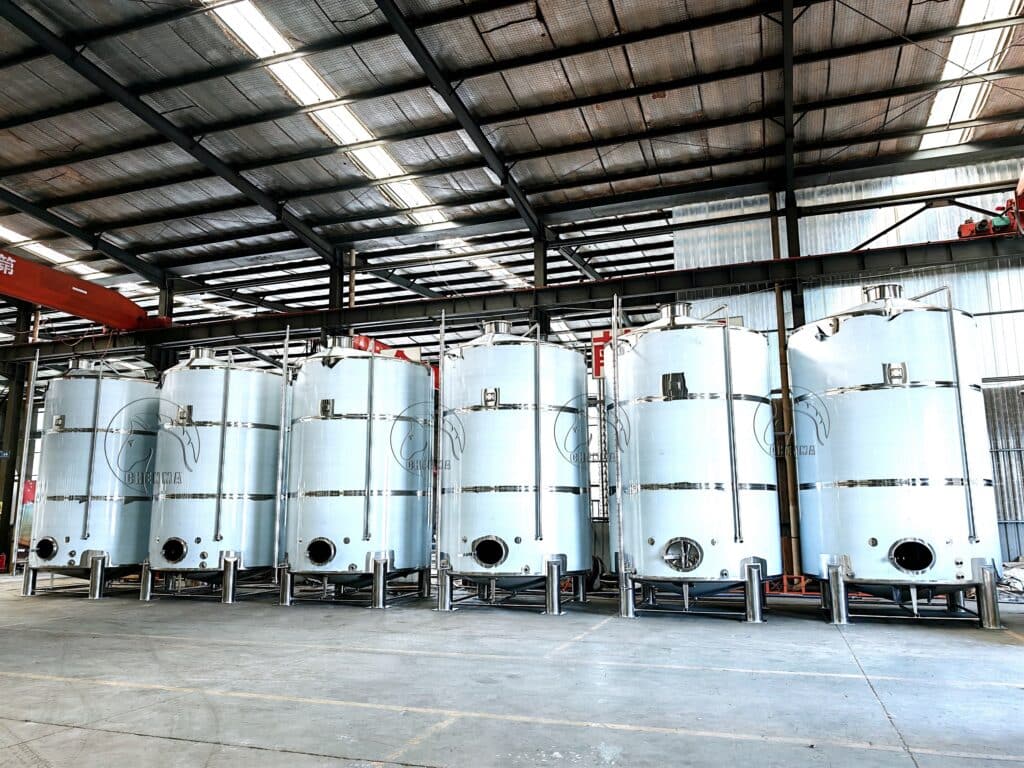

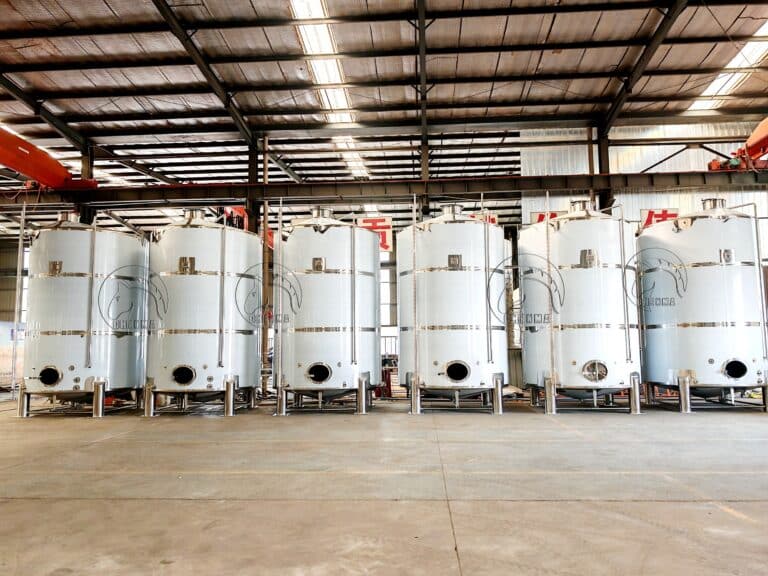

30tons palm oil storage tanks

30tons palm oil storage tanks

Specification list for 30m3 palm oil storage tanks as follows:

1.Sanitary Stainless steel 304, inside for the tank will be pickling and passivation and welding line will be polished;

2.Effective capacity:30m3;

3.Cylinder shape ;

4.The thickness for bottom base is 5mm and the thickness of cylinder is 4mm;

5.The size for the tank:diameter for 3000mm and height for 5200mm;

6.Eccentric top manway door and size is DN 500mm, EPDM;

7.0.75″Sample valve;

8.Partial discharge with butterfly valve and DN50mm;

9.Full discharge with butterfly valve and DN50mm;

10.2″Drain outlet;

11.Fully welded cladding;

12.Side oval manway, the size for the oval manway is 530mmx430mm, EPDM;

13.Breather pipe DN50mm;

14.The tanks without jacket and without insulation;

15.Magnetic flap level gauge;

16.CIP spray ball;

17.Bimetallic thermometer;

18.Stainless steel 4pcs legs with screw assembly to adjust leg height.
