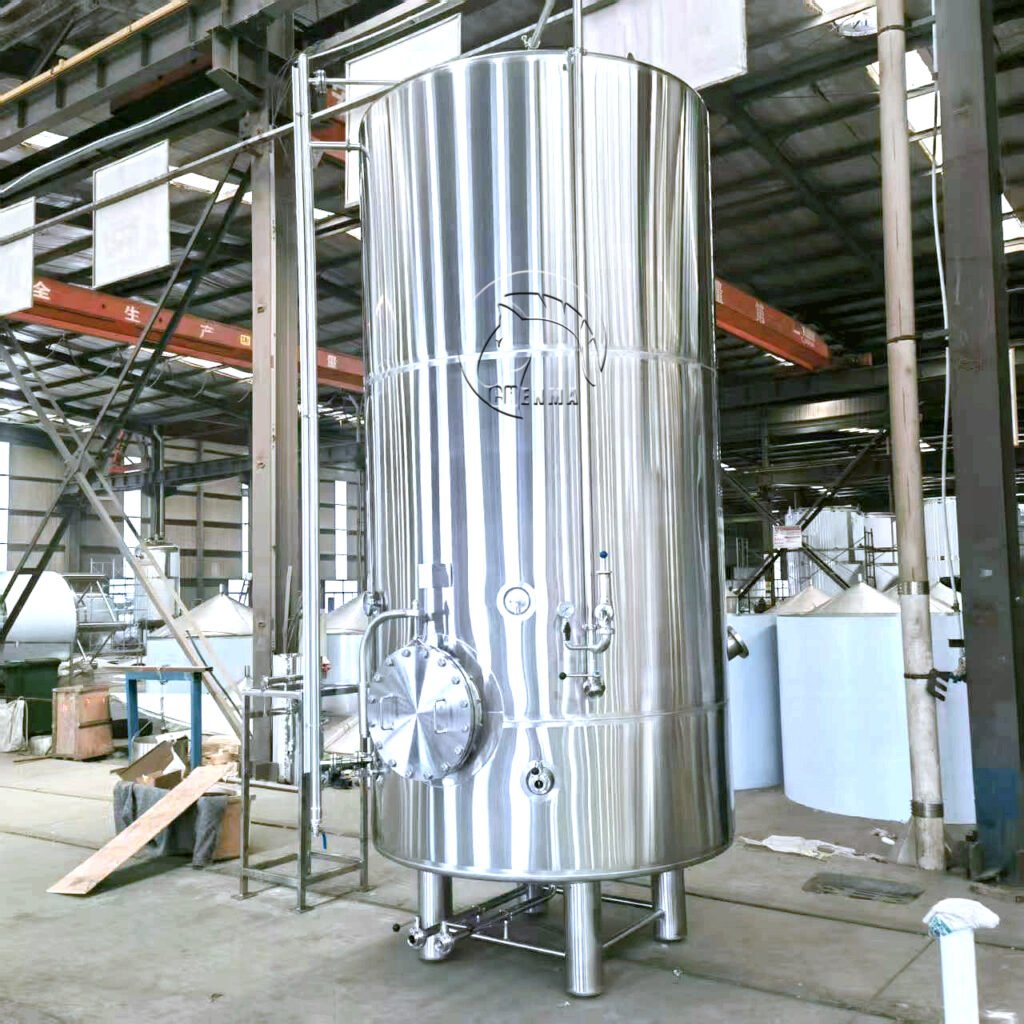

New 5000L Charmat Wine Tank with Mixing System
The 5000L stainless steel charmat wine tank is a stainless steel pressure vessel designed for sparkling wine production using the Charmat method at a work pressure of 6 bar-8bar, It has a dished top and bottom and Pressure-resistant manhole.
Product details
New 5000L Charmat Wine Tank with Mixing System
The 5000L charmat wine tank is a stainless steel pressure vessel designed for sparkling wine production using the Charmat method at a work pressure of 6 bar-8bar,It has a dished top and bottom and pressure-resistant manhole.
The specification for 5000L stainless steel charmat wine tank as follows:
1.Sanitary Stainless steel 304
2.Effective capacity:5000L
3.Outer dimension:￠1700mmx4052mm
4.Dome top head and dome bottom
5.Surface brushed, welding line polish sanding light belt
6.Dimple plate cooling jacket
7.Polyurethane insulation, thickness: 100mm
8.Inner body thickness 5mm, cladding thickness 2mm
9.Working pressure: 6bar
10.With safety components and pressure gauge
11.Side or top manway
12.With rotary CIP spray balls and arm
13.PT100 temperature sensor
14.1.5’’Sample valve in the cylinder
15.2 ladder hooks

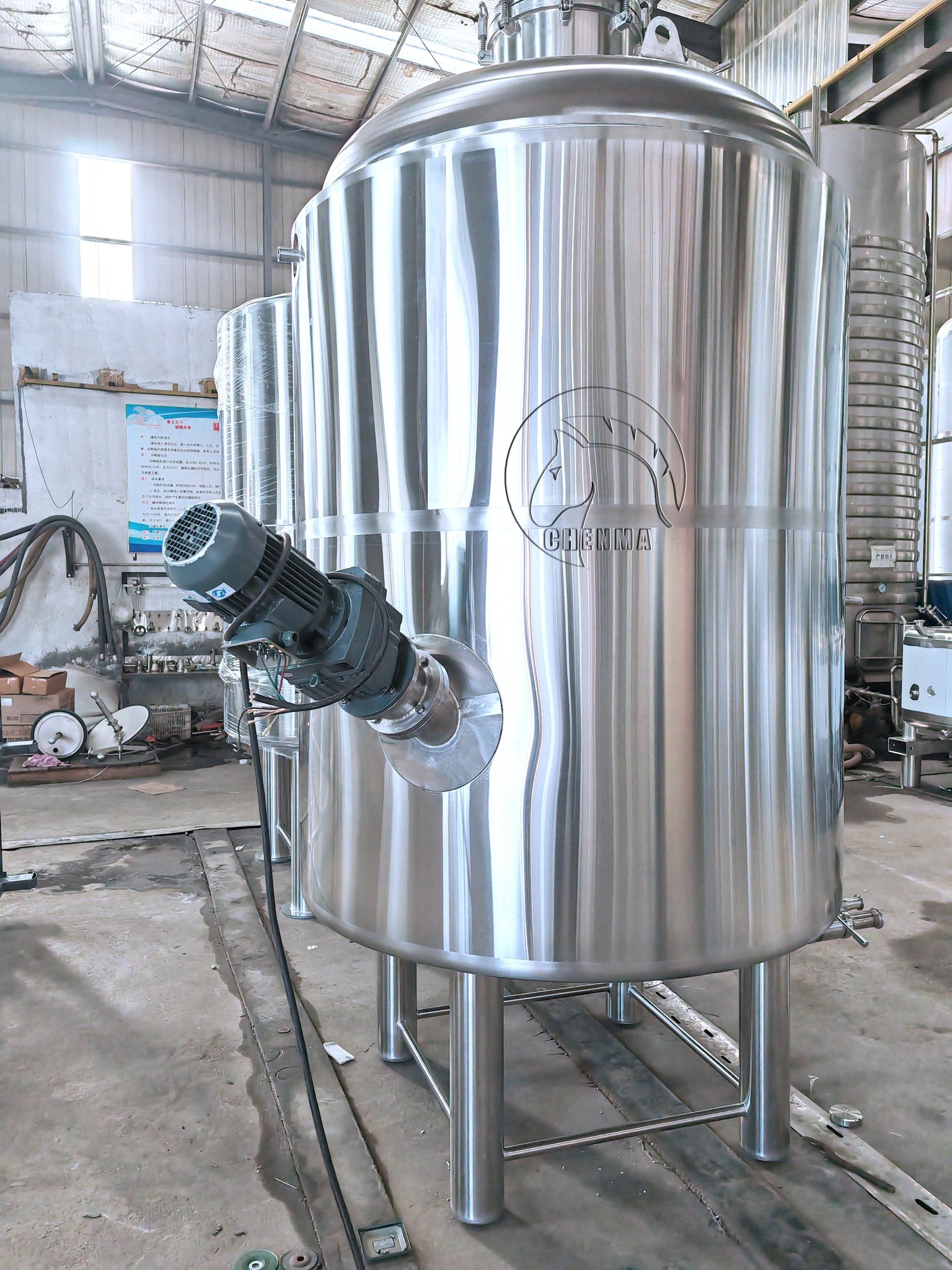

16.With side agitator, stirring power:1.5kw
17.Liquid level meter
18.1.5’’ liquid inlet port on top of tank
19.With gas filling components
20.Stainless steel legs with bigger and thicker base plate, with screw assembly to adjust leg height
21.Complete with associated valves and fittings
Stainless steel charmat wine tank is a specialized vessel used in the production of sparkling wines (such as Champagne, Prosecco, Cava, or other bubbly wines). These tanks are designed to withstand the high pressures generated during secondary fermentation and aging while maintaining the wine’s quality.
