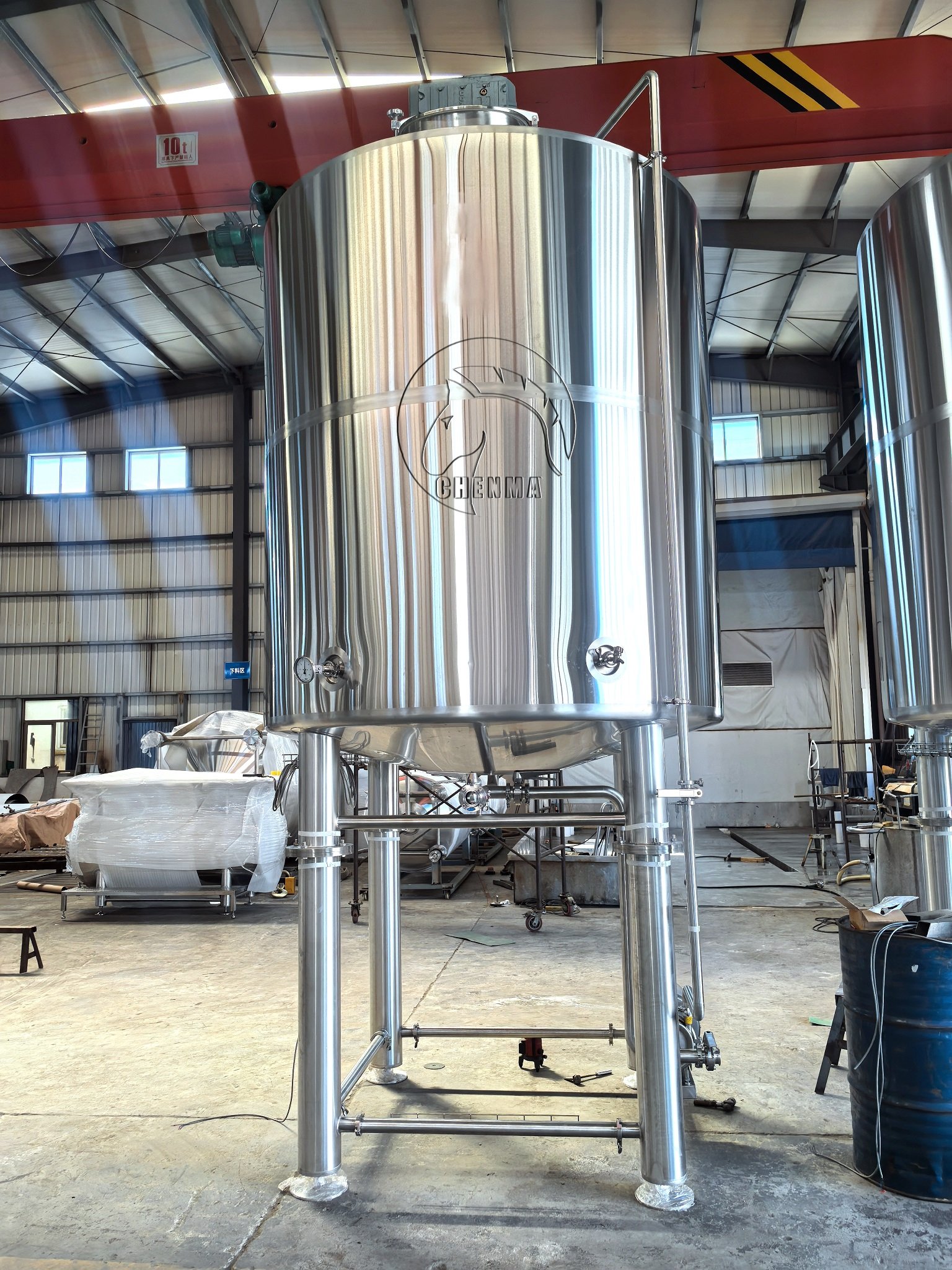

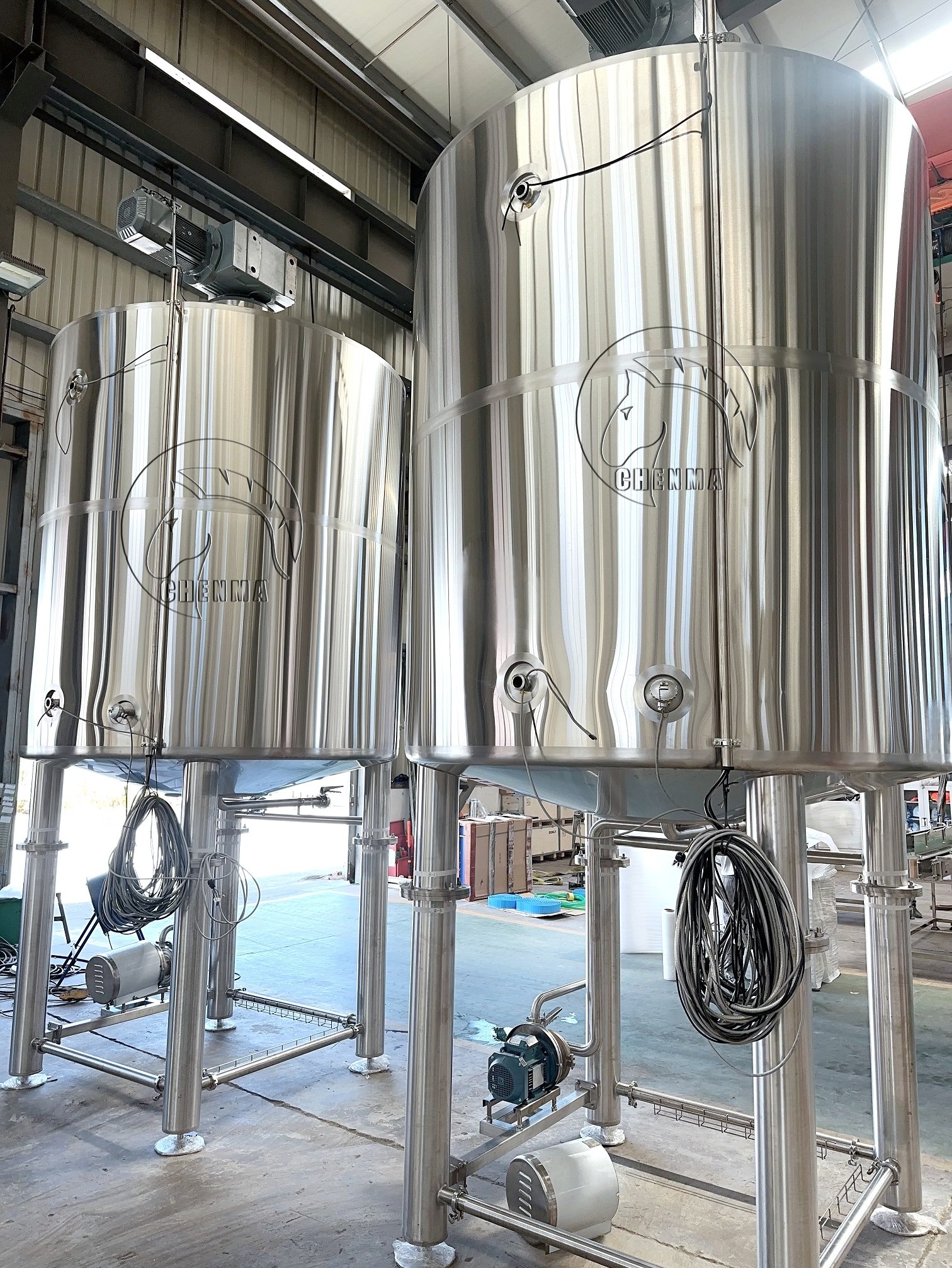

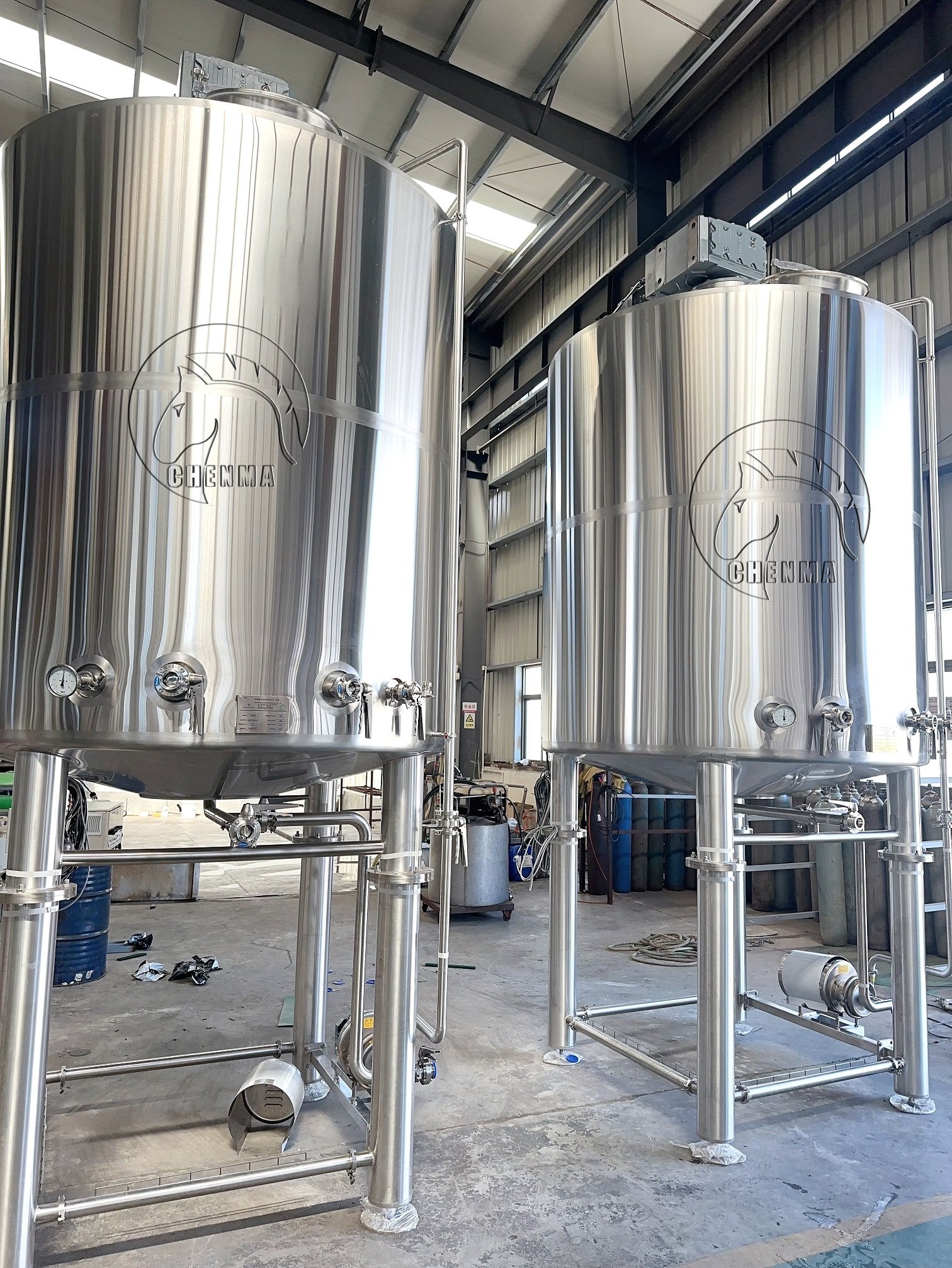

5000L Stainless Steel Honey Mixing Tank

5000L Stainless Steel Honey Mixing Tank

5000L Stainless Steel Honey Mixing Tank is a significant piece of equipment designed for medium to large-scale honey packers and processors. It’s used to create a consistent, uniform product by blending different honey batches, gently heating it to reduce crystallization, and incorporating any additives.

Specification List for 5000L Stainless Steel Honey Mixing Tank:

1.Sanitary Stainless steel 304 for cladding and thickness is 2mm, stainless steel 316L for inner body, thickness for inner body is 4mm;

2.The materials in contact with the liquid are all made of stainless steel 316L.

3.Dimension:diameter 1950mm and height 2900mm;

4.Top manway, the size for top manway:DN500mm;

5.2’’breather valve on top of tank;

6.2’’ Honey outlet and 2’’ drain outlet with butterfly valve;

7.1’’ sample valve;

8.Bimetal thermometer

9.With frame mixer, it will be mixing for honey, material is stainless steel 316L;

10.Effective capacity:5000L;

11.Conical top and conical bottom;

12.With mixer,mixing power is 5.5kw, 39r/min,with frequency conversion;

13.With sprial coil pipe to heating the honey by hot water ;

14.With side oval manway, the size:530mmx430mm;

15.The tank with aluminum silicate insulation and thickness of insulation is 100mm;

16.With PT 100 temperature sensor;

17.The tank with one control panel, it will be control the temperature for the tank and also control the agitator’s speed and agitator’s on/off;

18.With 2pcs CIP rotating spray balls;
19.Fully welded cladding;

20.Stainless steel 4pcs legs with screw assembly to adjust leg height.
