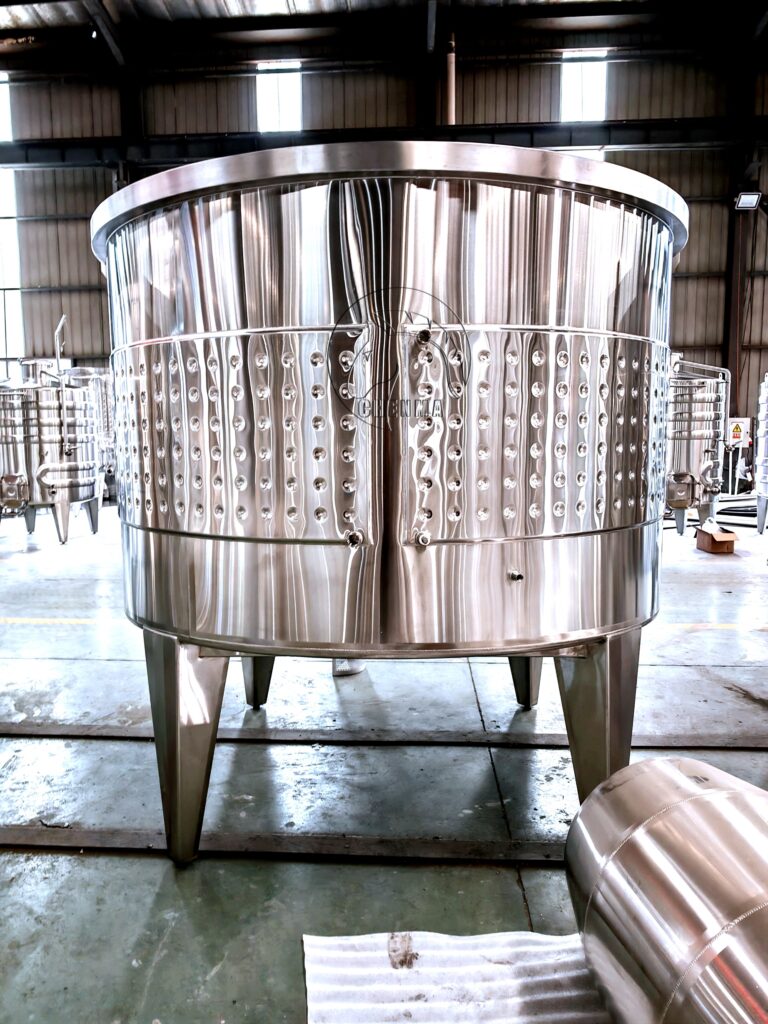

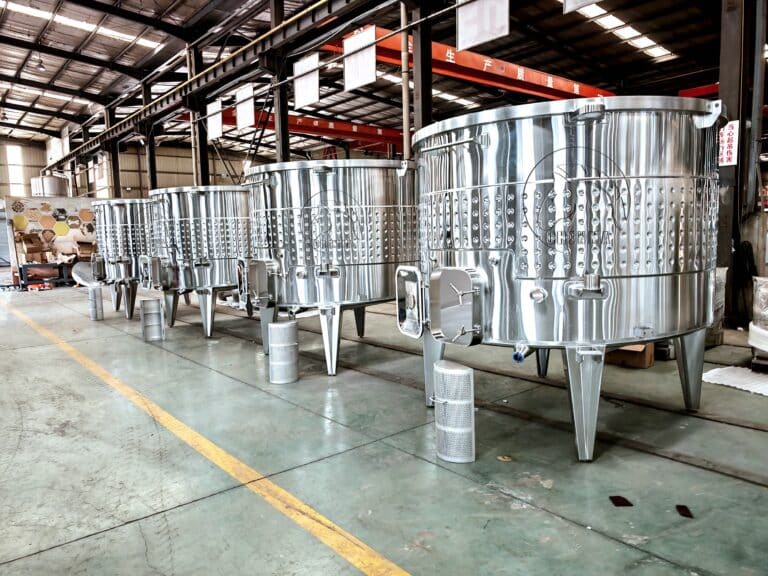

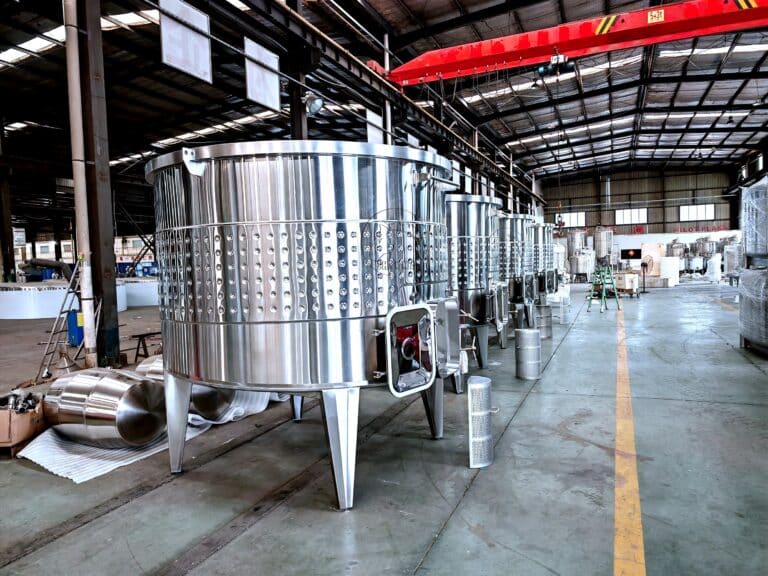

5000L Variable Volume Wine Tank
Variable volume wine tank known as a floating-lid tank, it’s a stainless steel vessel (typically 304 or 316L) designed to adapt to fluctuating liquid volumes without allowing oxygen contact, the floating lid adjusts as wine volume changes, maintaining an airtight seal.
1.Common features include:
1)Inflatable gasket with pump for seal integrity;
2)Lifting arm or winch to raise/lower the lid
3)Cooling jacket (dimple or spiral cooling jacket) for temperature control
4)Sample valves, CIP spray ball, side manway, RTD probe, butterfly valve, inclined bottom and so on.
2.Specification for 5000L variable volume wine tank as follows:
1).Sanitary Stainless steel 304;
2).Effective capacity:5000L;
3).Floating lid-with inflatable gasket and pump;
4).Flotaing lid is stainless steel 316L, and thickness is 1mm;
5). Lift arm;
6). 0.75’’Sample valve;
7).2’’Wine outlet and drain outlet assembly;
8).Dimple cooling jacket, the thickness of cooling jacket is 1.5mm;
9).Fully welded cladding;

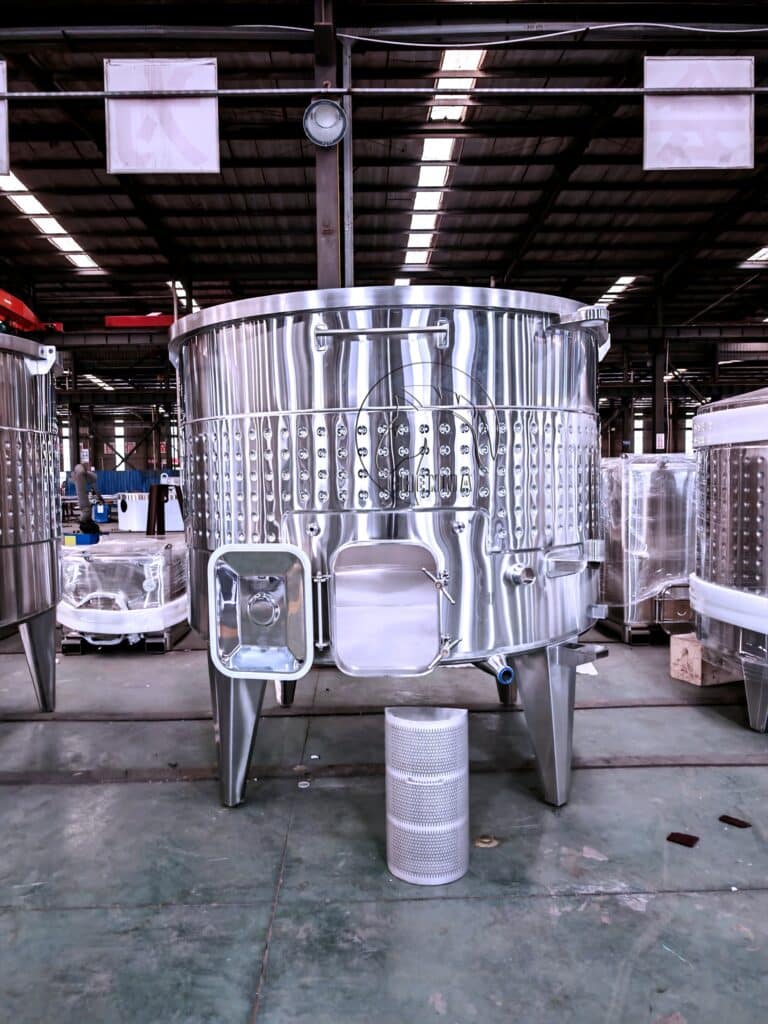

10).Side rectangle manway, size:530mmx430mm
11).RTD Probe;
12). 1’’Glycol inlet/outlet
13).Sloped flat bottom;
14).Bimetallic thermometer;
15).Tank on legs with 750mm clearance from mash door to ground level;
16).The tank’s dimension can be designed according to customer’s requirement;
17).Stainless steel legs with screw assembly to adjust leg height.
