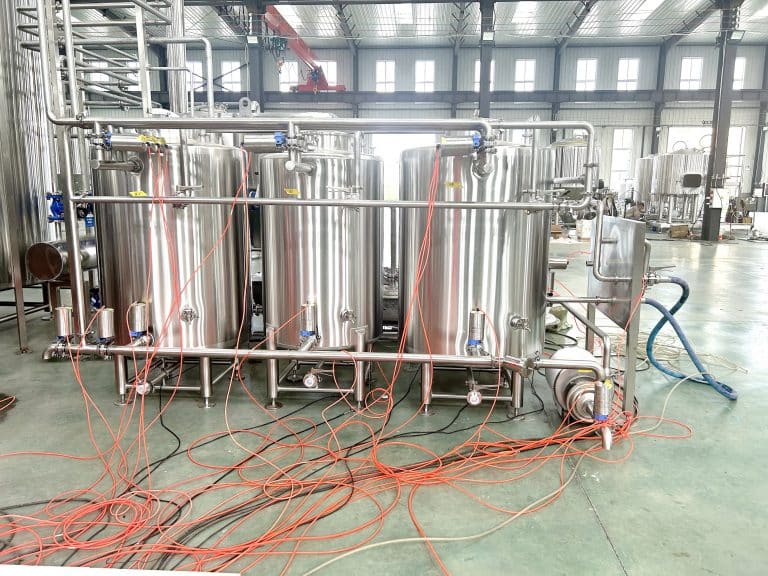

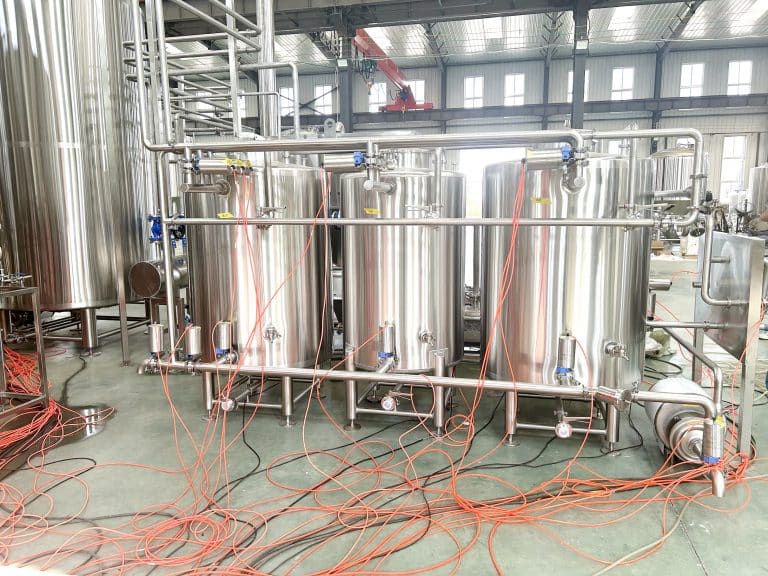

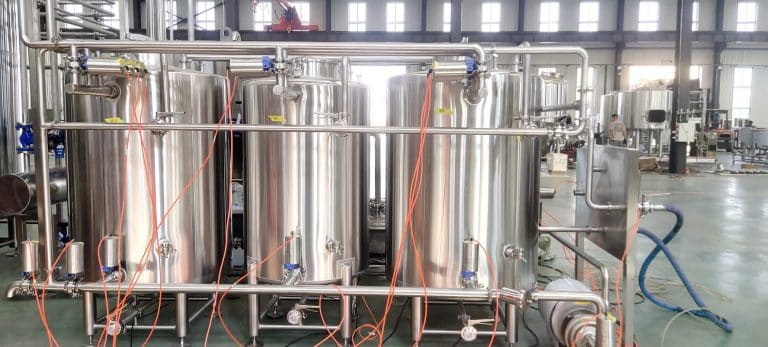

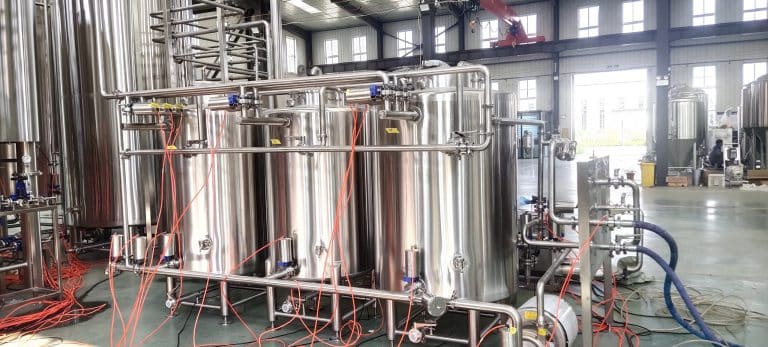

500L Semi-Automatic CIP System

500L Semi-Automatic CIP System

500L Semi-Automatic CIP System is typically designed for cleaning the interior surfaces of pipes, vessels, and process equipment in industries like food and beverage, dairy, pharmaceuticals, and chemicals. Semi-automatic systems provide a balance between manual control and automation, offering flexibility while reducing manual labor.

1.Technical parameter for the 100Gallon Semi-Automatic CIP cleaning system:

The heating way for the cleaning liquid is auto-heating.The operating principle:set the cleaning temperaturethrough the temperature controller to control the steam control valve’s opening frequency to limit the steam amount making the cleaning liquid keep at needed temperature.All the tanks liquid level in the CIP system adopt the auto-alarm.It wil be by manual when the cleaning liquid concentration reduced.The cleaning process transforming should be operated by the manually to change some relevant pipelines and valves.Artificial water replenishment is carried out when there is no water in the tank.

2.The operating principle of the 500L Semi-Automatic CIP system：

1).Auto-flow control for the cleaning solution

2).Automaticaly reglulate the temperature of the cleaning liquid.

3).Manual-compensate for the inside tank liquid level.

4).Manual-compensation for the strong acid and alkali.

5).Manual transfer from one cleaning liquid to another.

6).System auto alarm-device

3.The main equipment of the 500L semi-automatic CIP system includes:

• CIP cleaning liquid storage tanks(include acid tank,alkali tank,hot water tank, clear water tank,water recylce tank)；
• Twosingle wall tanks for strong acid/alkali;
• CIP processand return pumps；
• Two diaphragm pumps for strong acid/alkali；
• Heat exchanger(plate or tubular type);
• PLC siemens control panel;
• One set of controlling pipe and valve component；
• One set of performance componentsand parts and the electrical appliance material；
• According to the customer’s requirements，we can make the double circuit，three circuit，four circuit and so on，meanwhile we can make multi circuit operating at the same time;
• The Heating way:plate type，coil tube type，tubular type.

4.Applications for the 500L Semi-Automatic CIP system:

• Food and beverage processing (brewery, dairy, juice production)
• Pharmaceutical production
• Cosmetics and personal care industries

5.Advantages for using the 500L Semi-Automatic CIP system:

• Reduces labor costs and cleaning time.
• More consistent cleaning results than fully manual systems.
• Can integrate with existing production lines to minimize downtime.

Do you need any specific details like dimensions, materials, or pricing for our 500L semi-automatic CIP system? Welcome to consult us!
