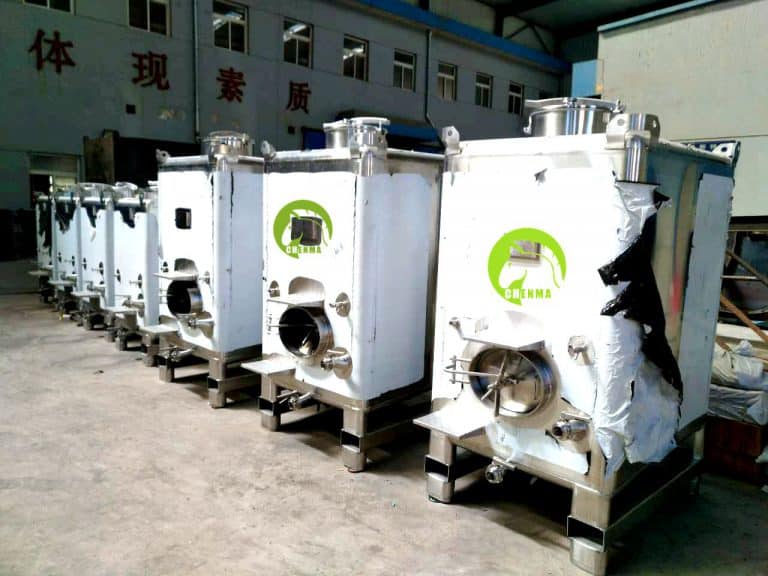

800Gallon Square Wine Fermenter Tank

As we all know, at the same footprint, a square wine fermenter tank could generate 25% more capacity than a round tank. The only issue maybe that to form a square shape, thicker stainless steel sheets need to be applied, that means more money. For wineries who are short of space and do not have abundant fund support, is there a better solution? The answer is YES. Let us investigate into this square wine fermenter.

Specification list for 800gallon square wine fermenter tank:

1.Sanitary Stainless steel 304, thickness of material:4mm;

2.Brushed stainless steel 304 or 316L;

3.Effective capacity: 800gallon;

4.Square shape ;

5.Square top;

6.Eccentric or centric top with 500mm top manway;

7.0.75″Sample valve;

8.2″Wine outlet and drain outlet assembly;

9.2″racking valve, triclamp connection;

10.Cooling jacket and thickness of cooling jacket is 1.5mm;

11.Fully welded cladding;

12.Side rectangle manway, the size for the rectangle manway is 530mmx430mm;

13.Oval side manway, the size for the oval manway is 530mmx430mm;

14.The foot pads with four holes and 15mm thick;

15.PT100 temperature probe;

16.1″Glycol inlet/outlet;

17.2” stainless steel piping for pump overs;

18.2″ Breather valve;

19.Sloped bottom;

20.Filter Screen;

21.CIP spray ball;

22.Bimetallic thermometer;

23.Stainless steel legs with screw assembly to adjust leg height.

800gallon square wine fermenter tank is a large vessel typically used in the winemaking process to ferment grape juice into wine.The square design might be chosen for space efficiency, allowing for better utilization of floor space compared to cylindrical tanks.whether you’re a small winery aiming to enhance production capabities or a wine enthusiast in search of reliable storage solution for your collection, our square wine fermenter tank sands as the perfect choice. Rely on its professional design and functionality to elevate your wine-making experiece.
