12000L Red Wine Fermentation Tank
12,000L red wine fermentation tank is a large-capacity vessel used in wineries for fermenting red wine, it is typically used in commercial wineries. these tanks are often made of stainless steel due to its durability, ease of cleaning, and resistance to corrosion and microbial contamination.
Product details

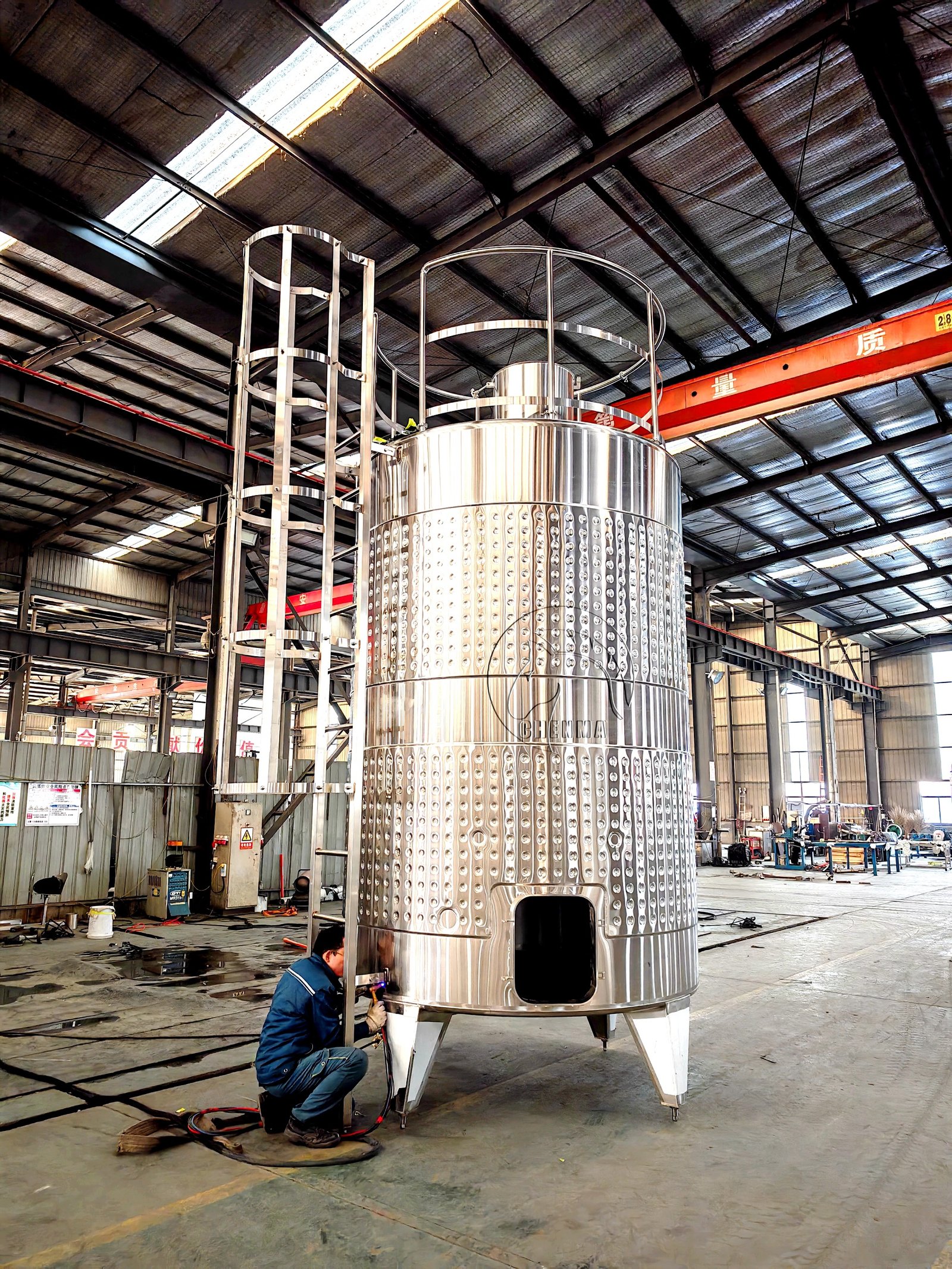

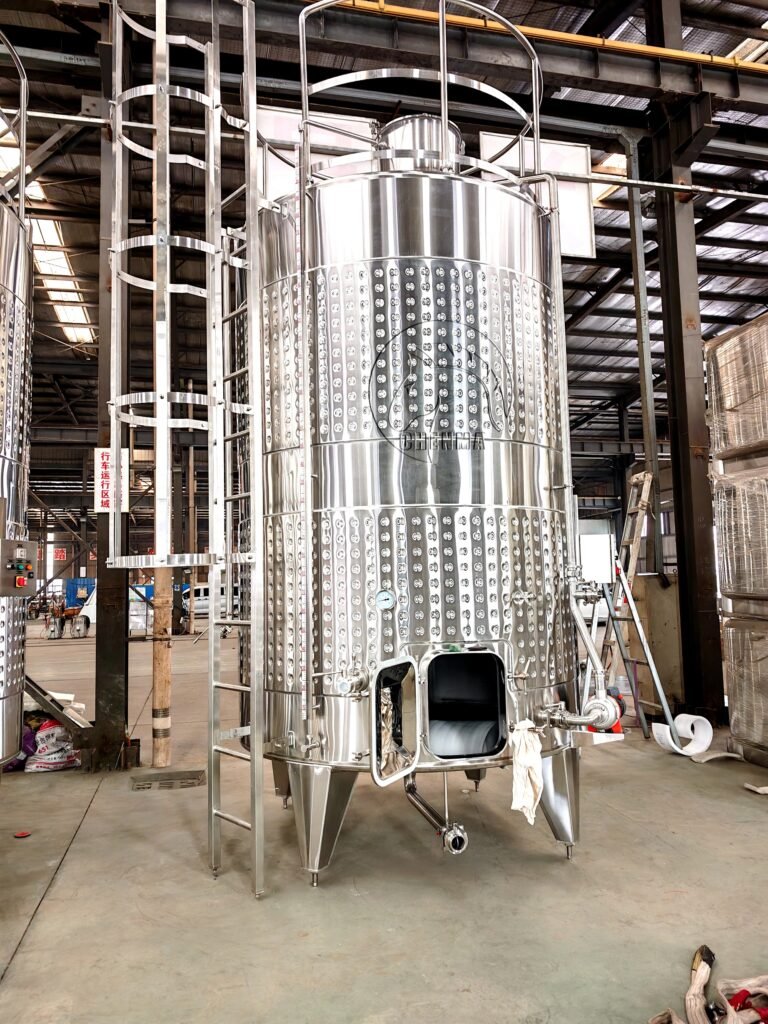

12,000L red wine fermentation tank is a large-capacity vessel used in the winemaking process to ferment grape must (crushed grapes, skins, seeds, and juice) into wine, the wine tank with ladder and guardrails.
The specification for 12000L red wine fermentation tanks as follows:
1.Food grade stainless steel 304,thickness of material:3mm;
2.Volume: 12000L;
3.Centra conical top;
4.0.75’’Sample valve;
5.CIP – rotary spray ball;
6.2’’Wine outlet and drain outlet assembly, thread connection;
7.Dimple cooling jacket;
8.Jacket inlet&outlet 1″female thread;
9. Fully welded cladding;
10.Top Manhole Cover, the size for the top manhole is DN500mm;
11.Side rectangle manway, the size for the manway is 530mmx430mm;
12.Internal welding line will be polished;
13.PT 100 Temperature Probe;
14.2″ ball valves;
15. Sloped flat bottom;
16.2″ Breather valve;
17.Lift lugs;
18.Bimetallic thermometer;
19.There is a filter screen inside of tank;
20.With liquid level guage;

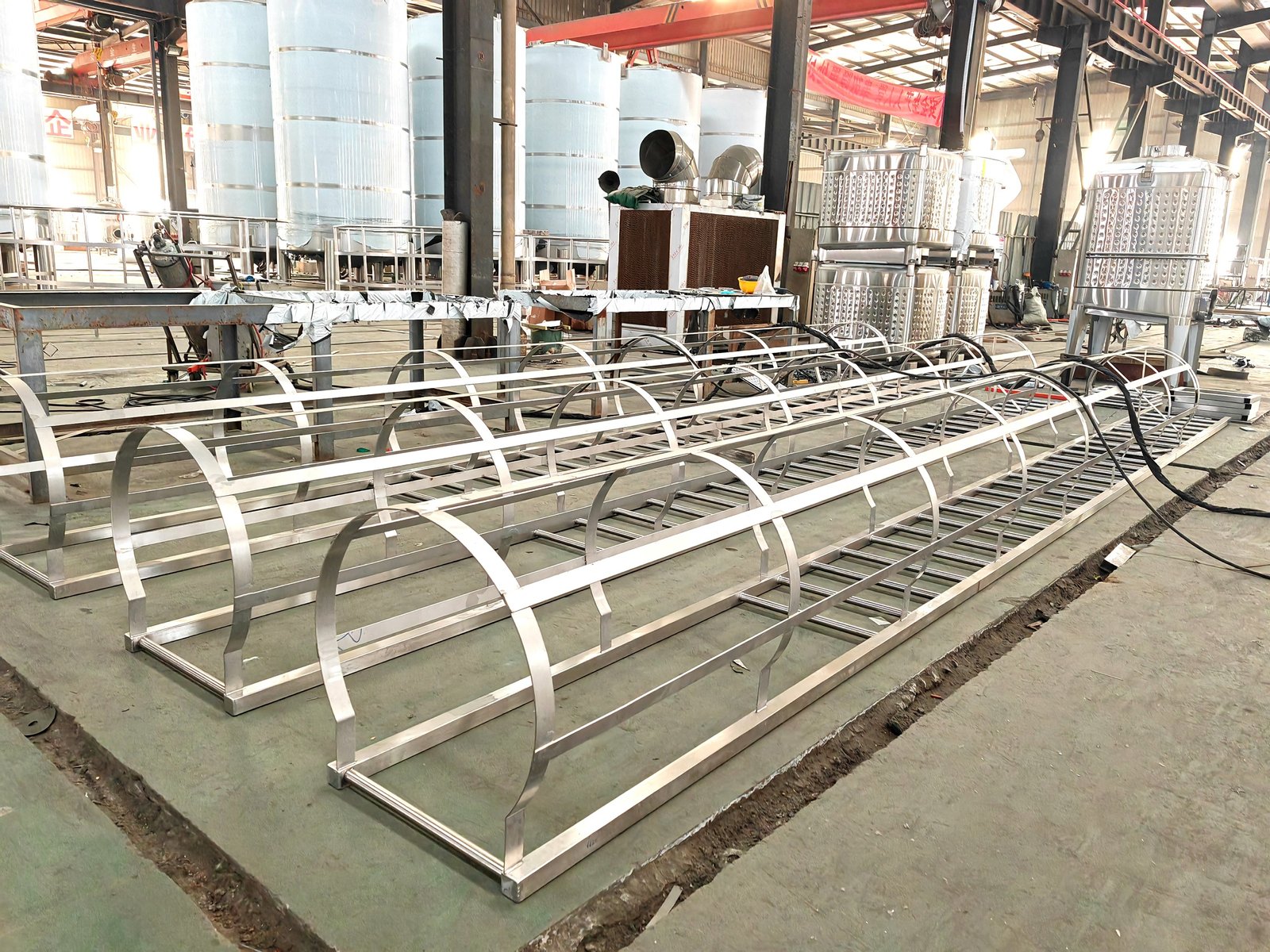

21.With ladder and guardrail;
22.Stainless steel legs with bigger and thicker base plate, with screw assembly to adjust leg height.
If you want to know more about this wine fermentation tank, please contact with me, let us talk more details!
