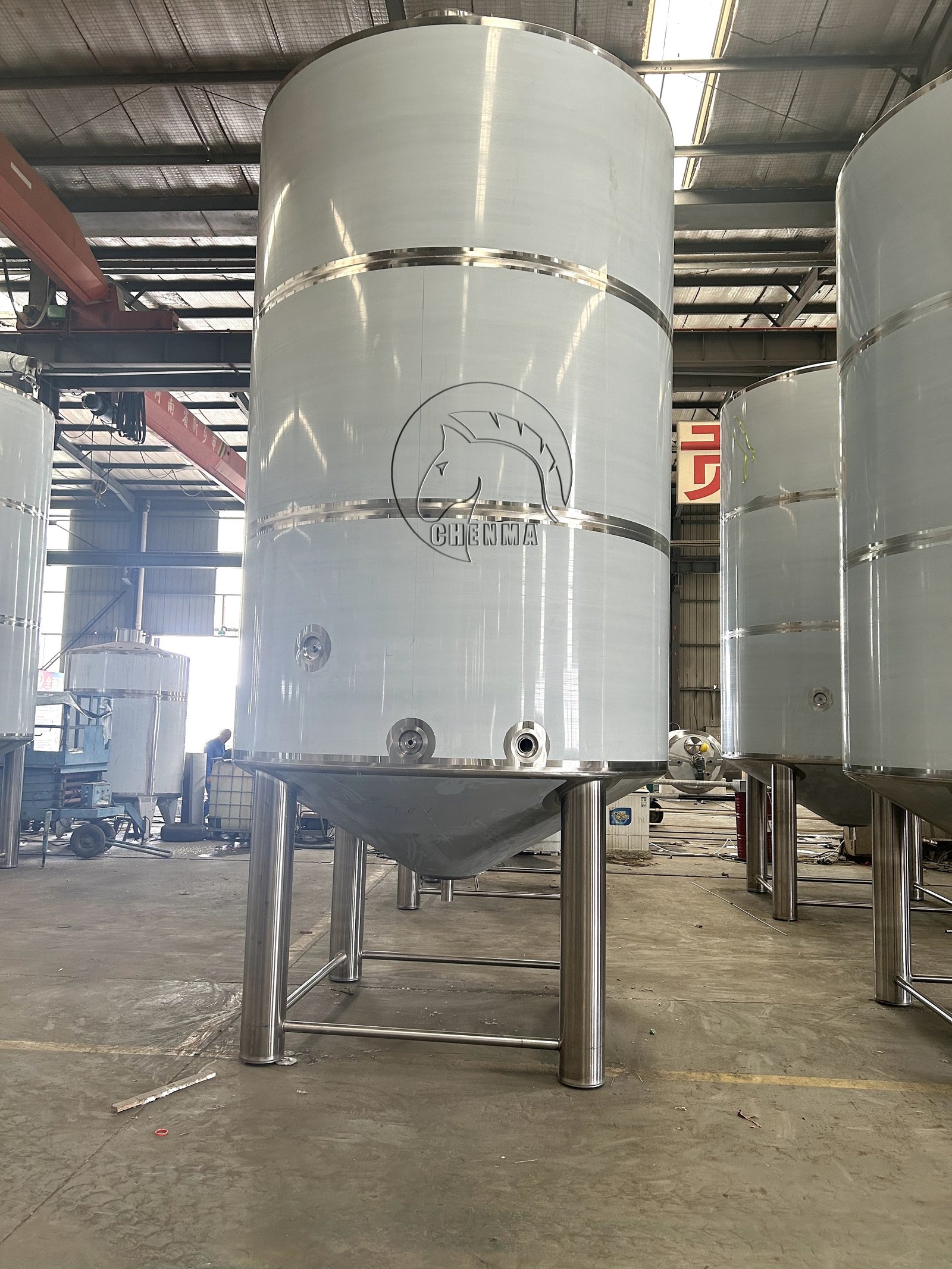

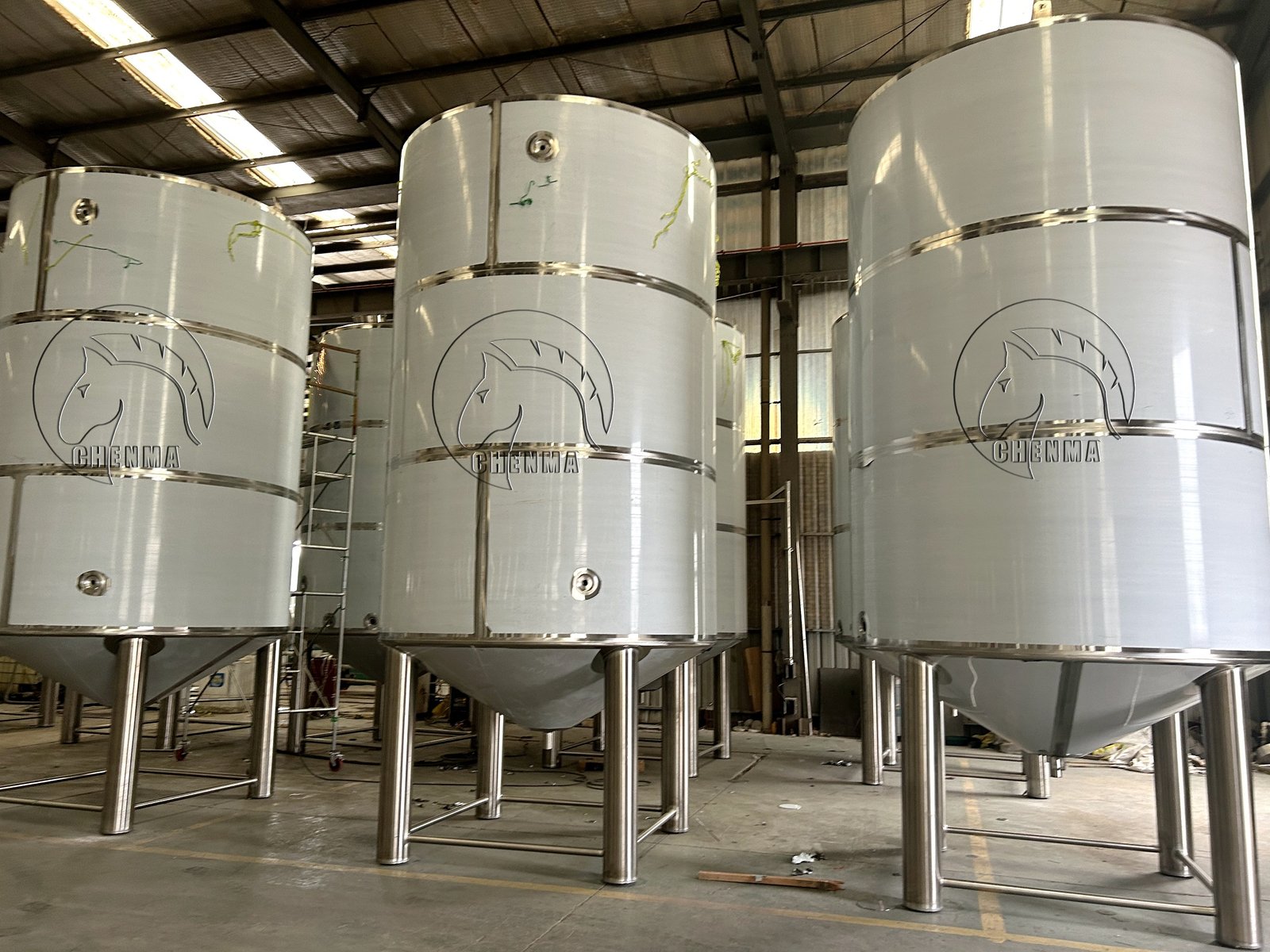

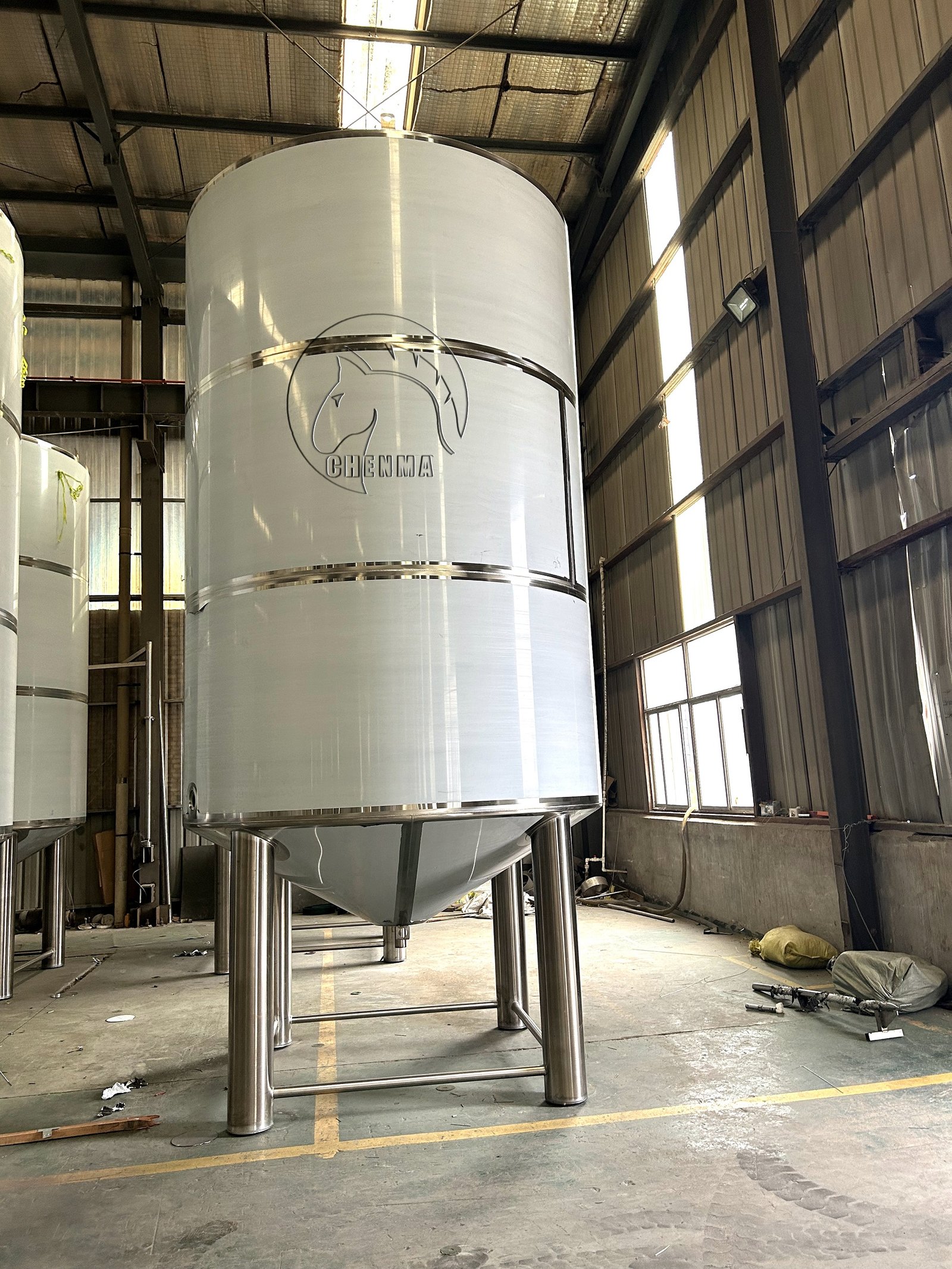

10000L Sake Storage Tank
10,000L(10tons) sake storage tank is a large-scale vessel used by commercial breweries to store, stabilize, and mature sake before bottling, these tanks are designed for efficiency, consistency, and quality control in mass production.
The specification for 10000L sake storage tanks as follows:
1.Sanitary Stainless steel 304;
2.Effective capacity: 10000L,15% top space;
3.Conical top and conical bottom, conical bottom angle is 120degree;
4.Rotary CIP spray balls and arm;
5.Surface brushed, welding line polish sanding light belt;
6.Inner body thickness 3mm, cladding thickness 2mm;
7.Double dimple plate cooling jackets(on wall and cone);
8.Polyurethane insulation, thickness:100mm;
9.Pt100 temperature sensor;
10.2’’breath valve;
11.1.5’’ sample valve;
12.2.5’’ liquid outlet with butterfly valve;
13.2.5’’ drain outlet with butterfly valve;
14.Top manway, size for the manway is DN400mm;
15.Atmospheric tank;
16.Equipped with high and low liquid level sensors;
17.Stainless steel legs with bigger and thicker base plate, with screw assembly to adjust leg height;
18.Complete with associated valves and fittings.
