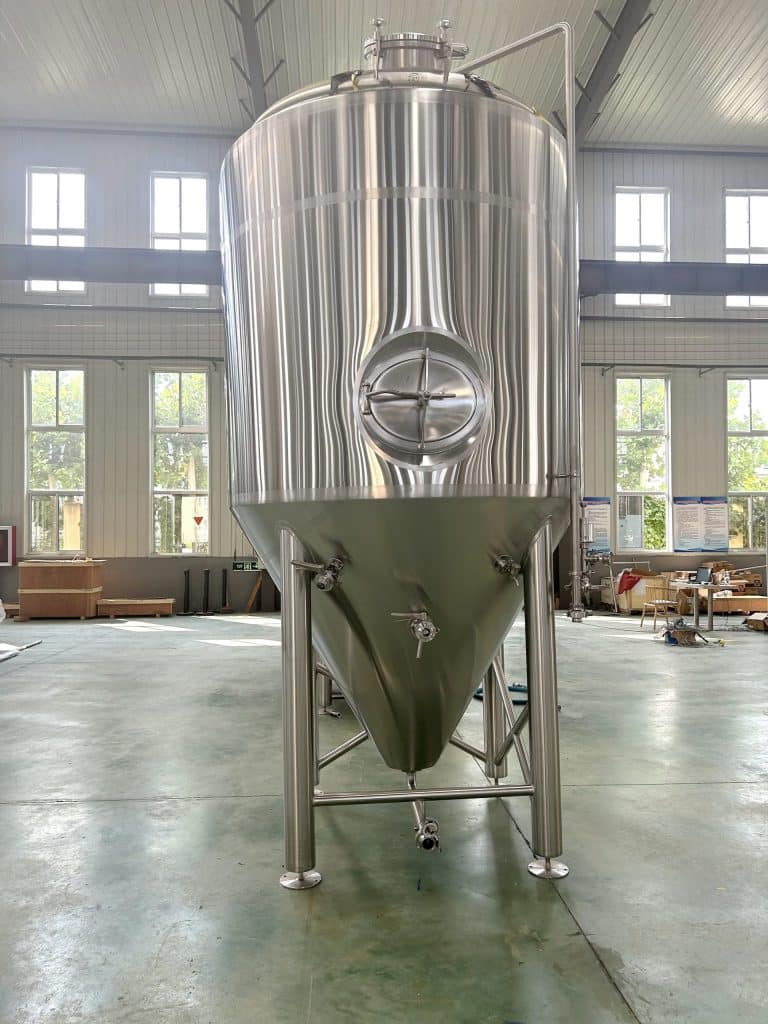

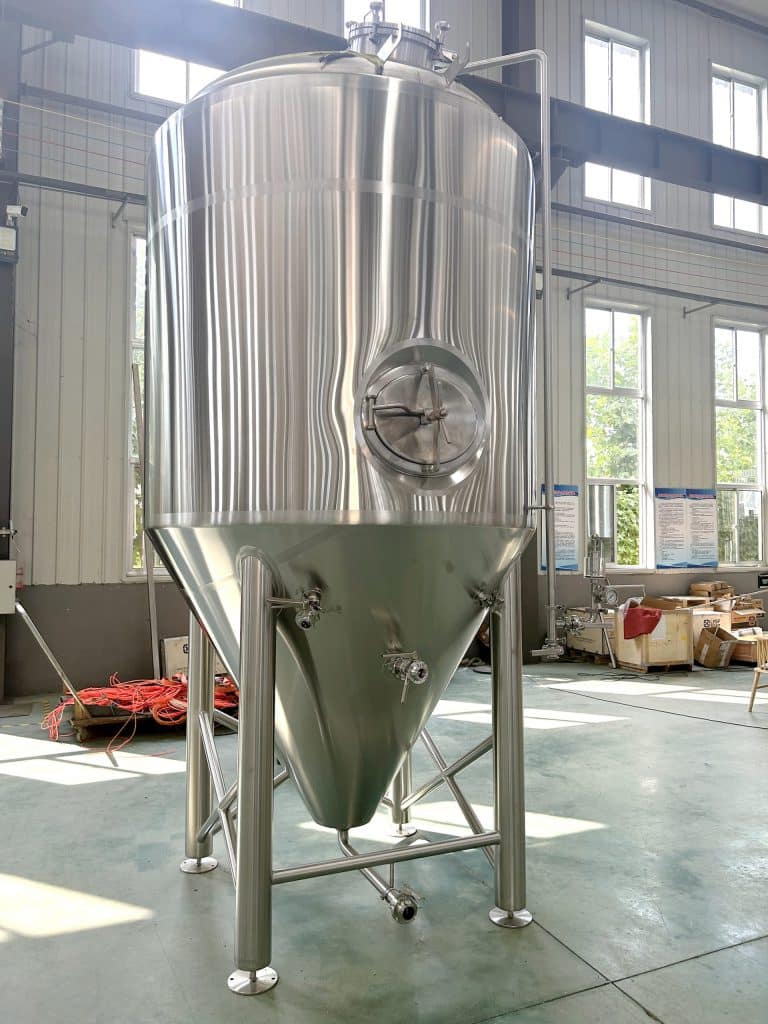

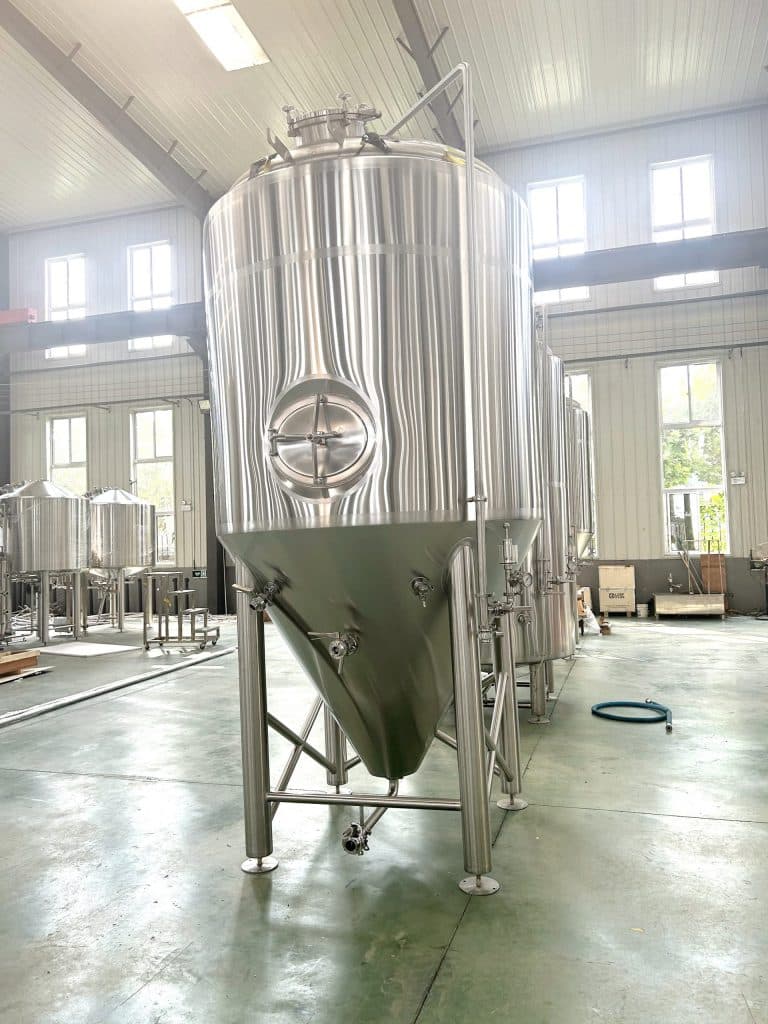

3000L Brewery Fermentation Tanks/Beer Unitank

A 3000L brewery fermentation tank, also known as a beer unitank, is a vessel designed for both the fermentation and conditioning of beer. These tanks are typically made of stainless steel and are essential for managing the brewing process.

Product details

A 3000L brewery fermentation tanks, also known as a beer unitank, is a piece of equipment used in brewing to ferment and carbonate beer.These vessels are where wort is held as it ferments into beer. FVs should allow easy flushing of yeast at the end of the process.

30bbl brewery fermentation tanks



Specification for 30bbl brewery fermentation tanks as follows:

  • 25% top space to avoid beer foam out;
  • Accommodate to brew 1/2 batches
  • 2” pressure vacuum relief valve
  • Spunding valve
  • 1.5” sample valve
  • Pressure gauge
  • CIP – rotary spray ball
  • 1.5’’CO2 blow off tube
  • Rotating racking assembly
  • 60 degree cone
  • Multiple glycol zones
  • Fully welded cladding
  • Adjustable tank leveling pads
  • Carb Stone 1.5” TC assembly
  • RTD Probe
  • 4″ or 6″Hops port
  • 1.5″or 2″ Butterfly valves
  • Tension braces on legs.

Advantage for our 30bbl brewery fermentation tanks

Certified stainless-steel material. Sanitary construction with 100% TIG welded joints and seams with sanitary interior polish. All beer unitanks and jackets inspected and pressure tested to 2 times operating pressure. All beer unitanks insulated with high efficiency polyurethane foam. We can custom fabricate any beer unitanks to meet your brewery’s space and height restrictions. Beer unitanks design pressure is 30 PSI。

Our Brewery fermentation tanks/beer unitanks are designed specifically to meet unique and diverse brewing requirements. Whether small or large volume, our knowledge of the brewing process, customization capabilities and quality craftsmanship combine to satisfy the needs of the most discerning and demanding brewers.
