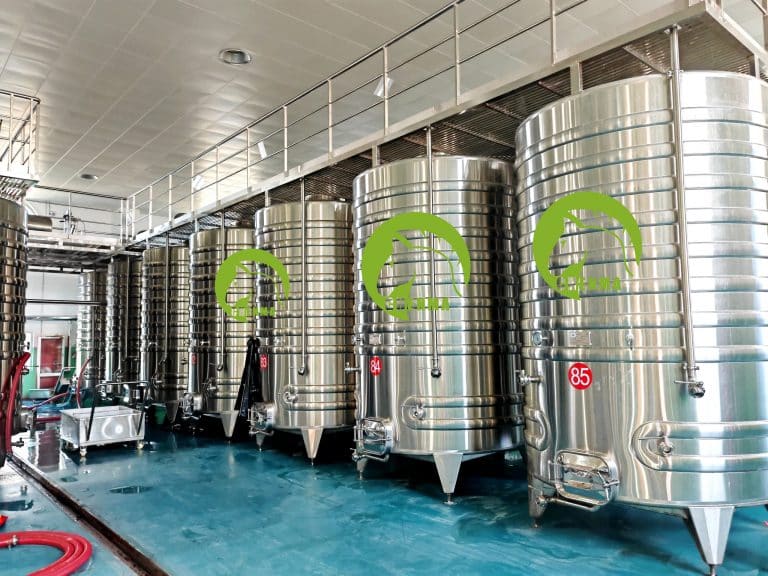

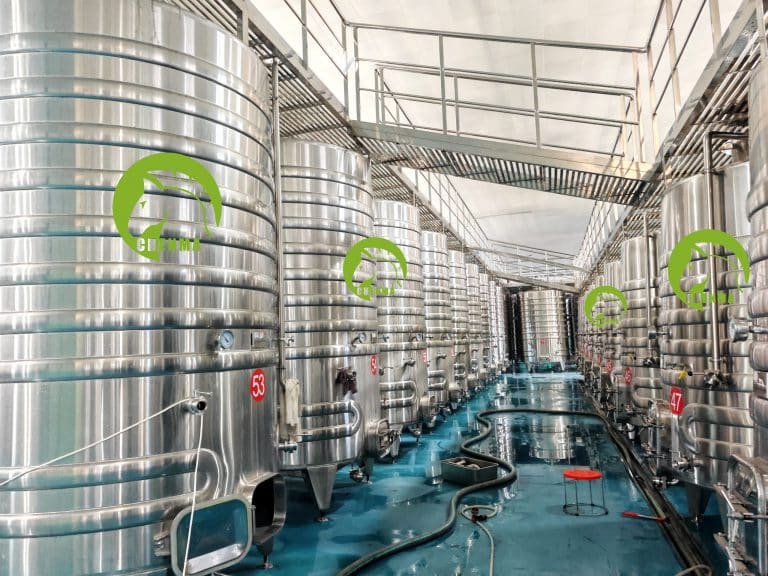

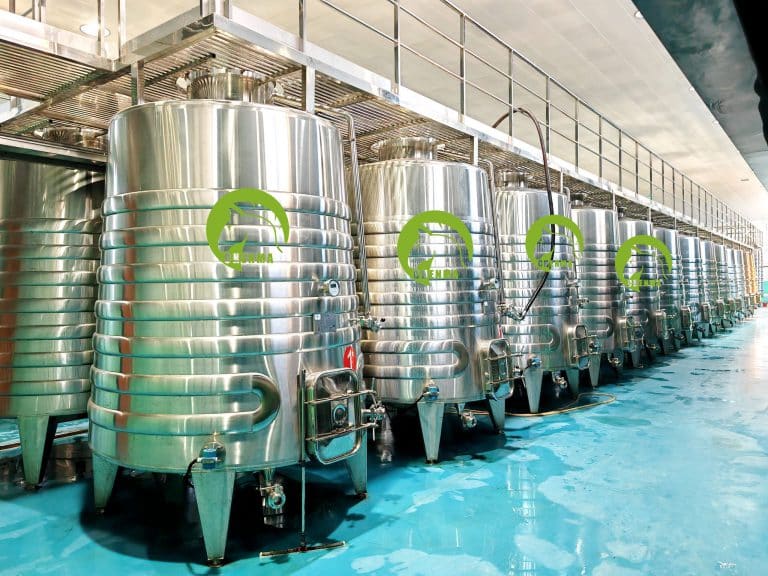

5KL and 10KL Wine Fermentation Tanks With Catwalk

5KL and 10KL Wine Fermentation Tanks With Catwalk

A 5KL(5000liter) and 10KL(10000liter) wine fermentation tanks are commonly used in winemaking for fermenting grape juice into wine,These wine tanks are often used in winemaking facilities for fermenting and storing wine, and the catwalks provide safe access for monitoring and maintenance.

1.The specification for 5KL and 10KL wine fermentation tank with channel cooling jacket as follows:

1).Sanitary Stainless steel 304, thickness of material is 2mm for 5KL wine fermenter tank and thickness of material is 3mm for 10KL wine fermentation tank;

2).Effective capacity:5000L and 10000L;

3).Conical centric top;

4).Top Manhole Cover, the size for the top manhole is DN500mm;
5).1.5″Sample valve;
6).2″Wine outlet and drain outlet assembly;

7).2″racking valve;
8).Channel cooling jacket and thickness of cooling channel jacket is 1.5mm;
9).Fully welded cladding;
10).Side rectangle manway, the size for the rectangle manway is 530mmx430mm;
11).PT100 temperature probe;
12).1’’Glycol inlet/outlet

13).2″ Breather valve;

14).Slope bottom;

15).CIP spray ball;

16).Bimetallic thermometer;

17).Stainless steel legs with screw assembly to adjust leg height;

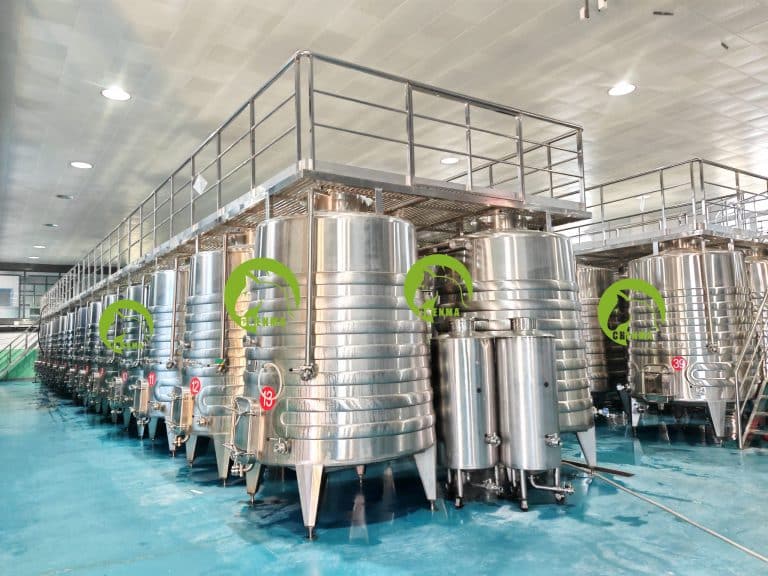

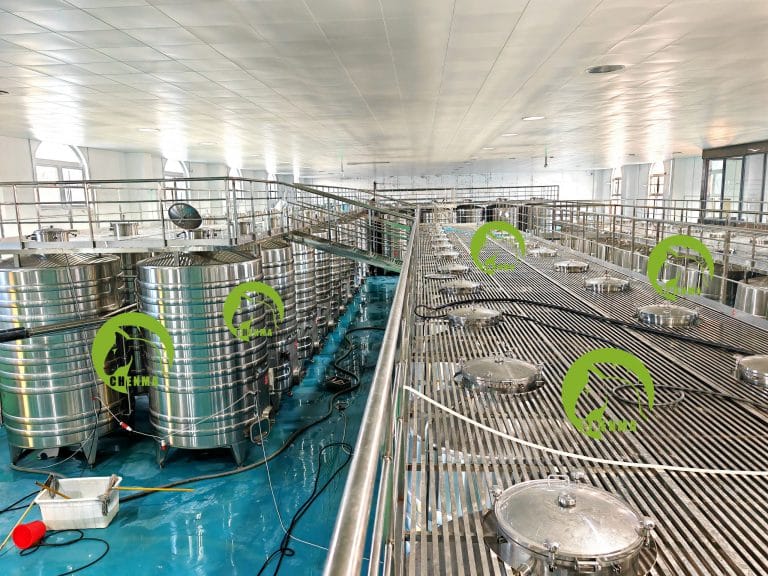

18)With non-slip  catwalk.

5KL and 10KL wine fermentation tanks with catwalk are commonly used in wineries for fermentation processes, allowing for efficient handling and monitoring of the wine as it ferments.
