Product details
Stainless steel wine tank with temperature controller
Stainless steel wine tank with a temperature controller is an essential piece of equipment for modern winemaking. It offers durability, ease of cleaning, and precise temperature management, which are critical for controlling the fermentation and storage processes.
1.The specification list for our stainess steel wine tank with temperature controller:
1).Sanitary Stainless steel 304, ;
2). Conical centric or off conical centric top;

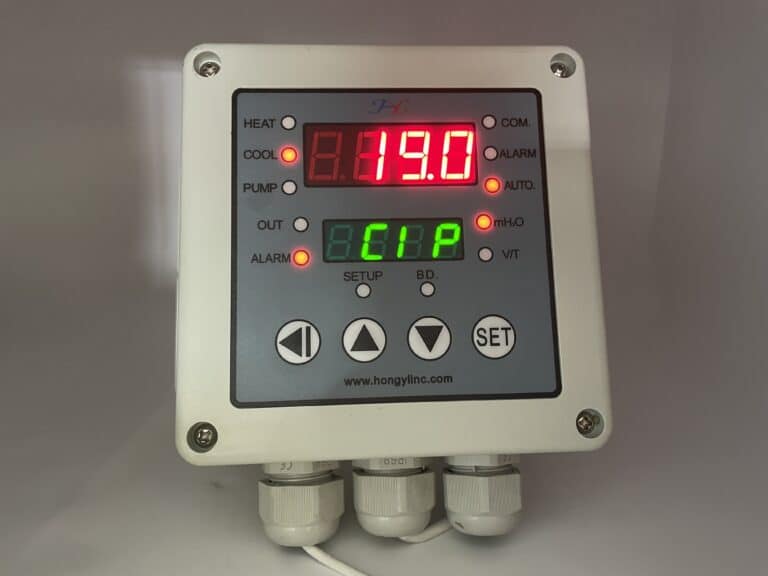

3).Every tank with one temperature instrument;
4).Top Manhole Cover, the size for the top manhole is DN400mm or DN500mm;
5).0.75″Sample valve;
6).2″Wine outlet and drain outlet assembly, Tri-clamp or BSM Male (RJT)connection;
7).2″racking valve, Tri-clamp or BSM Male(RJT)connection;
8).Dimple cooling jacket and thickness of cooling jacket is 1.5mm;
9).Fully welded cladding;
10).Side rectangle or oval manway, the size for the manway is 430mmx330mm or 530mmx430mm;
11).PT100 temperature probe;
12).1″Glycol inlet/outlet
13). 2″ Breather valve;
14).Sloped flat bottom or conical bottom;
15).CIP spray ball;
16).Bimetallic thermometer;
17).Stainless steel legs with screw assembly to adjust leg height.
2.Optional:
- Agitation systems for mixing;
- Level indicators for monitoring liquid volume;
- PU insulation.
