This Is The Great 20BBL Conical Beer Fermenter

A 20BBL conical beer fermenter is a substantial piece of equipment used in commercial brewing operations. Given that 1 barrel is equivalent to approximately 31 gallons or 117 liters, a 20BBL fermenter has a capacity of about 620 gallons or roughly 2340 liters.

Product details

20BBL Conical Beer Fermenter

20BBL conical beer fermenter is a key piece of equipment for medium to large-scale brewing operations. It’s a cylindrical tank with a conical bottom, designed for fermenting and conditioning during the brewing process.

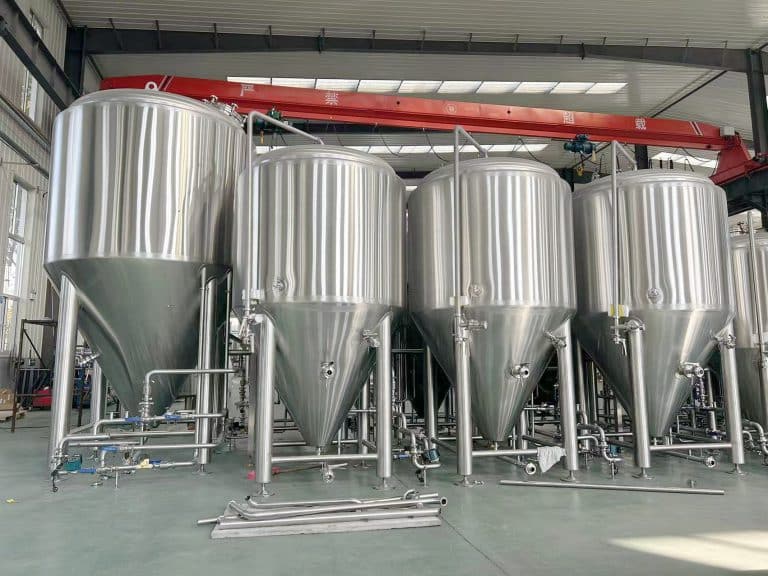

20bbl conical beer fermenter



Advantage:

Certified stainless-steel material. Sanitary construction with 100% TIG welded joints and seams with sanitary interior polish. All tanks and jackets inspected and pressure tested to 2 times operating pressure. All tanks insulated with high efficiency polyurethane foam. We can custom fabricate any tank to meet your distillery’s space and height restrictions. Tank design pressure is 30 PSI。

Standard product features:

  • Fermentation vessel w/ 25% head space.
  • Design pressure 30psi or 2bar
  • Interior shell: SUS304, thickness 3mm.
  • Exterior shell: SUS304, thickness 2mm.
  • Interior and exterior finish bright polish to 2B, hygienic surface.
  • 60° conical cone bottom.
  • Racking port and discharge port with butterfly valve and fittings.
  • Side or Top man way door, shadowless.
  • Dimple glycol cooling jackets with glycol inlets and outlets.
  • Polyurethane foam insulation, thickness 80mm/>3” on side and bottom.
  • Fully welded exterior shell.
  • 4 legs with levelling foot pads.
  • CIP arm and spray ball.
  • Rotating racking arm.
  • Vacuum relief at 2bar.
  • Pressure relief valve at 30psi as standard.
  • Sanitary pressure gauge.
  • Perlick style sample valve.
  • Tank complete with fittings, valves, and all parts.
  • Lifting Lugs.
  • P100 temperature sensor.
  • 5’’carbonation stone.
  • 24V DC liquid solenoid valve.

OPTIONS:

  • Additional blow off pipework.
  • Larger drain ports.
  • Tangential inlets.
  • Glycol pipework.
