Knowing the weight of a 1,000-gallon steel tank matters before you move, install, or even choose the right one. If you get it wrong, it can affect transport planning, equipment selection, and overall project safety.
A 1,000-gallon steel tank typically weighs around 300–800 pounds when empty, depending on its design and wall thickness. When filled with water, the total weight increases to approximately 8,700–10,000+ pounds.
Key Takeaways
- A standard 1,000-gallon steel tank typically weighs 300–800 pounds when empty, depending on design and wall thickness
- 1,000 gallons of pure water weighs exactly 8,345 pounds (industry universal value)
- Full loaded weight ranges from 8,845–10,368 pounds (empty tank + water)
- Weight varies most by wall thickness, steel grade, and additional features
- Use the surface area × thickness × steel density formula to estimate empty weight
- Always verify exact weight with the manufacturer’s technical data sheet before transport
- Accurate weight information is essential for safe foundation design and installation
Average Weight of a 1000 Gallon Steel Tank
Typical Weight Range
Most standard single-wall 1,000-gallon steel water tanks typically weigh around 300–800 pounds when empty, with many common models falling in the 500–800 pound range. When filled with water, the total weight increases significantly.
| Condition | Exact Weight (lbs) |
|---|---|
| Empty (standard single-wall) | 500–800 |
| Water only (1,000 gallons) | 8,345 |
| Total Loaded (standard) | 8,845–9,145 |
| Total Loaded (heavy-duty) | 9,845–10,368 |
Weight by Tank Type
Different tank designs and applications have significantly different weights:
| Tank Type | Empty Weight Range (lbs) | Typical Wall Thickness | Primary Application |
|---|---|---|---|
| Light Galvanized Water Tank | 375–600 | 12–14 gauge | Residential/small commercial water storage |
| Standard Carbon Steel Tank | 500–1,000 | 10–12 gauge | General industrial water/non-corrosive liquid storage |
| Skid-Mounted Steel Tank | 900–1,300 | 10 gauge + steel skid base | Portable industrial storage |
| Double-Wall Insulated Fire Tank | 1,500–2,023 | 10 gauge inner/outer walls + thermal insulation | Flammable liquid/chemical storage |
| Wine Fermentation Tank | 1,600–2,200 | 8–10 gauge + cooling jacket | Beverage fermentation and temperature-controlled storage |

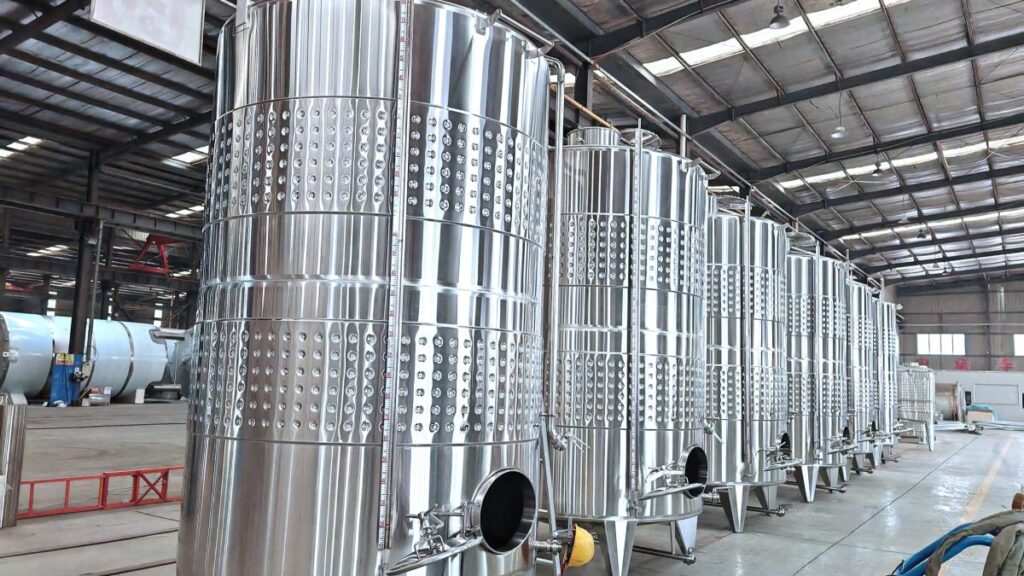

Specialized tanks like wine fermentation tanks from Shandong Chenma Machinery typically weigh 1,800–2,200 pounds empty. Their precision-engineered thick steel walls and integrated cooling jackets add 300–500 pounds compared to standard water tanks.
What Affects the Weight of a Steel Tank?
Wall Thickness and Steel Grade
Wall thickness is the single biggest factor affecting tank weight. Thicker walls use more steel and provide greater structural strength for pressurized or heavy liquid storage.
| Gauge | Exact Thickness (inches) | Typical Application |
|---|---|---|
| 14 gauge | 0.0747 | Light residential tanks |
| 12 gauge | 0.1046 | Standard commercial tanks |
| 10 gauge | 0.1345 | Heavy-duty industrial tanks |
| 8 gauge | 0.1644 | High-pressure/chemical tanks |
Taller, narrower tanks require thicker walls to handle higher internal pressure from the liquid column. High-strength steel alloys can be 10–15% lighter while maintaining the same structural integrity.
Tank Shape and Dimensions
Cylindrical tanks are generally more material-efficient, often using around 15–20% less steel than rectangular tanks of the same capacity. By contrast, shapes like L-shaped or bulk tanks are built for specific layouts or applications, but their more complex geometry usually requires additional material, which can increase overall weight.
Additional Features and Fittings
Extra features add significant weight to a steel tank:
- Double-wall insulation: Adds 600–1,000 pounds
- Integrated cooling jackets: Adds 300–600 pounds
- Steel skid base: Adds 300–500 pounds
- Ladders and safety platforms: Adds 150–300 pounds
- Custom fittings and valves: Adds 50–200 pounds
How to Estimate the Weight of a Steel Tank
Standard Calculation Formula
You can estimate the empty weight of a steel tank using a simple industry formula based on surface area, material thickness, and steel density. In practical terms, the calculation looks like this: the total surface area of the tank (in square feet) multiplied by the steel thickness (in feet), then multiplied by 490—the standard density of carbon steel in pounds per cubic foot.
Step-by-Step Example (Standard Tank)
For a common 1,000 gallon cylindrical water tank:
- Dimensions: 5 ft diameter × 10 ft length
- Wall thickness: 10 gauge = 0.1345 inches = 0.0112 ft
- Calculate surface area:
- Side area: π × 5 × 10 = 157 sq ft
- End area: 2 × π × (2.5)² = 39 sq ft
- Total area: 157 + 39 = 196 sq ft
- Calculate steel volume: 196 × 0.0112 = 2.20 cu ft
- Estimate weight: 2.20 × 490 = 1,078 pounds
Weight Estimates by Wall Thickness
| Tank Type | Wall Thickness | Approximate Empty Weight (lbs) |
|---|---|---|
| Light Galvanized Tank | 14 gauge | 450 |
| Standard Water Tank | 12 gauge | 720 |
| Standard Water Tank | 10 gauge | 1,080 |
| Skid-Mounted Tank | 10 gauge + skid | 1,400 |
| Double-Wall Insulated Tank | 10 gauge × 2 + insulation | 2,023 |
Critical Note: This is an estimate only. Always verify the exact weight with the manufacturer before planning transport or installation.
How to Find the Exact Tank Weight
Check Manufacturer Specifications
The only way to get the exact weight of your tank is to consult the manufacturer’s technical data sheet. This document will list:
- Exact empty weight (±5 lbs tolerance)
- Wall thickness and steel grade
- Dimensions and usable capacity
- Weight of all additional features
Most reputable stainless steel tank manufacturers follow recognized industry standards—such as UL-142 for certain aboveground tank applications—to help ensure consistent construction and reliable weight specifications.
A typical standard 1,000 gallon water tank will have these verified specifications:
- Volume: 1,000 gallons (usable)
- Dimensions: 111″L × 98″W × 36″H
- Empty weight: 550–560 lbs
- Price: $2,600–$2,800 (2026 market average)
Custom and Specialty Tanks
For custom tanks, it’s best to request a detailed weight breakdown directly from the manufacturer. Most reputable suppliers can provide technical specifications, including exact weight, dimensions, and structural details, which are essential for accurate planning and installation.
Conclusion
A 1,000-gallon steel tank typically weighs around 300 to over 2,000 pounds when empty, depending on its design, wall thickness, and added features. When filled with water, the total weight usually ranges from about 8,700 to over 10,000 pounds.
Knowing the exact weight is critical for safe transport, proper foundation design, and successful installation. Always use the manufacturer’s technical data sheet for the most accurate information, and never rely solely on estimates.
For high-quality custom steel tanks, including wine fermentation tanks with integrated cooling jackets, Shandong Chenma Machinery provides precise weight specifications and reliable performance for all your storage needs.
FAQ
What features add the most weight to a steel tank?
Double-wall insulation adds the most weight (600–1,000 pounds), followed by cooling jackets (300–600 pounds) and steel skid bases (300–500 pounds).
What equipment do I need to move a 1,000 gallon steel tank?
An empty 1,000 gallon steel tank requires a forklift rated for at least 3,000 pounds (1.5× safety factor). A full tank requires a crane or heavy-duty lift truck rated for at least 12,000 pounds.
How thick should a 1,000 gallon steel tank be?
- Residential use: 12–14 gauge
- Commercial general use: 10–12 gauge
- Industrial/chemical use: 8–10 gauge
Where can I find the exact weight of my steel tank?
The exact weight is listed on the manufacturer’s technical data sheet and the tank’s permanent nameplate. You can also contact the supplier directly with your tank’s serial number.
Are wine fermentation tanks heavier than standard water tanks?
Yes, wine fermentation tanks are typically 30–50% heavier. They use thicker steel walls and include integrated cooling jackets, temperature sensors, and custom fittings for fermentation control.
