High-quality milk storage tanks are a core investment for every dairy operation. Properly insulated storage helps preserve raw milk freshness, inhibit bacterial growth and meet strict global food safety standards. Selecting the right tank requires careful planning around production volume, installation conditions, material hygiene, cooling efficiency, regulatory compliance and long-term operating costs.
This buying guide covers the key factors to consider when choosing a milk storage tank, helping dairy owners and facility managers select a solution that meets current production needs and supports future business expansion.
Key Takeaways
- Calculate storage capacity based on peak daily milk yield and reserve extra buffer space to avoid overflow risks.
- Choose vertical or horizontal tanks according to available floor space, ceiling height and expansion plans.
- Food-grade stainless steel (304 or 316L) remains the industry standard for sanitation, corrosion resistance and long service life.
- Prioritize reliable insulation, stable temperature control and gentle agitation to prevent cream separation and milk spoilage.
- Verify that tank design complies with local food safety standards such as FDA, EU food contact regulations and ISO hygiene requirements.
- Partner with reputable manufacturers that offer complete installation guidance, formal warranties and ongoing technical support.
Calculate Milk Storage Tank Capacity Based on Your Production
Estimate Daily Milk Output
Many dairies size tanks using average milk production data, which creates risks during peak production seasons such as spring flush. Always calculate capacity based on your maximum daily yield.
Record milk volume from each milking session to obtain accurate 24-hour production data. We recommend reserving 20–30% extra capacity to cope with milk collection delays and herd expansion.
Standard Tank Sizing Reference
| Dairy Operation Size | Tank Volume (Gallons) | Tank Volume (Liters) |
|---|---|---|
| Small Dairy | 30–400 | 115–1,500 |
| Medium Dairy | 400–2,000 | 1,500–7,500 |
| Large Commercial Dairy | 2,000–8,000 | 7,500–30,000 |
CHENMA offers customizable milk storage tank options for every business size. Their tanks fit small, medium, and large dairies. Owners can pick a tank that matches their needs and plan for expansion.
Important Note: An undersized tank leads to overflow and milk waste. An oversized tank wastes energy cooling partial loads and raises unnecessary upfront investment.
Select the Right Milk Storage Tank Type and Installation Layout

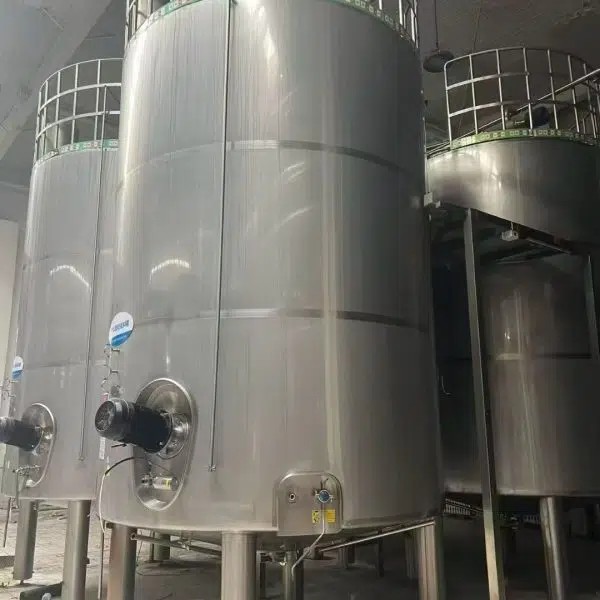

Vertical vs Horizontal Milk Storage Tanks
| Aspect | Vertical Tanks | Horizontal Tanks |
|---|---|---|
| Floor Footprint | Compact, saves floor space | Requires larger indoor space |
| Initial Investment | Higher upfront cost | Lower initial price |
| Expansion Potential | Excellent, easy to add extra silos | Less flexible for future scaling |
| Best Application | Facilities with limited indoor space | Dairies with dedicated large tank rooms |
Indoor vs Outdoor Installation
- Indoor tanks: Protected from extreme weather fluctuations, reducing the load on insulation and cooling systems.

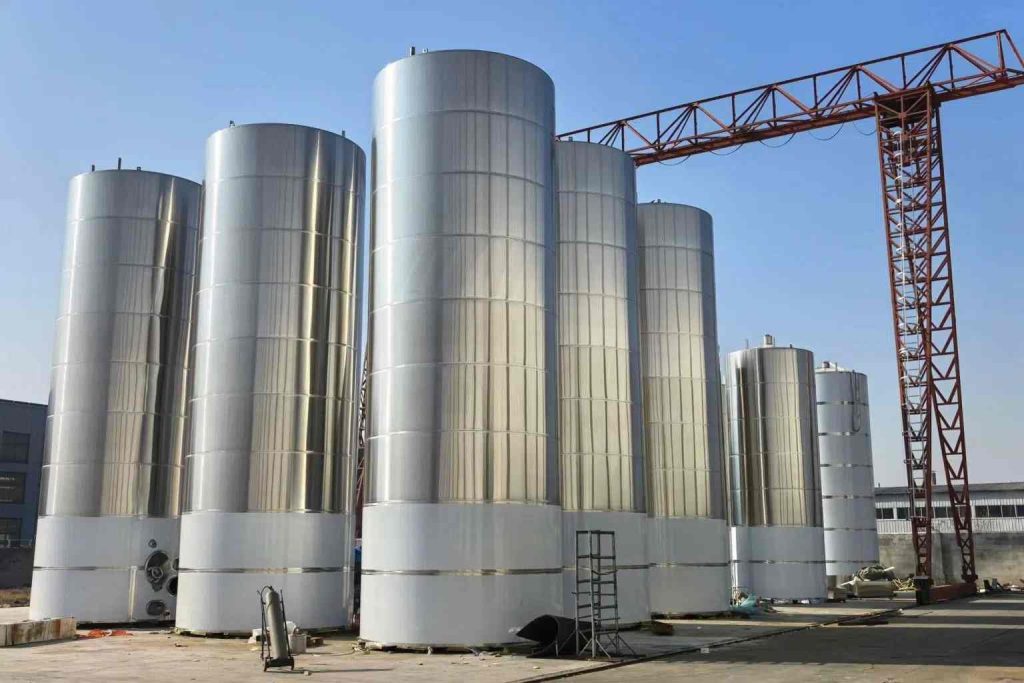

- Outdoor raw milk silos: Must adopt weatherproof construction and thick high-efficiency insulation to resist direct sunlight, rain and wide temperature swings.
Evaluate Milk Storage Tank Material Grade and Sanitary Design
Benefits of Stainless Steel Construction
Food-grade stainless steel outperforms plastic and mild carbon steel for long-term dairy storage.
- 304 Stainless Steel: Standard choice for general raw milk storage; resistant to weak organic acids and easy to sanitize.
- 316L Stainless Steel: Offers superior resistance to aggressive detergents and acidic dairy products, suitable for facilities with intensive frequent cleaning.
Top-tier manufacturers adopt pickling and passivation treatment to reinforce the steel’s anti-corrosion passive film. For hygienic performance, require an internal polished finish with Ra ≤ 0.4–0.8 μm. Smooth surfaces eliminate micro crevices where bacteria and milkstone accumulate.
Must-have Sanitation Features
- Continuous fully welded seams without internal dead zones
- Sanitary tri-clover connections
- Support for CIP (Clean-in-Place) automatic cleaning
- Sloped tank bottom for complete liquid drainage
CIP systems enable full tank sanitization without disassembly, greatly cutting cleaning labor and ensuring consistent hygiene after every milk batch.
Consider Milk Storage Tank Cooling Performance and Efficiency
Raw milk deteriorates quickly without stable low-temperature storage. Bacteria multiply rapidly above 40°F; every 10°F temperature rise doubles bacterial reproduction speed.
Core Cooling Requirements
- Thick polyurethane insulation to minimize heat ingress
- Automated temperature sensors for continuous monitoring
- Integrated cooling jackets to maintain consistent storage temperature

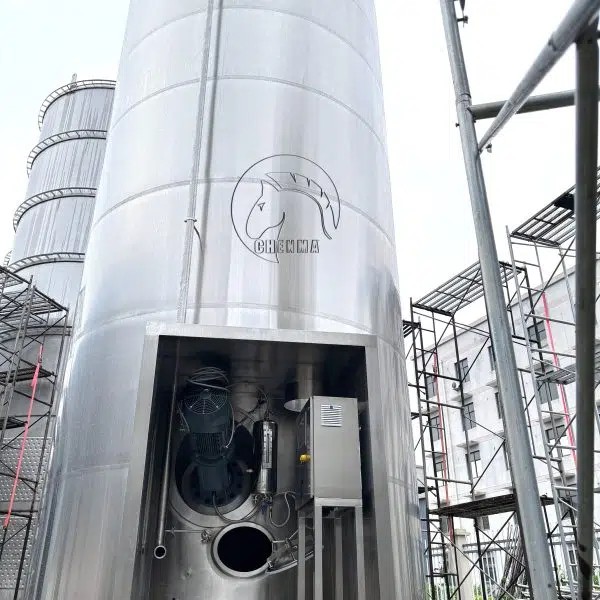

Agitation System
Select tanks equipped with gentle agitation devices. Slow, uniform mixing prevents cream separation, eliminates internal hot/cold spots and keeps milk composition consistent during long-term storage. Avoid high-speed stirring that introduces excessive air into raw milk.
Understand Milk Storage Tank Compliance Requirements and Long-Term Costs
Global Food Safety Standards Checklist
| Region | Standard | Core Requirements |
|---|---|---|
| Global | ISO 4551:2022 | Hygiene and corrosion standards for food-grade stainless steel equipment |
| European Union | Regulation (EC) No.1935/2004 | Food-contact materials cannot release harmful substances |
| United States | FDA 21 CFR Part 175.300 | Certification for stainless steel used in direct dairy contact |
Material Lifecycle Cost Comparison
| Material | Upfront Cost | Maintenance Frequency | Typical Service Life |
|---|---|---|---|
| Stainless Steel | Higher | Low | 20+ years |
| Plastic | Low | High | 3–7 years |
| Mild Carbon Steel | Medium | High | Short service life, prone to rust |
Although stainless steel requires higher initial investment, its long service life and low maintenance cost deliver better value over decades of operation. When purchasing, consider future production growth and confirm whether manufacturers support modular capacity expansion.
How to Choose a Trustworthy Tank Manufacturer
A reliable supplier provides not only equipment, but also installation guidance, technical service and formal warranty coverage. When comparing vendors, evaluate these criteria:
- Tank capacity matches your peak daily milk output
- Scalable design for business expansion
- Stable cooling performance and energy efficiency
- High-standard sanitary construction
- Compatibility with your existing cleaning workflow
- Clear warranty terms and responsive after-sales support
Quality suppliers offer differentiated customized solutions for small family dairies and large industrial processing plants alike.
FAQ
What size milk storage tank does a small dairy need?
Small dairies generally require tanks ranging from 30 to 400 gallons. Always calculate based on your peak daily milk yield and reserve extra buffer capacity.
How frequently should milk storage tanks be cleaned?
Tanks should be fully sanitized after every milk collection batch. Tanks equipped with a CIP automatic cleaning system simplify daily sanitation work effectively.
Why is stainless steel the preferred material for milk tanks?
Food-grade stainless steel (304 / 316L) offers excellent rust resistance, smooth surfaces for easy cleaning and long service life, fully meeting strict dairy food hygiene regulations.
Can I expand my dairy storage capacity later?
Yes. Many manufacturers supply customizable tanks, allowing dairies to add extra storage units gradually as milk production increases, without overhauling the whole facility.
Conclusion
Choosing a suitable milk storage tank involves multiple interconnected factors: accurate capacity planning, rational tank layout selection, hygienic stainless steel material, efficient temperature control, regulatory compliance and reliable manufacturer support.
Investing in well-designed food-grade stainless steel storage tanks protects raw milk quality, reduces spoilage losses and supports sustainable long-term dairy production.
