A tank that fits one winery perfectly may be a poor fit for another. Ceiling height, floor space, batch size, wine style, temperature requirements and growth plans all shape the ideal tank design. Standard off-the-shelf sizes work for conventional production floors, but they often force wineries to adapt their workflow around the equipment.
Custom wine tanks are engineered around your specific space and process. Dimensions, cooling systems, bottom design, fittings and access points can all be tailored to match your production workflow. This guide breaks down the pros, cons and use cases to help you decide if custom tanks are right for your winery.
Key Takeaways
- Custom wine tanks are designed to fit your available space, production capacity and specific process requirements.
- Configurable features like cooling jackets, floating lids, conical bottoms and custom fittings support different winemaking operations.
- Custom designs improve workflow efficiency and make better use of existing facility space.
- The higher upfront cost is often offset by better space utilization, fewer retrofits and greater long-term operational flexibility.
Standard vs. Custom Wine Tanks
| Factor | Standard Wine Tanks | Custom Wine Tanks |
|---|---|---|
| Upfront Cost | Lower, fixed pricing | 15–40% higher, depending on customization level |
| Lead Time | Fast (off-the-shelf or short lead times) | Longer (requires engineering + custom manufacturing) |
| Space Fit | Fits standard layouts; may waste space in unique facilities | Engineered to exact ceiling height, floor space and access constraints |
| Feature Flexibility | Fixed set of standard fittings and features | Fully configurable cooling, ports, bottoms and access points |
| Best For | Conventional wineries, stable batch sizes, standard processes | Unique facility layouts, specialized wines, variable batches, growth planning |
Core Benefits of Custom Wine Tanks
Perfect Fit for Your Facility & Space
The biggest advantage of custom tanks is that they are built to fit your winery, not the other way around.
Many older wineries have low ceilings, narrow doorways, support columns or irregular production floors. A standard tank may not fit through access points, may leave wasted space, or may require costly building modifications to install.
Custom tanks are dimensioned around your exact site constraints:
- Exact height and diameter to match ceiling clearance and floor space
- Narrow profiles to fit through existing doorways and access routes
- Custom footprints to work around columns, drains and fixed equipment
- Balanced capacity with enough clearance for cleaning, maintenance and daily operations
The goal is not to squeeze in the largest possible tank — it’s to maximize usable capacity while keeping workflow smooth and accessible.
Greater Production Flexibility
Different wine styles and winemaking methods need different tank features. Customization lets you match the tank design to your process, instead of compromising around standard features.
Common configurable options include:

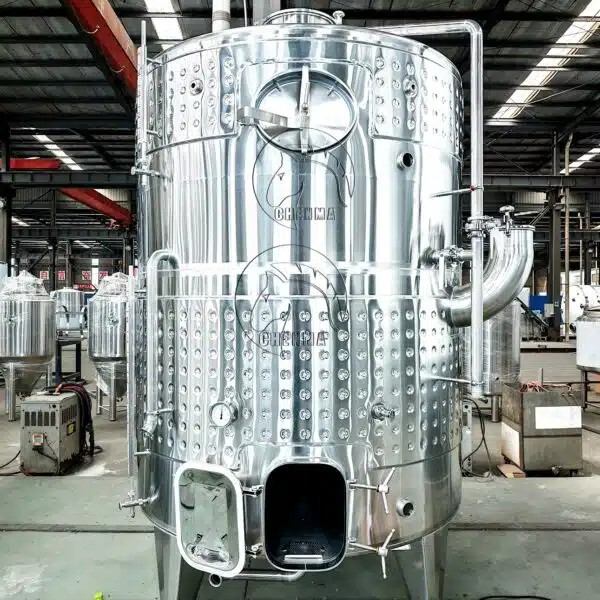

- Temperature control: Dimple jackets or full cooling wraps sized for your specific fermentation or storage cooling load, with optional insulation for extreme ambient temperatures.
- Variable capacity: Floating lid designs that reduce headspace for partial batches, ideal for small-lot wines, experimental batches and variable harvest volumes.
- Tank bottom design: Flat bottoms for long-term storage, sloped bottoms for easy draining, or conical bottoms for efficient sediment collection and removal.
- Custom ports & fittings: Positioned sample valves, racking ports, manways and CIP (clean-in-place) connections to align with your existing pumps, piping and process flow.
This level of customization is especially valuable for wineries producing multiple wine styles, working with variable harvest yields, or using specialized production techniques.
Better Long-Term Value & Lower Lifecycle Cost
Custom tanks have a higher sticker price, but purchase price is only a small part of total cost of ownership.
Improved space efficiency
For wineries where expansion is expensive or impossible, optimizing existing space is extremely valuable. A custom-sized tank can often add 20–30% more usable capacity in the same footprint compared to a poorly matched standard tank.
Fewer retrofits and modifications
Standard tanks often require aftermarket modifications, custom piping or workflow workarounds to integrate into an existing facility. These changes add cost, create sanitation risks and disrupt production. A custom tank is engineered to integrate with your existing equipment from the start.
Long service life
A well-built stainless steel tank can last 20–30+ years with proper maintenance. Over that timeframe, the upfront premium for customization becomes negligible compared to decades of improved efficiency and better process performance.
When Are Custom Tanks Worth the Extra Cost?
Custom wine tanks are usually a smart investment if any of these apply to your winery:
- Your facility has low ceilings, narrow access, support columns or an irregular layout
- You produce small-batch, experimental or high-acid wines with specialized process needs
- Your batch sizes vary significantly from vintage to vintage
- You want to maximize capacity in an existing space without building expansions
- You have a clear long-term expansion plan and want equipment that grows with you
Stick with standard tanks if:
- You have a conventional, open production floor with standard ceiling height
- Your batch sizes are stable and predictable year over year
- You have basic storage/fermentation needs with no specialized process requirements
- You need fast delivery and lower upfront cost
Conclusion
Standard-sized wine tanks are a practical, cost-effective choice for most wineries with conventional layouts and consistent production.
Custom tanks become worth the investment when standard sizes don’t fit your space, don’t match your process, or limit your ability to grow. The core advantage is simple: instead of forcing your winery to adapt to fixed equipment, you get equipment built around your workflow.
For wineries with unique facility constraints, specialized production needs or clear long-term growth plans, a custom stainless steel tank will deliver better operational efficiency and stronger lifecycle value.
FAQ
How long do custom stainless steel wine tanks last?
With proper maintenance and routine cleaning, well-manufactured stainless steel wine tanks can last 20–30 years or longer. Service life depends on material grade, weld quality, cleaning procedures and regular inspection.
Can custom wine tanks be built for limited ceiling height?
Yes. Custom tanks can be dimensioned to fit low ceilings, narrow doorways, support columns and other site-specific constraints. Height, diameter and footprint can all be adjusted to match your available space.
What custom features are most useful for winemaking?
The most valuable customizations depend on your process, but common high-impact options include cooling jackets for temperature-controlled fermentation, floating lids for variable batch sizes, conical bottoms for sediment management, and CIP-compatible fittings for efficient cleaning.
How do custom tanks reduce oxygen exposure?
Variable-capacity tanks with floating lids minimize headspace above the wine surface. This limits air contact during storage and aging, which is especially beneficial for small or partially filled batches.
Are custom wine tanks more expensive than standard ones?
Yes, typically 15–40% more upfront depending on the level of customization. However, they often deliver better long-term value by improving space utilization, eliminating retrofit costs and supporting more efficient production.
Should I choose 304 or 316 stainless steel for wine tanks?
304 stainless steel is suitable for most table wine production and standard cellar conditions. Upgrade to 316 if you produce high-acid wines, use harsh cleaning chemicals regularly, or operate in a coastal high-salt environment where corrosion risk is higher.
