Product details

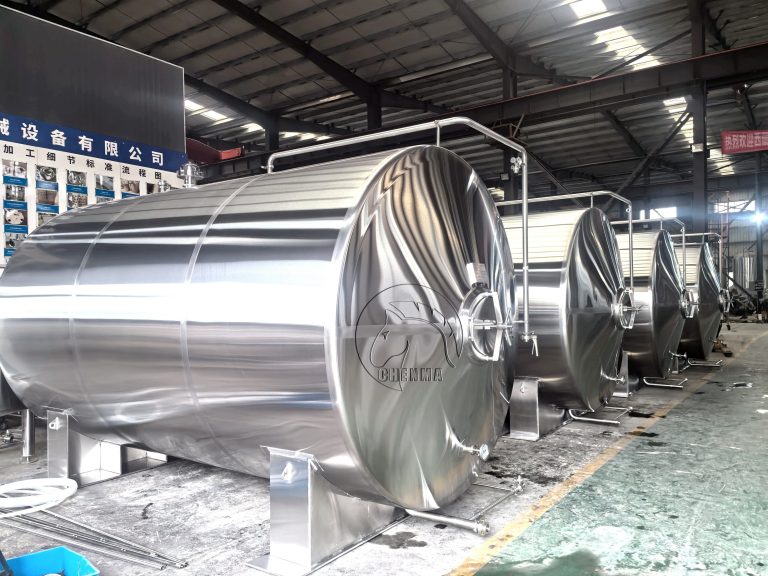

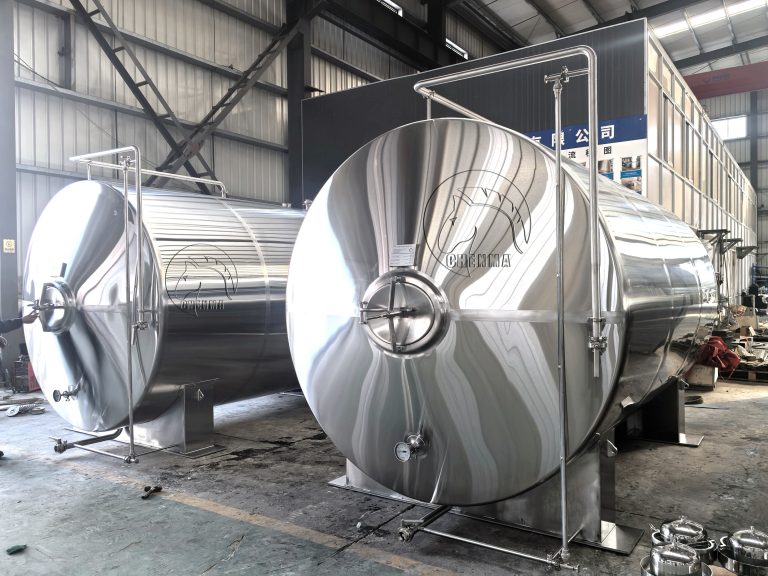

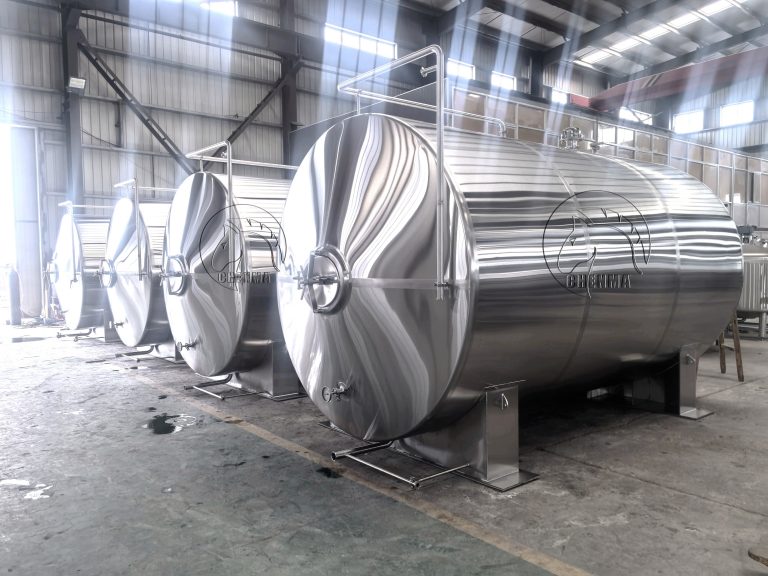

10000L Horizontal Water Storage Tank
10000 L (10 m³) / 2200 gallon stainless steel horizontal water storage tank is suitable for potable water, industrial, or agricultural use, the tank with insulation and double wall tank, it will be placed outdoor.
The specification for 10,000L stainless steel horizontal water storage tank as follows:
1.Sanitary Stainless steel 304, inside for the tank will be pickling and passivation and welding line will be polished;
2.Effective capacity:10,000L;
3.Horizontal;
4.The thickness for inner body is 4mm and cladding is 2mm;
5.The tank with insulation and thickness is 100mm;
6.Oval wanway, size:430mmx330mm ;
7.1.5″Sample valve;
8.3″ liquid outlet with butterfly valve;
9.3″ water inlet with butterfly valve;
10.2″ breather valve;
11.Fully welded cladding;
12.Bimetallic thermometer ;
13.Liquid level gauge;
14.CIP spray ball;
15.Complete with associated valves and fittings.
