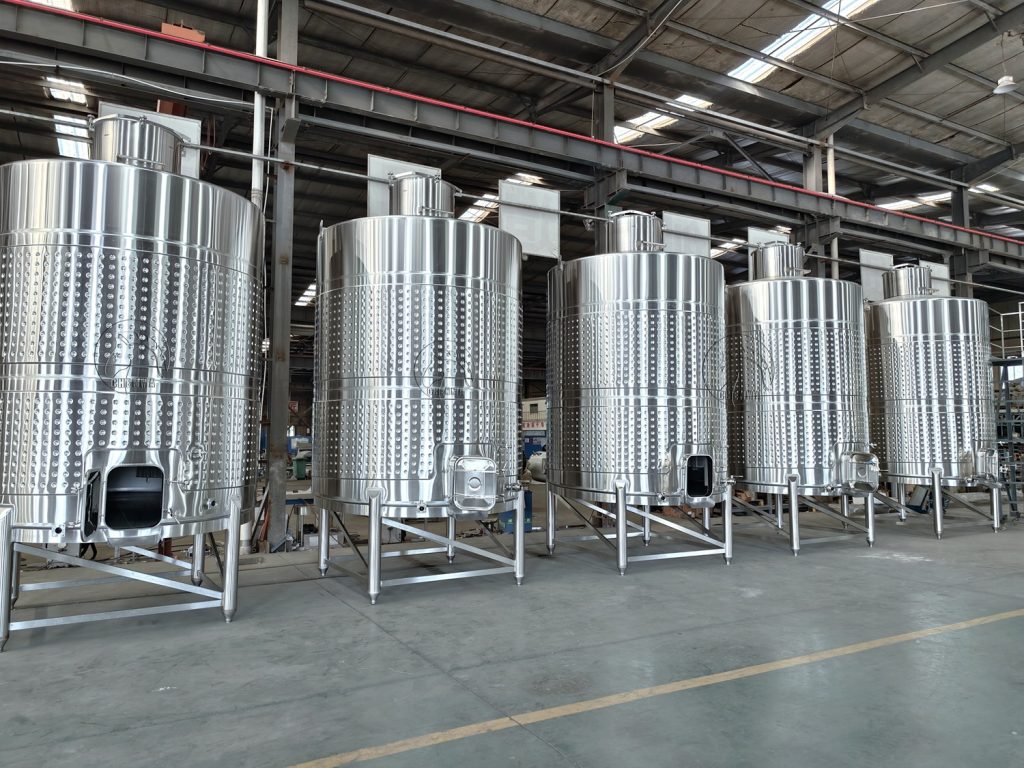

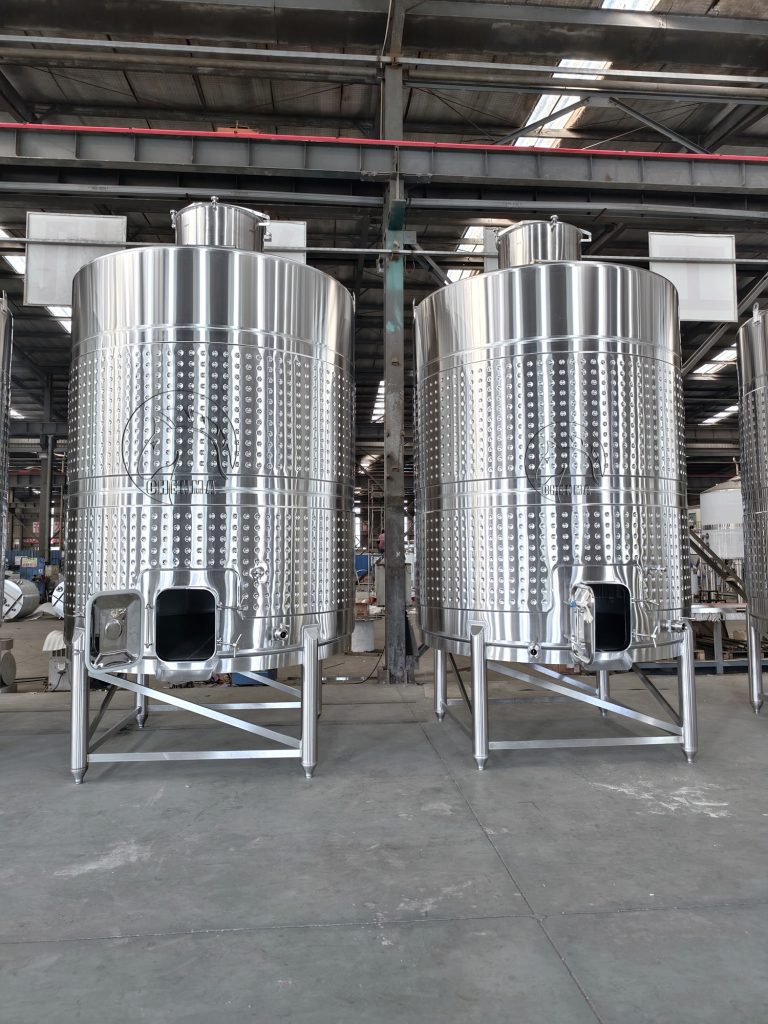

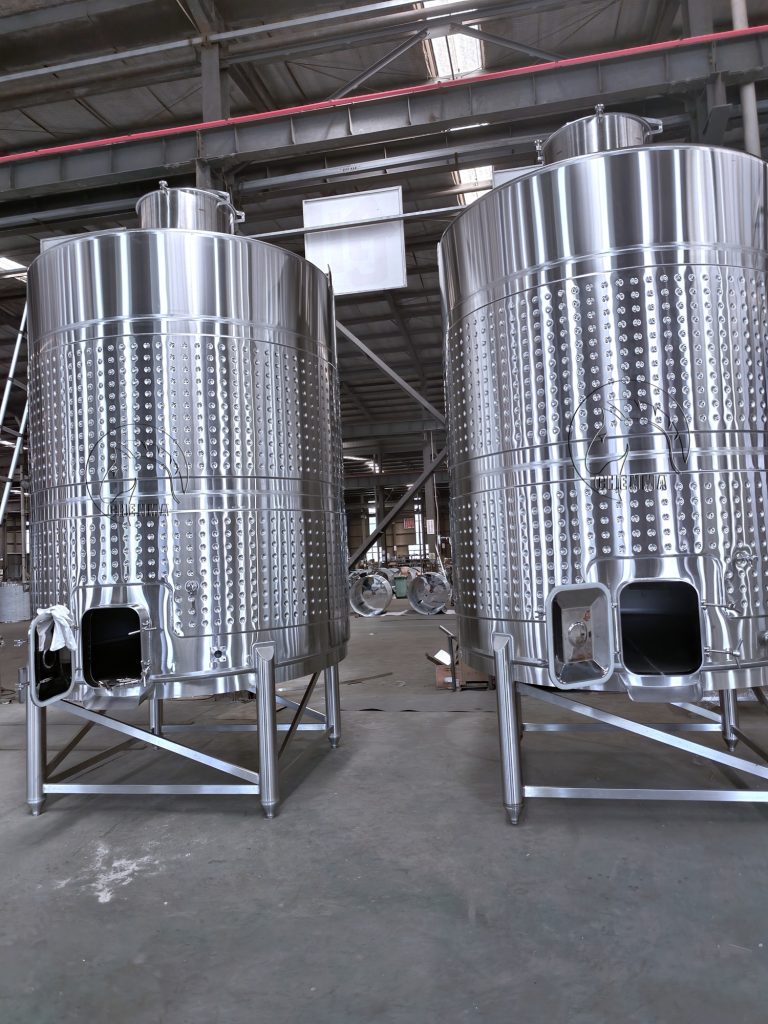

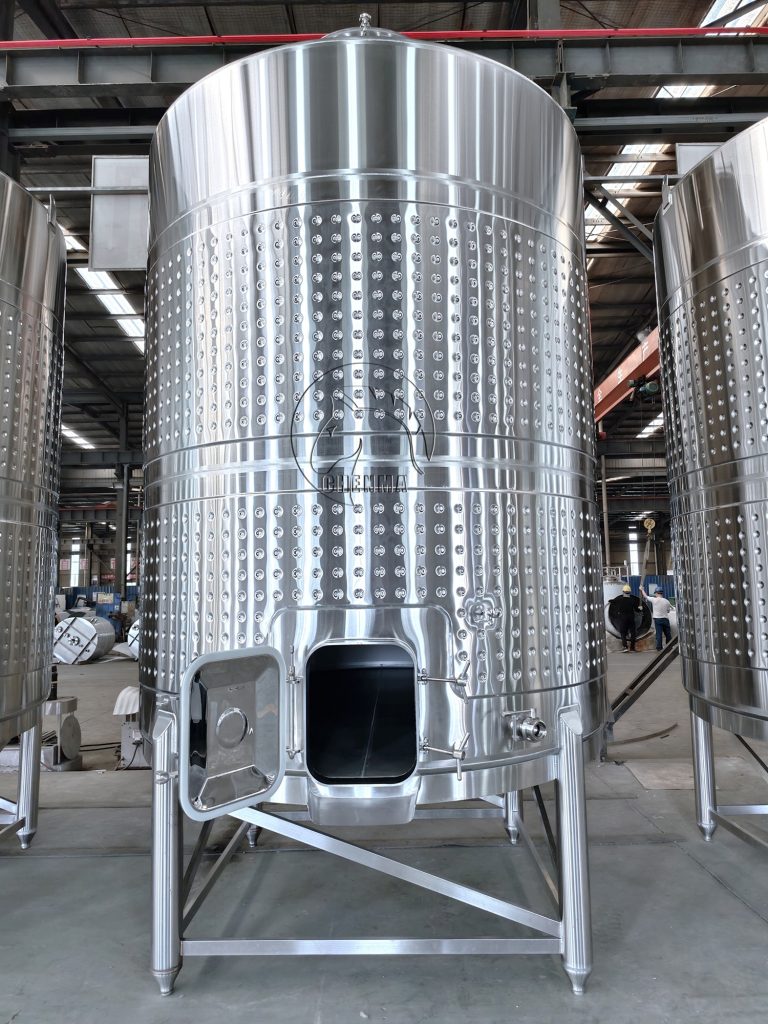

15000L Red Wine Fermentation Tank
15000L red wine fermentation tank is made of food grade stainless steel 304, It is equipped with dimple cooling jacket for precise temperature control during red wine maceration and fermentation, designed with side rectangle manway, top manhole, sampling port, racking outlet and CIP cleaning ball, widely used in commercial wineries for red wine, fruit wine fermentation and storage.
Product details
15,000L Red Wine Fermentation Tank
15,000L stainless steel red wine fermentation tank is designed for professional wineries and large-scale red wine production. It provides efficient fermentation, temperature control, and convenient cleaning while maintaining sanitary conditions throughout the winemaking process, Ideal for wineries, vineyards and commercial wine production facilities.
1.Sanitary Stainless steel 304,inside for the tank will be pickling and passivation and internal welding line will be polished;
2.Surface brushed, welding line polish sanding light belt;
3.Material thickness is 4mm;
4.Effective capacity:15,000L;
5.Diameter is 2260mm, height is 5230mm;
6.Conical centric top;
7.Top Manhole Cover, the size for the top manhole is DN500mm;
8.1″Sample valve;
9.3″ drain outlet assembly, with butterfly valve, with sump 150mm wide x 250mm long;
10.2″racking valve, with butterfly valve;
11.Dimple cooling jacket and thickness of cooling jacket is 1.5mm;
12.Fully welded cladding;
13.Side rectangle manway, the size for the manway is 530mmx430mm;
14.PT100 temperature probe;
15.1″Glycol inlet/outlet;
16.2″Breather valve;
17.Sloped bottom, 5 degrees;
18.CIP spray ball;
19.Bimetallic thermometer;
20.Stainless steel legs,with bigger and thicker base plate, with screw assembly to adjust leg height;
21.Complete with associated valves and fittings.
