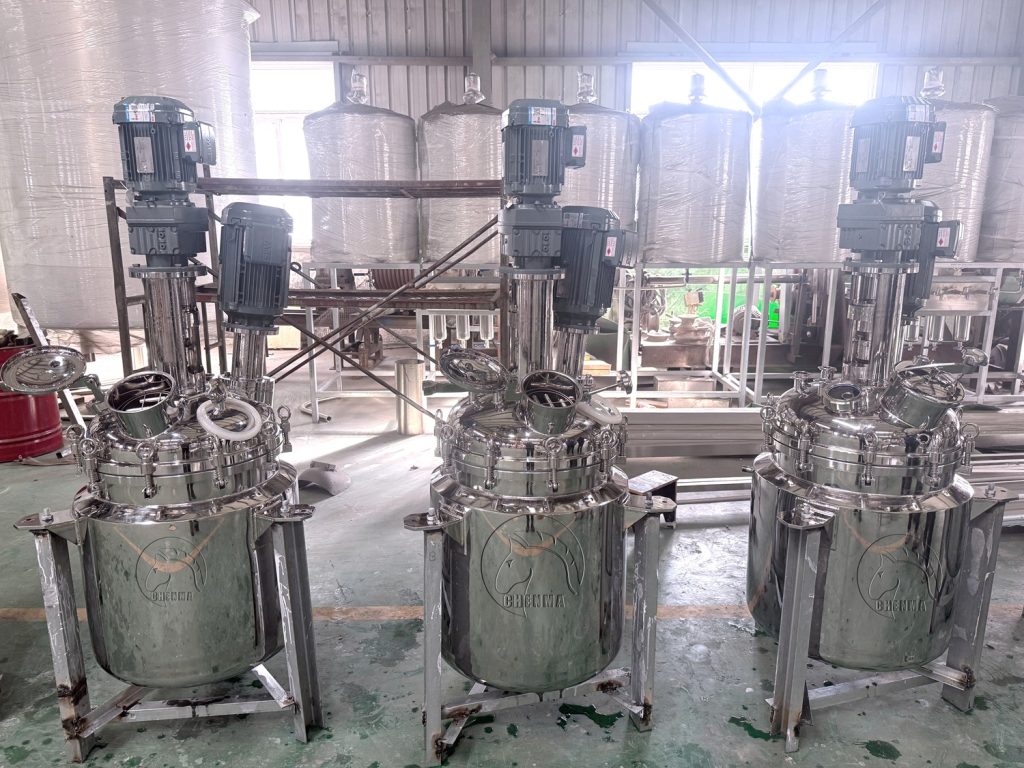

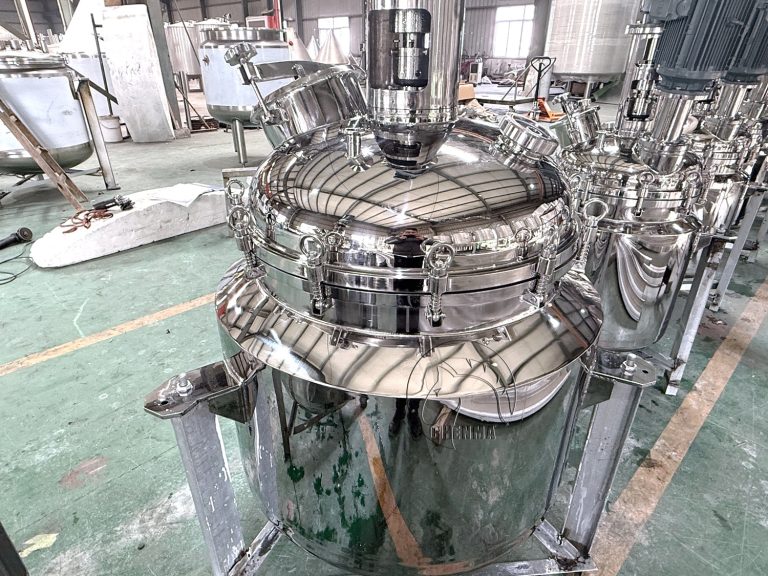

500L Chocolate Mixing Tank

500L sanitary chocolate mixing tank adopts food-grade stainless steel 304/316L, equipped with heating jacket and anchor scraper agitator, it is specially designed for high-viscosity chocolate mass, cocoa liquor, chocolate paste and ganache. It can finish melting, mixing and constant-temperature holding in one unit, the wall scraper avoids chocolate sticking and scorching on tank wall, it is widely used in small & medium chocolate factories, confectionery and bakery production lines.

Product details

500L Chocolate Mixing Tank

500L chocolate mixing tank is designed for melting, mixing, heating, and maintaining chocolate at a stable temperature during chocolate processing, made from food-grade stainless steel304/316L, the tank features a sanitary design and efficient agitation system to ensure uniform chocolate consistency and prevent settling or overheating.

Specification for 500L chocolate mixing tank as follows:

1.Material of parts in contact with the product is SS316L and not in contact with the product is SS304, thickness for inner body is 3mm and thickness for cladding is 2mm;

2.It will be mixer for Chocolate, it is Chocolate mixing tank;

3.Effective capacity:500L;

4.Conical top and conical bottom;

5.Mixing power is 2.2kw, with frequency conversion;

6.Steam Jacket Heating, through hot water/steam to heating the tank;

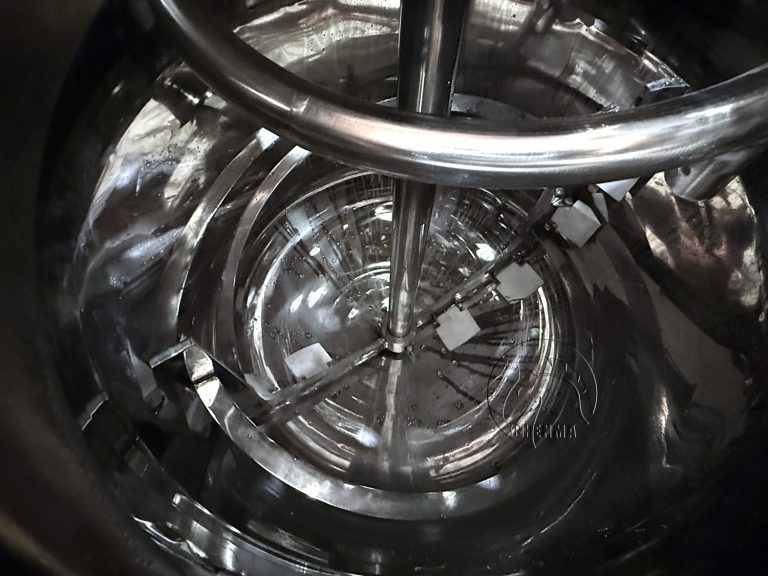

7.With mixer and sweeps;

8.The tank with aluminum silicate insulation;

9.With PT 100 temperature sensor;

10.The tank also with one control panel, it will be control the temperature for the tank and also control the agitator’s speed;

11.With 2pcs CIP rotating spray balls;
12.Fully welded cladding;

13.Inside for the tank with mirror polish;

14.Stainless steel 4pcs legs with screw assembly to adjust leg height.
