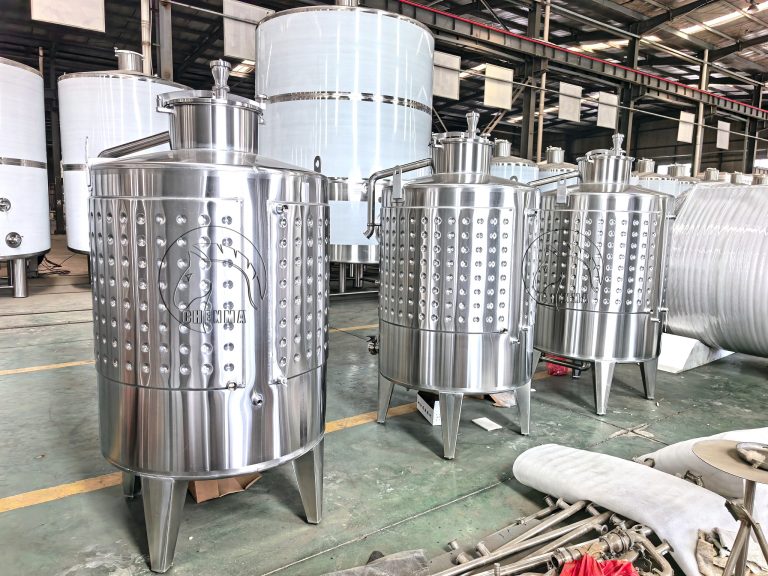

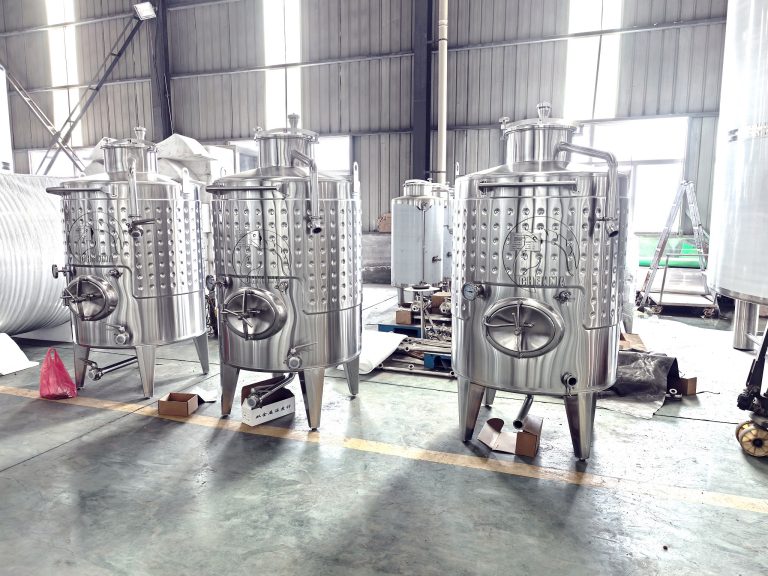

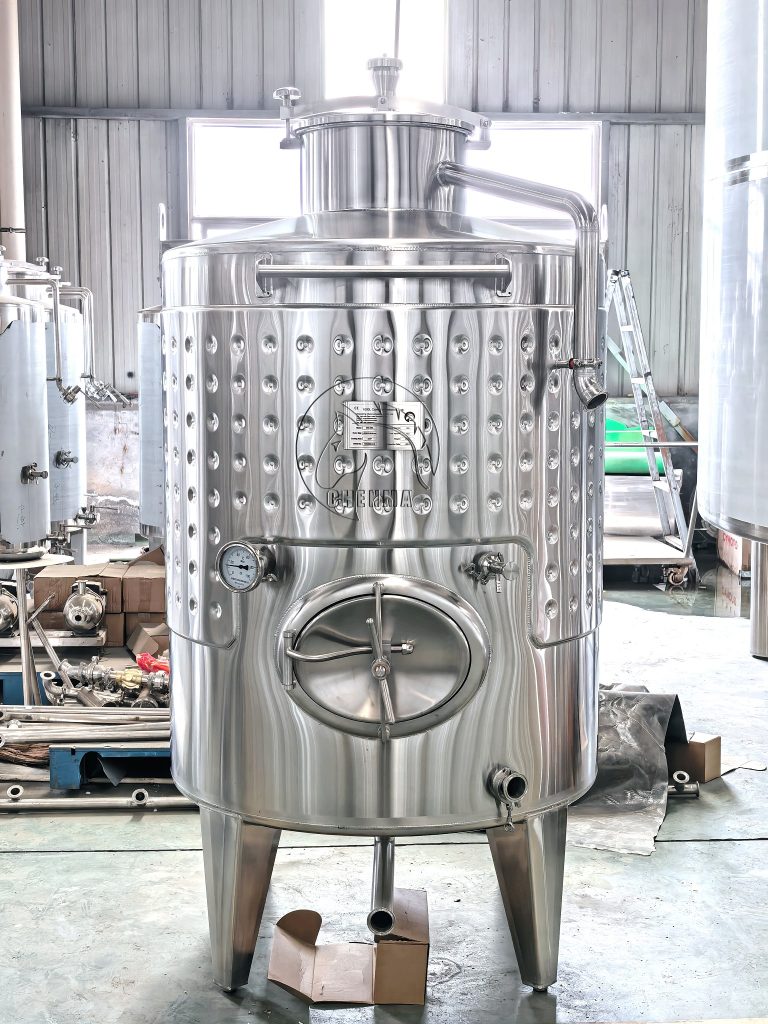

1000L Cider Fermentation Tank
Professional stainless steel cider fermentation tank with cooling jacket, widely used in fruit wine fermentation, stable temperature, easy cleaning and fully food grade.
1.Food grade stainless steel 304,thickness of material:2mm;
2.Volume: 1000L;
3.Centra conical top;
4.0.75’’Sample valve;
5.CIP – rotary spray ball;
6.2’’cider outlet and drain outlet assembly, tri-clamp connection;
7.Dimple cooling jacket;
8.Jacket inlet&outlet 1″female thread;
9.Fully welded cladding;
10.Top Manhole Cover, the size for the top manhole is DN400mm;
11.Side oval manway, the size for the manway is 430mmx330mm;
12.PT 100 Temperature Probe;
13.2″ Butterfly valves;
14. Conical bottom;
15.2″ Breather valve;
16.Lift lugs;
17.Bimetallic thermometer;
18.Stainless steel legs with bigger and thicker base plate, with screw assembly to adjust leg height.
