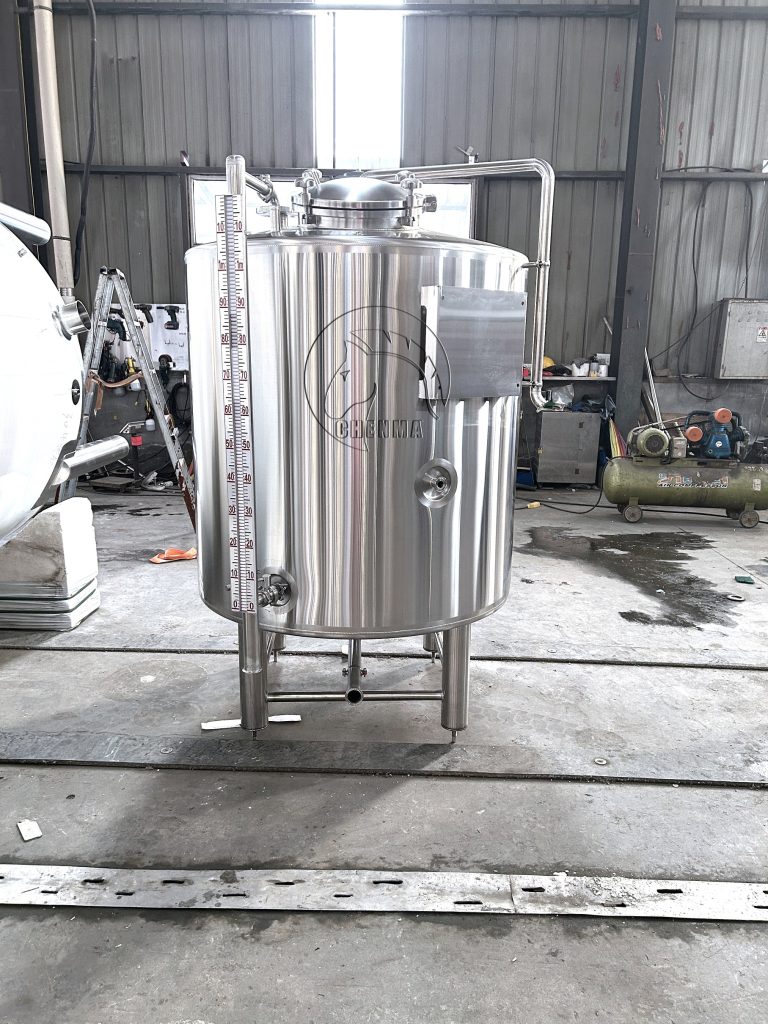

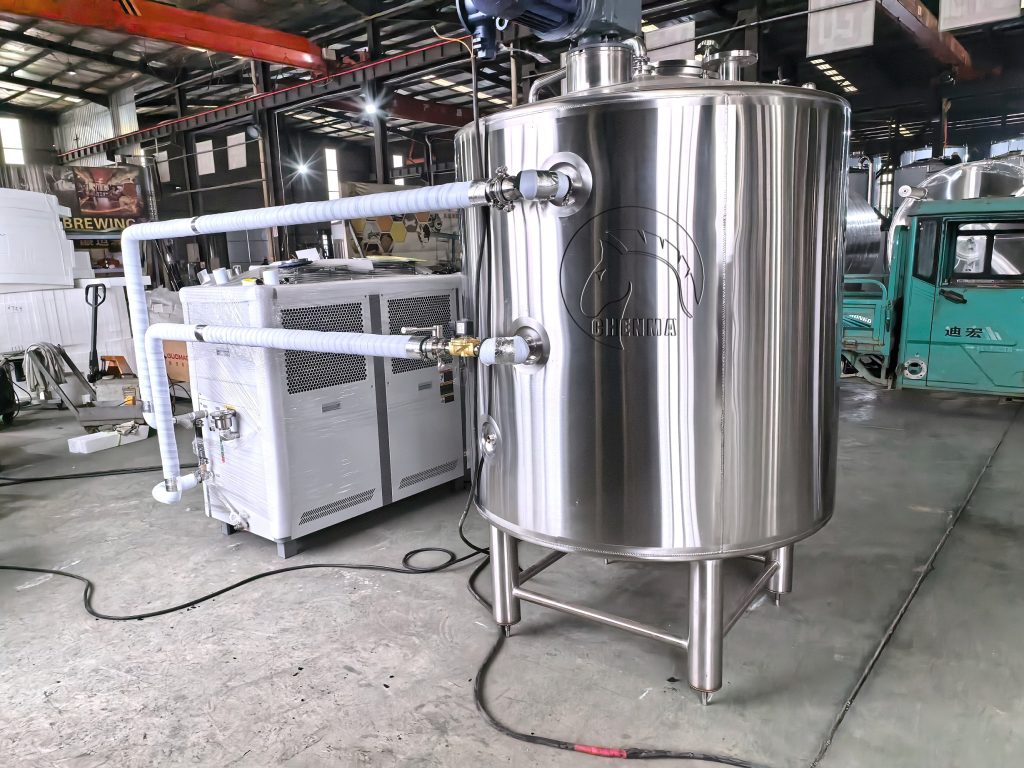

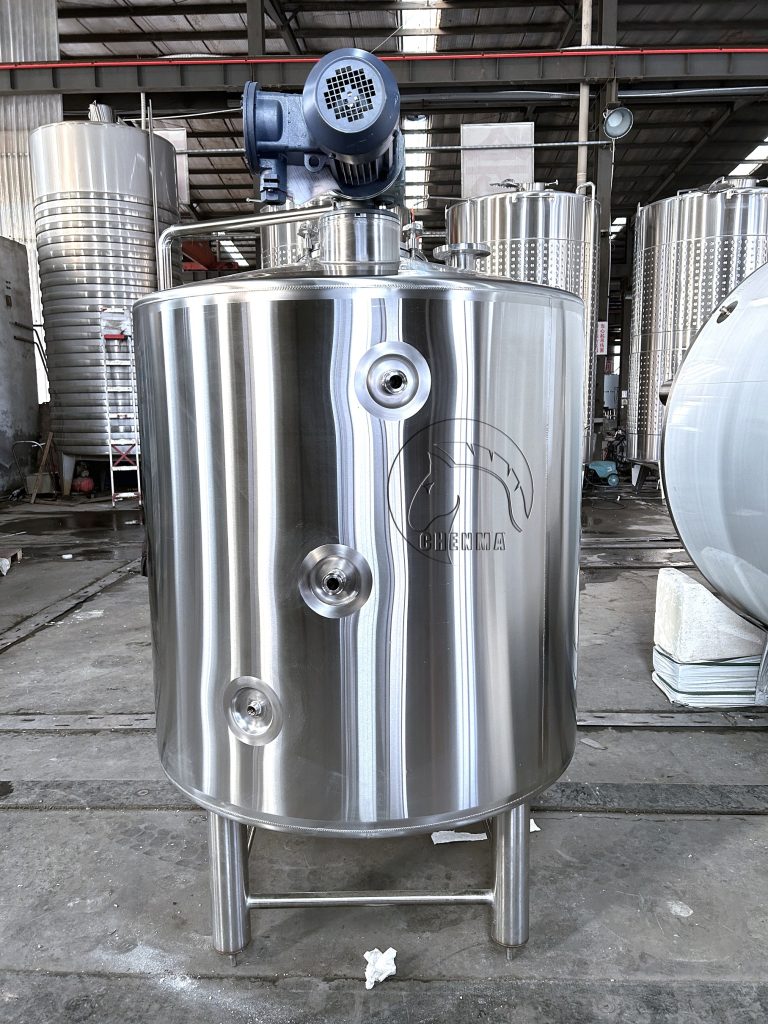

1000L Stainless Steel Alcohol Mixing Tank

1000L Stainless Steel Alcohol Mixing Tank

1000L Stainless steel alcohol mixing tank is a core piece of equipment for many craft distilleries, spirit blending operations, and beverage producers.

Specification for 1000L stainless steel alcohol mixing tank as follows:

1.Sanitary Stainless steel 304, inside for the tank will be pickling and passivation and welding line will be polished;

2.Effective capacity: 1000L, total capacity:1230L;

3.Cylinder shape ;

4.The material thickness for inner body is 3mm and cladding is 2mm;

5.The material thickness for upper cone and lower cone is 3mm;

6.The size for the tank:diameter for 1260mm and height for 2200mm;

7.Centric top with 400mm top manway, EPDM;

8.1″Sample valve;

9.2’’ discharge with butterfly valve ;

10.Fully welded cladding;

11.PT100 temperature probe;

12.2’’Fire retardant breather valve;

13.The tanks with cooling jacket and with insulation;

14.Liquid level gauge;

15.CIP spray ball;

16.Bimetallic thermometer;

17.With explosion-proof agitation motor, power:0.75kw and speed is 60RPM ;

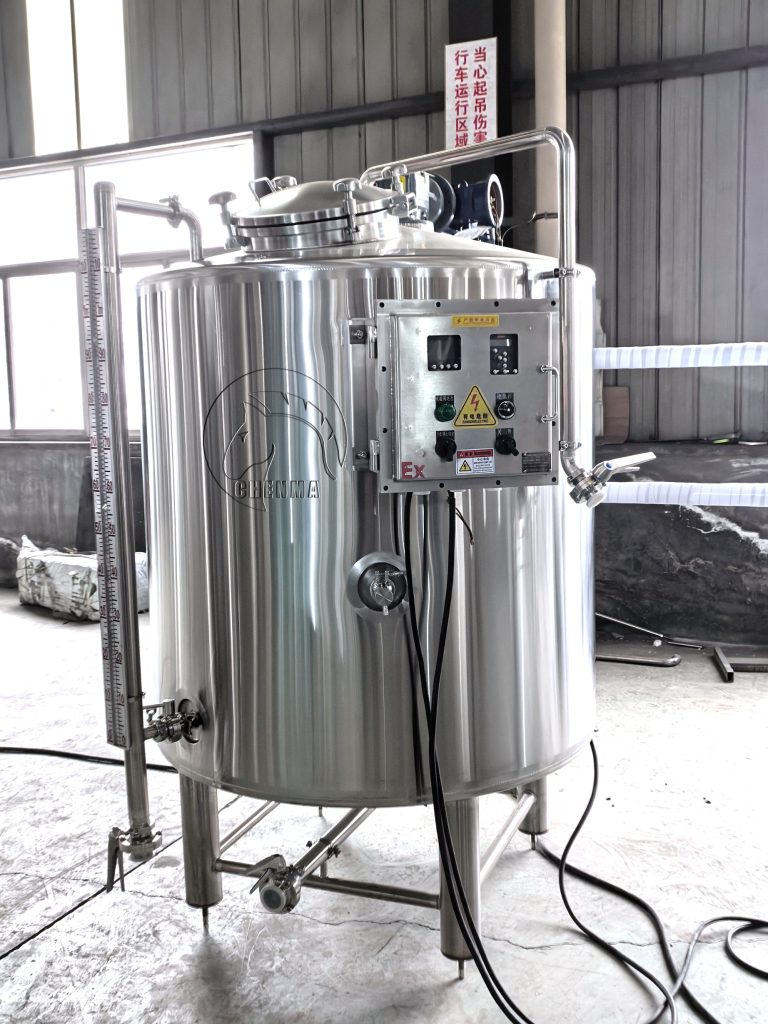

18.With explosion-proof stainless steel 304 control panel, it will be control the variable speed and agitator’s on/off ;

19.Stainless steel 4pcs legs with screw assembly to adjust leg height.
