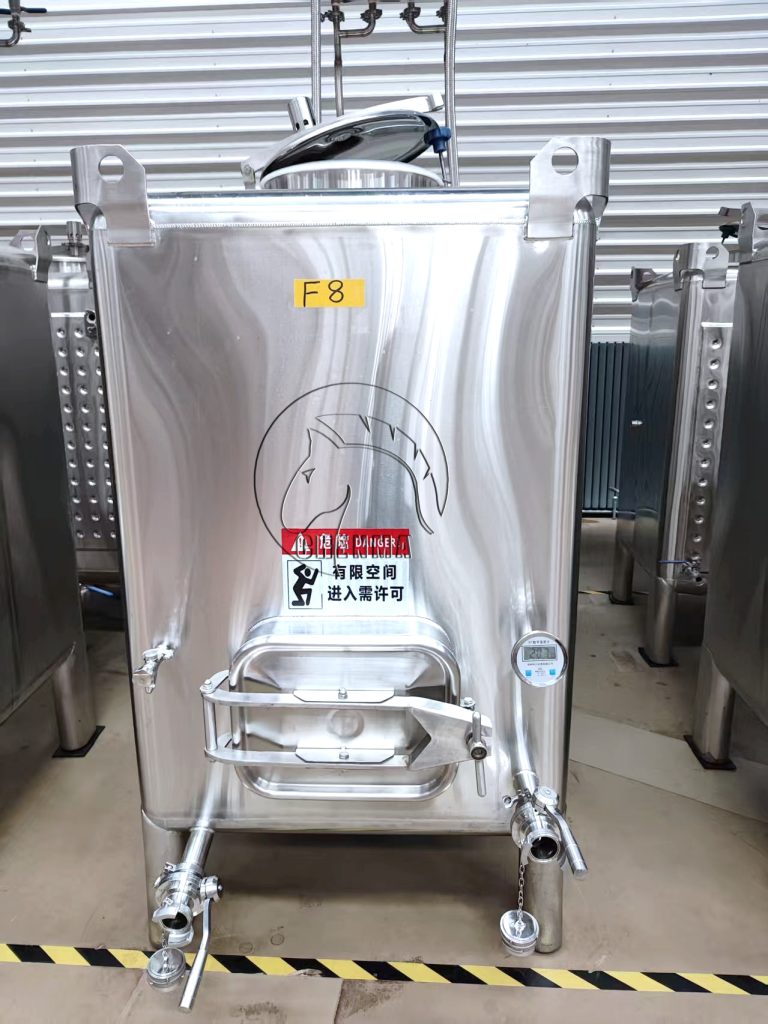

1000L Stainless Steel Square Wine Tank

1000L Stainless Steel Square Wine Tank

1000L stainless steel square wine tank is a significant and versatile piece of equipment for a serious winemaker, cidermaker, or brewer. It’s a crossover size, suitable for both premium small-batch production and essential processing in a larger facility.

1.Key Advantages of 1000LSquare Wine Tank:

1)Space Efficiency: Square tanks fit tightly together, maximizing floor space in your production area compared to round tanks.

2)Stackability: Most are designed to be safely stacked (with proper support frames), further saving space.

3)Excellent Volume for Scaling: 1000L, 1500L,2000L and 3000L  is a great size for small-batch experimentation, blending, or as a primary fermentation vessel for a few tons of grapes. It’s manageable yet substantial.

2.Specification for 1000L Stainless Steel Square Wine Tank as follows:

1).Sanitary stainless steel 304, thickness is 3mm;

2).Effective capacity:1000L;

3).0.75″ sample valve;

4).1.5″wine outlet with tri-clamp butterfly valves;

5).1.5″drain outlet with tri-clamp butterfly valves;

6).Fully welded cladding;

7).Top manway and the size for the manway is DN400mm;

8).With cooling jacket(every side can be with cooling jacket or two side can be with cooling jacket or only side can be with cooling jacket),1″ coolant inlet and coolant outlet;

9).Top manway and the size for the manway is DN400mm;

10).Side rectangle manway door, the size is 430mmx330mm;

11).Closed top tank;

12.Stackable legs.
