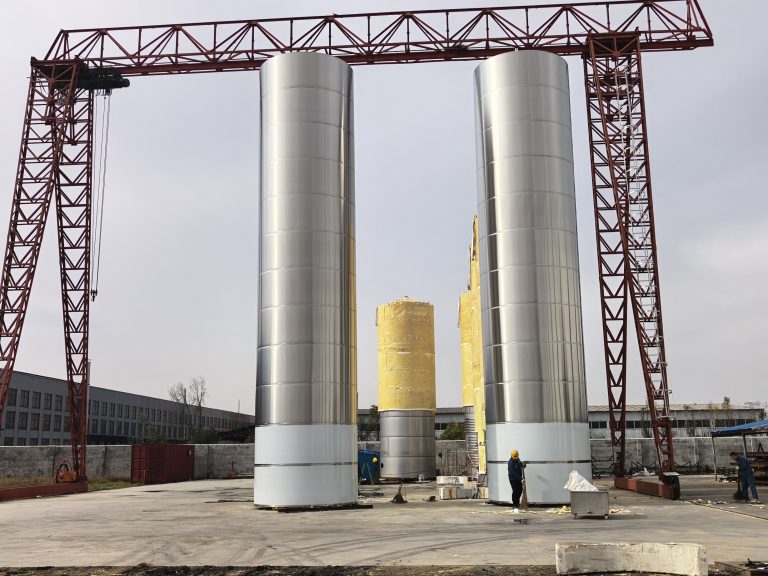

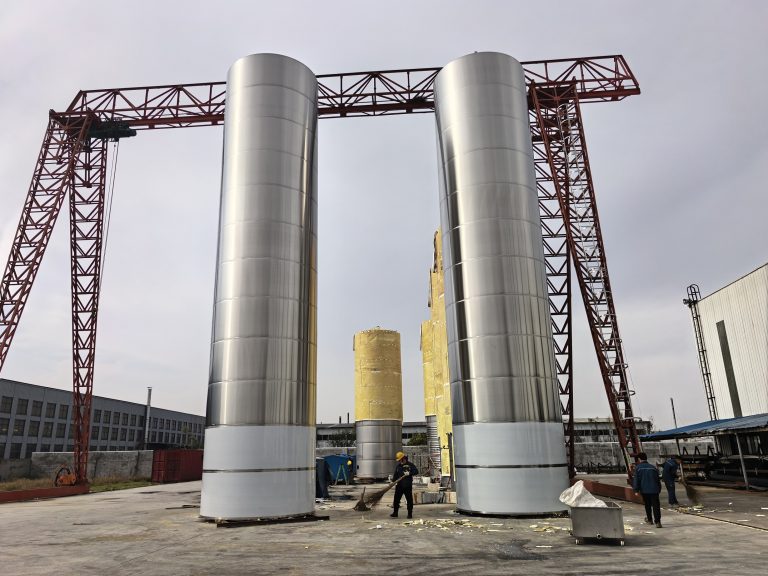

100Tons Stainless Steel Milk Silos

100 ton milk silo corresponds to about 100,000 liters of milk storage is suitable for commercial dairy operations, milk collection centers, or processing plants, the material for the tank with stainless steel 304 or 316L, generally with cooling jacket and insulation and side agitator.

The specification for our 100tons stainless steel milk silo as follows:

1.Sanitary Stainless steel,inside for the tank will be pickling and passivation and internal welding line will be polished, inner body with stainless steel 304/316L and outside with stainless steel 304;

2.Material of parts in contact with the product: SS304 or 316L；

3.Surface brushed, welding line polish sanding light belt;

4.Inner body thickness is 5mm, cladding thickness is 2mm;

5.Effective capacity:100,000L;

6.Diameter is 3850mm, height is 10980mm;

7.Conical top and conical bottom;

8.Top Manhole Cover, the size for the top manhole is DN600mm;
9.1.5″Sample valve;
10.3″ milk outlet assembly;

11.3″ milk inlet, with thread connection;

12.Agitator system: 5.5KW stirring power, 960 rpm, variable frequency, side agitator, material is stainless steel 304;

13.PU insulation, thickness: 150mm;

14.Cylinder and bottom with cooling jacket ;
15.Fully welded cladding;
16.Temperature sensor, brand:IFM, quantity is 1 set;
17.Welding method: TIG welding;

18. 6″Breather valveon top of tank;

19.There are 2pcs CIP spray ball;

20.Bimetallic thermometer;

21.With IFM brand low/higher liquid level sensor and continuous liquid level sensor;

22.Inside of tank with anti-vortex baffle;

23.Without legs and with milk silo base supporting on the floor;

24.Complete with associated valves and fittings.
