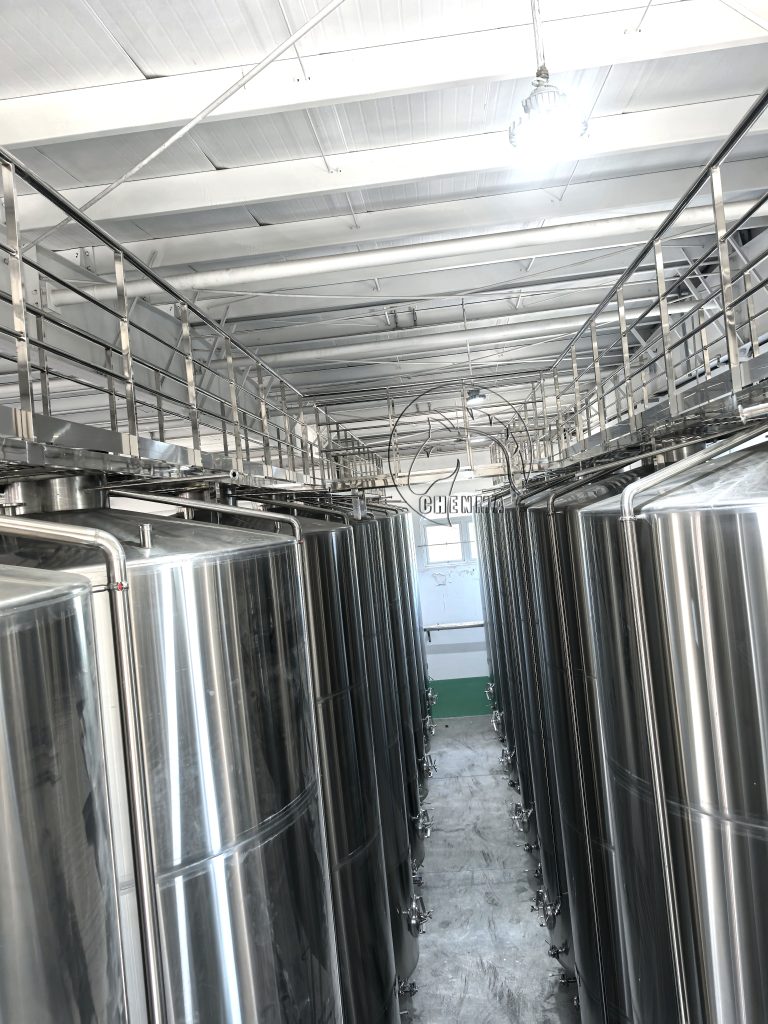

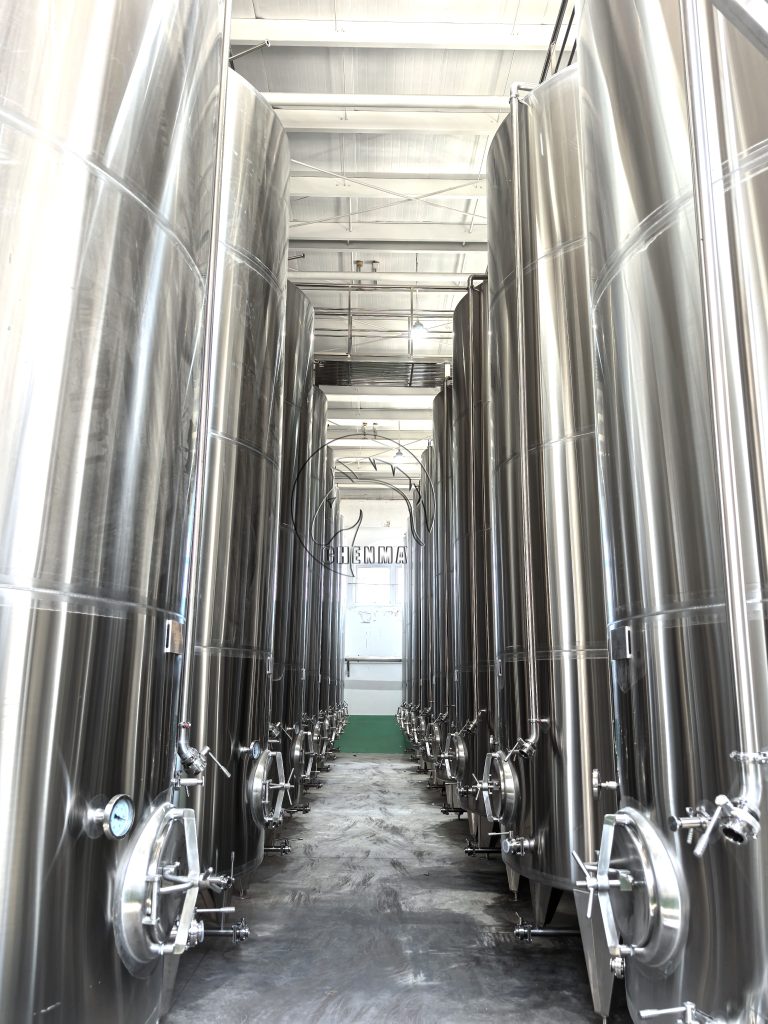

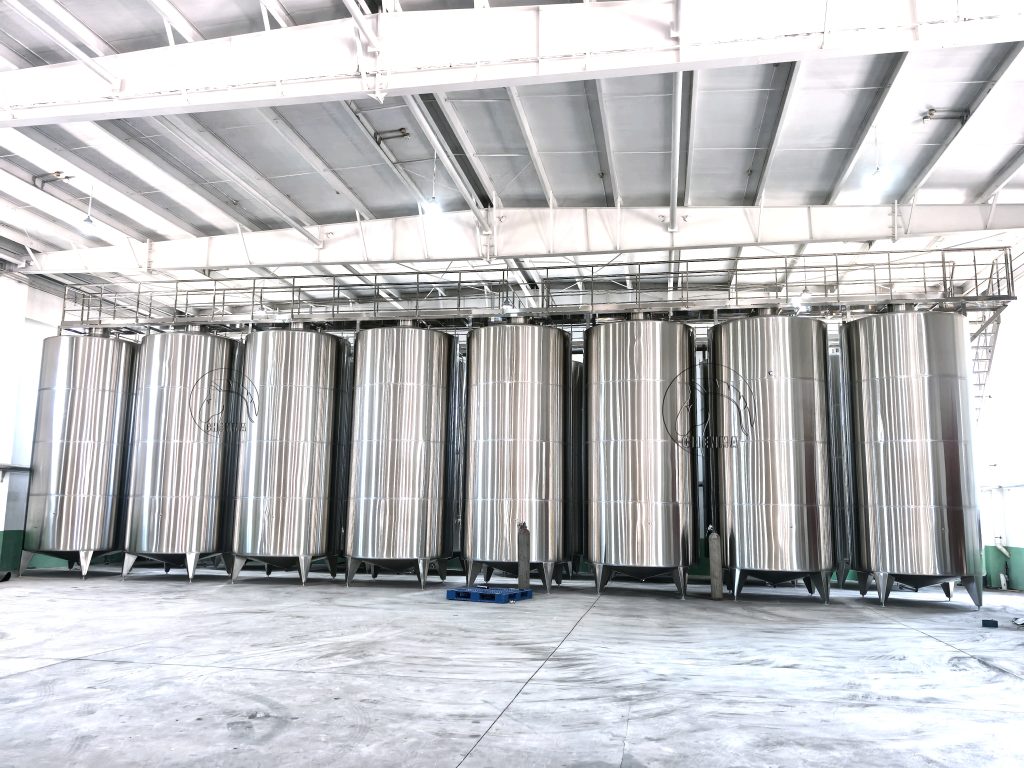

22,000L Stainless Steel Brandy Storage Tank

22,000L Stainless Steel Brandy Storage Tank

22,000litre stainless steel tank is specially designed for storage and ageing of brandy and other spirit drinks.Constructed from high-quality AISI 304 stainless steel (AISI 316L optional), the tank features fully welded structure, smooth interior polishing and hygienic design, which prevents liquid contamination and keeps the original flavour of liquor.

1.Sanitary Stainless steel 304, inside for the tank will be pickling and passivation and welding line will be polished;

2.Effective capacity: 20,000L;

3.Cylinder shape ;

4.The material thickness for shell is 3mm;

5.The material thickness for upper cone and lower cone is 3mm;

6.The size for the tank:diameter for 2200mm and height for mm;

7.Centric top with 500mm top manway, EPDM;

8.0.75’’Sample valve;

9.2’’alcohol outlet with butterfly valve;

10.2’’Drain outlet with butterfly valve ;

11.Fully welded cladding;

12.Side oval manway, the size for the oval manway is 530mmx430mm, EPDM;

13.2’’Fire- stop breather valve;

14.The tanks without jacket and without insulation;

15.Magnetic flap level gauge;

16.CIP spray ball;

17.Bimetallic thermometer;

18.Stainless steel 4pcs legs with screw assembly to adjust leg height.
