25KL Stainless Steel Drinking Water Storage Tank

                        25KL Stainless Steel Drinking Water Storage Tank

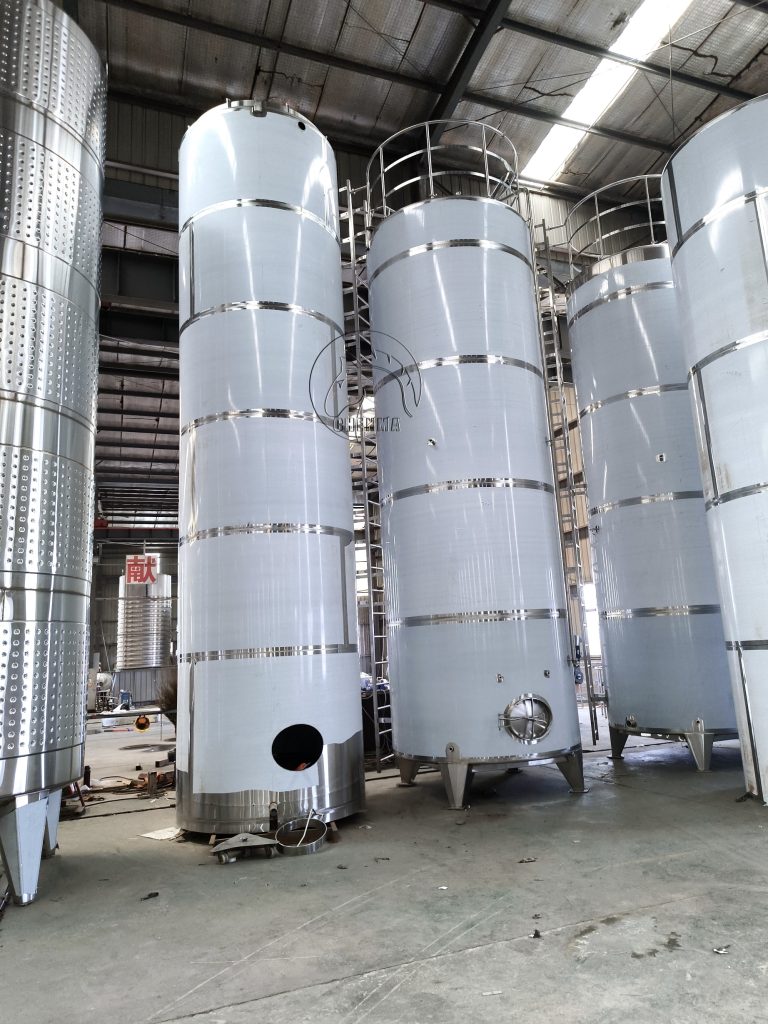

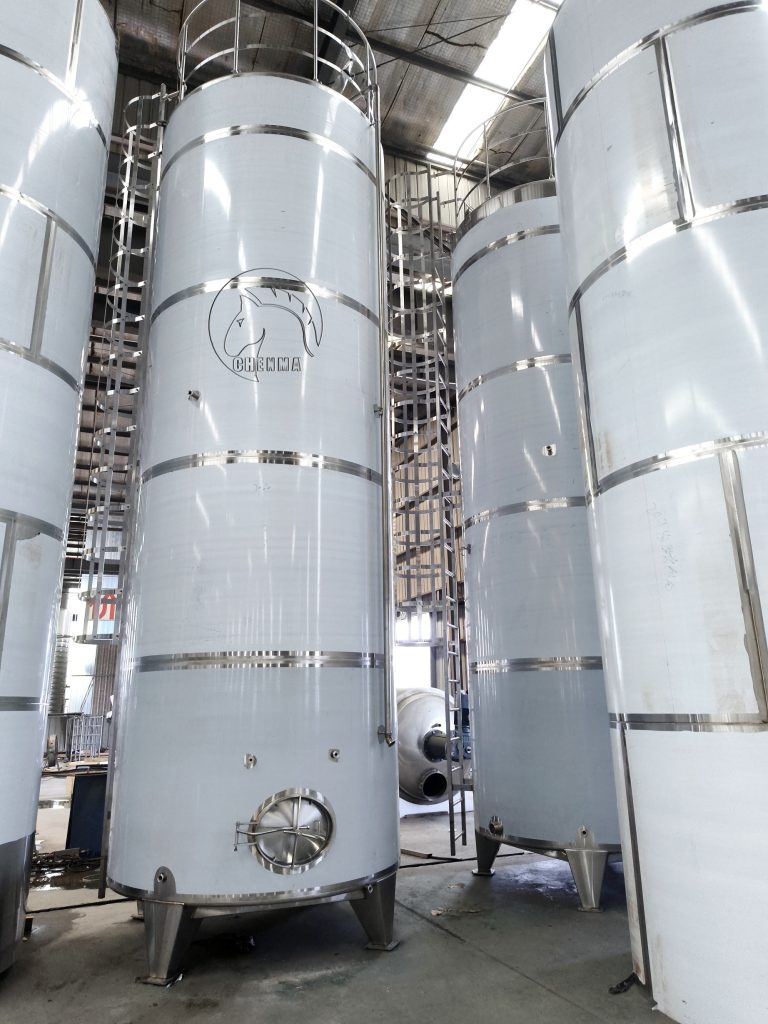

25KL stainless steel drinking water storage tank is designed for the safe, hygienic, and reliable storage of drinking water, purified water, mineral water, and other food-grade liquid products, 25,000liter water tank is suitable for water treatment plants, bottled water factories, beverage plants, food-processing facilities and industrial water storage applications.

Key Features:

1.Sanitary Stainless steel 304, thickness of material is 4mm, inside for the tank will be pickling and passivation and welding line will be polished;

2.Effective capacity: 25,000L;

3.Top with 2’’inlet valve ;

4.Conical top and conical bottom;

5.2’’water outlet with butterfly valve;

6.Bottom 3’’drain outlet with butterfly valve;

7.2’’ breather valve on top;

8.Centric top with 500mm top manway;

9.Side oval manway and the size for the manway:530mmx430mm;

10.Magnetic flap level gauge;

11.Fully welded cladding;

12.Lift lug;

13.1’’ sample valve;

14.With CIP washing ball;

15.Bimetal thermometer;

16.The bottom cone angle is 140 degrees;

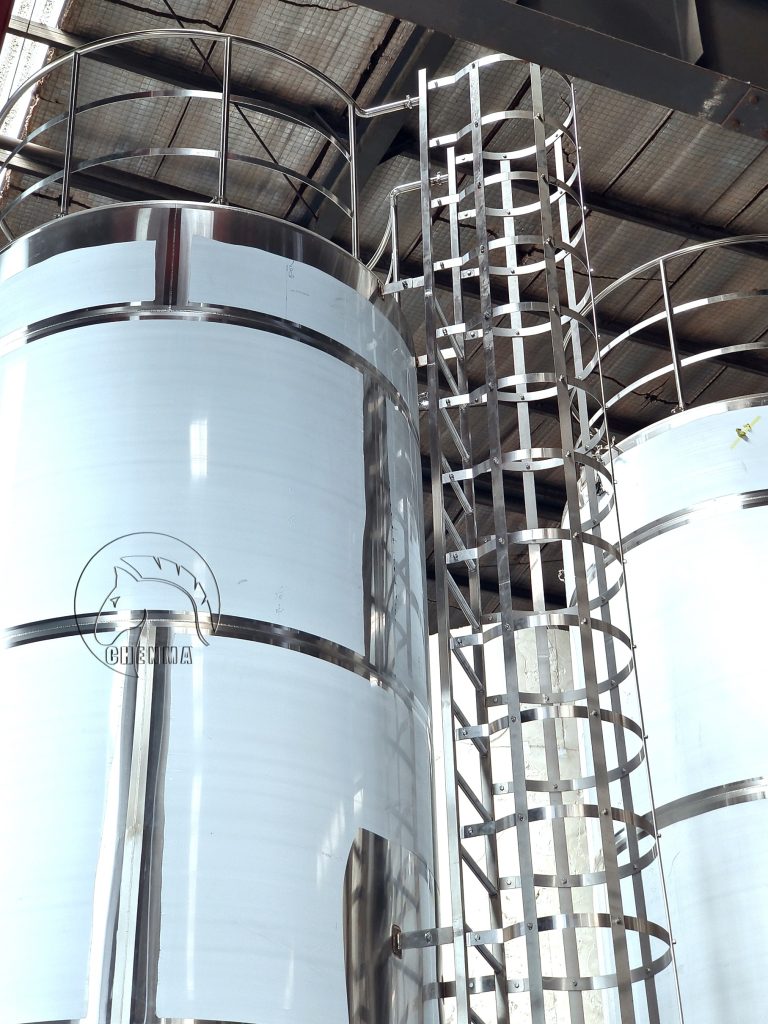

17.Safety Ladder & guardrail: Optional for convenient inspection and operation

18.Stainless steel legs with screw assembly to adjust leg height.

Applications:

The 25KL stainless steel water storage tank can be used for:

• Drinking water storage
• Purified water storage
• Mineral water storage
• RO water storage
• Bottled water production
• Beverage production
• Food and dairy processing
• Water treatment systems
• Industrial process water storage.
