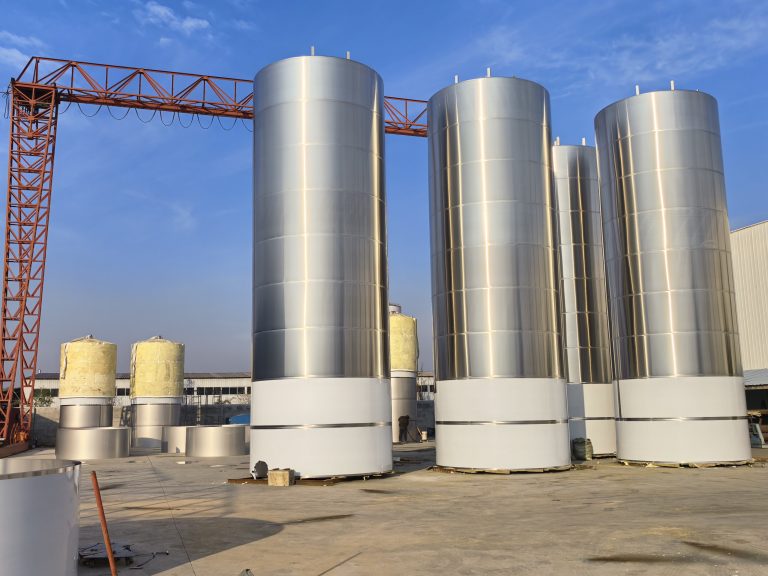

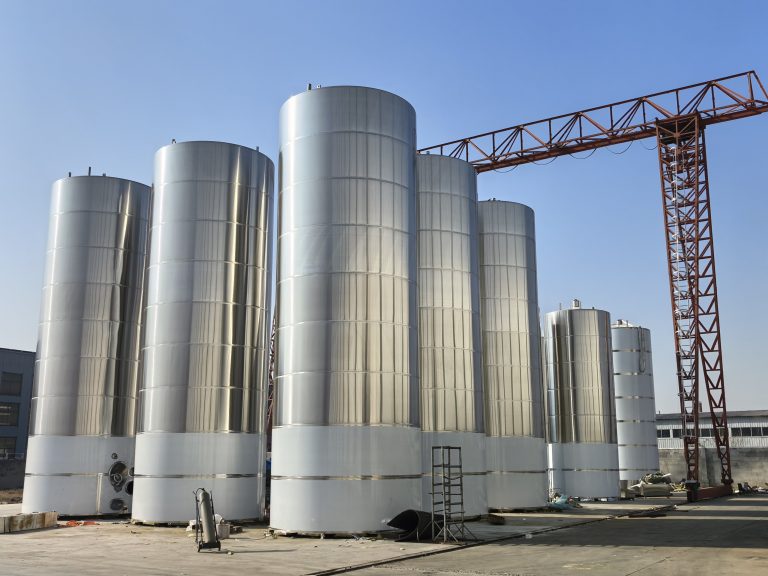

30,000L Milk Silo Tank

Milk silo tanks are custom sanitary tanks (with insulation, agitator, cooling jackets, CIP cleaning, etc.),it is a crucial piece of equipment for dairy farms, collection centers and processing plants.

Product details

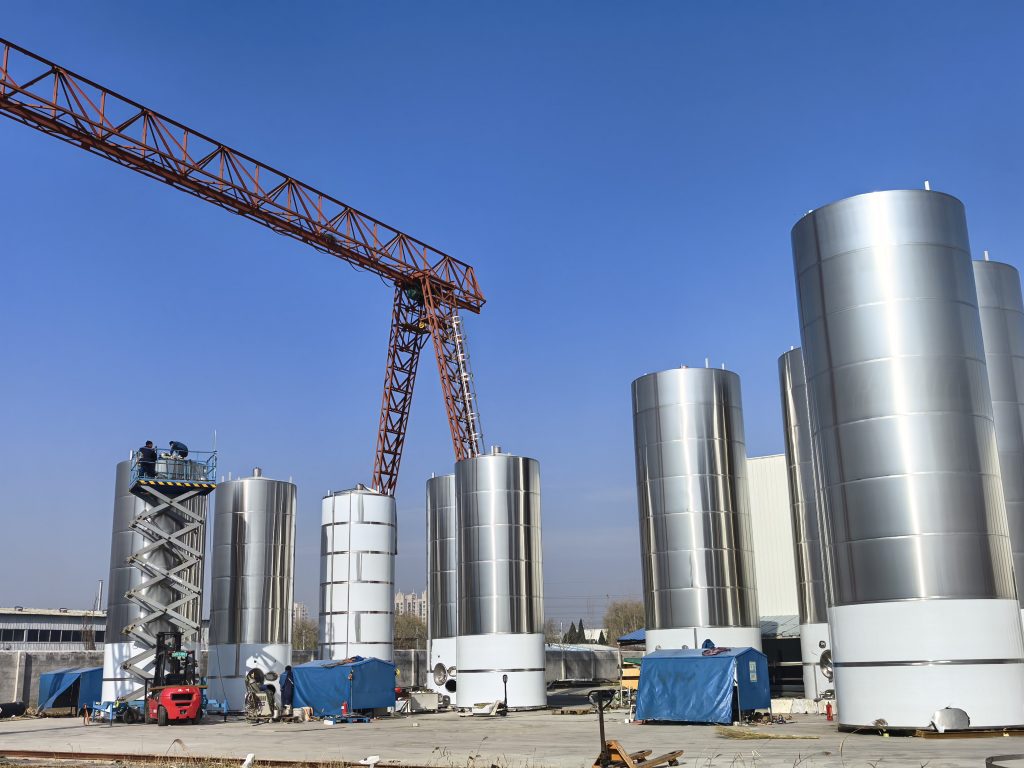

30,000L Milk Silo Tank

Specification for 30,000L milk silo tank as follows:

1.Sanitary Stainless steel,inside for the tank will be pickling and passivation and internal welding line will be polished, inner body with stainless steel 304 and outside with stainless steel 304;

2.Material of parts in contact with the product: SS304/316L；

3.Surface brushed, welding line polish sanding light belt;

4.Inner body thickness is 4mm, cladding thickness is 2mm;

5.Effective capacity:30,000L, total capacity: 32940L;

6.Diameter is 3200mm, height is 5943mm;

7.Conical top and conical bottom;

8.Top Manhole Cover, the size for the top manhole is DN600mm;
9.1.5″Sample valve;
10.3″ milk outlet assembly;

11.3″ milk inlet, with thread connection;

12.Agitator system: 5.5KW stirring power, 960 rpm, variable frequency, side agitator, material is stainless steel 304;

13.PU insulation, thickness:100mm;

14.Cylinder and bottom with cooling jacket ;
15.Fully welded cladding;
16.Temperature sensor, brand:IFM, quantity is 1 set;
17.Welding method: TIG welding;

18. 6″Breather valveon top of tank;

19.There are 2pcs CIP spray ball;

20.Bimetallic thermometer;

21.Every tank with IFM brand liquid level sensor with indicator;

22.Top with guardrail for every tank;

23.Stainless steel legs with adjusting bolt,with bigger and thicker base plate, with screw assembly to adjust leg height;

24.Complete with associated valves and fittings.
