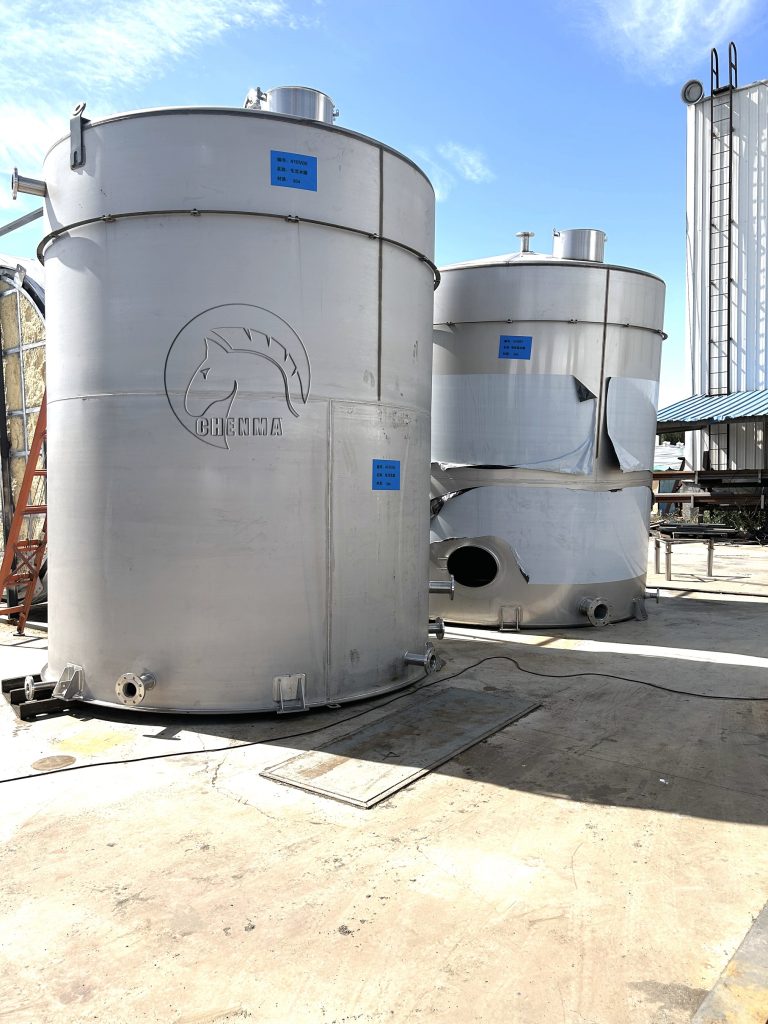

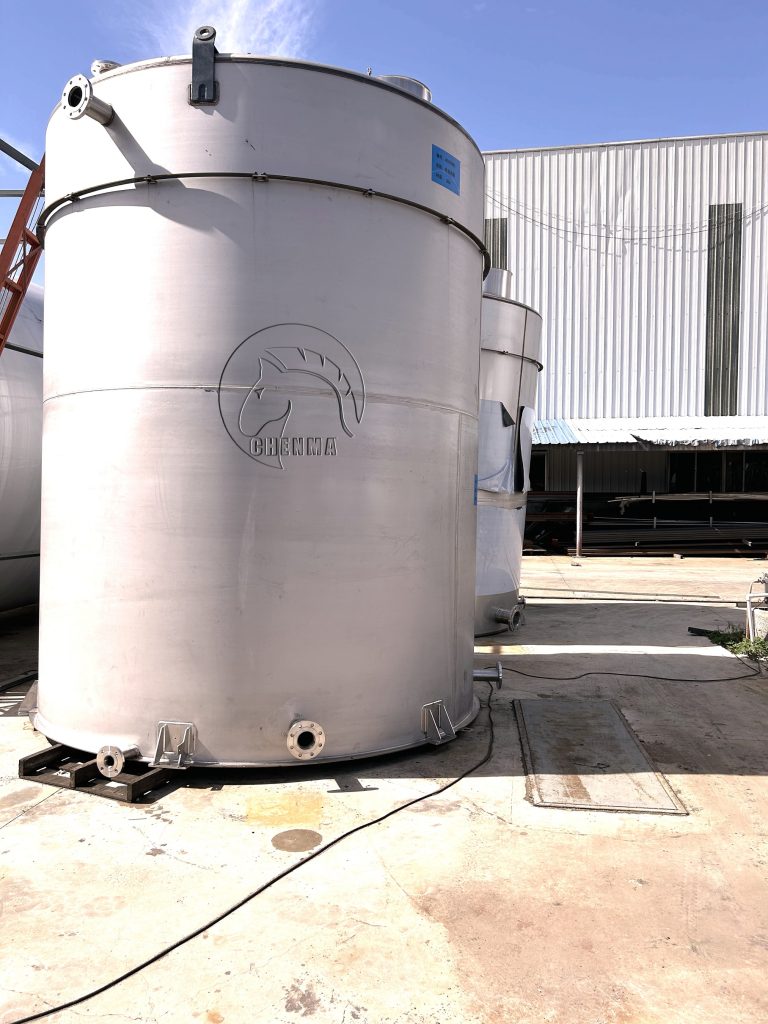

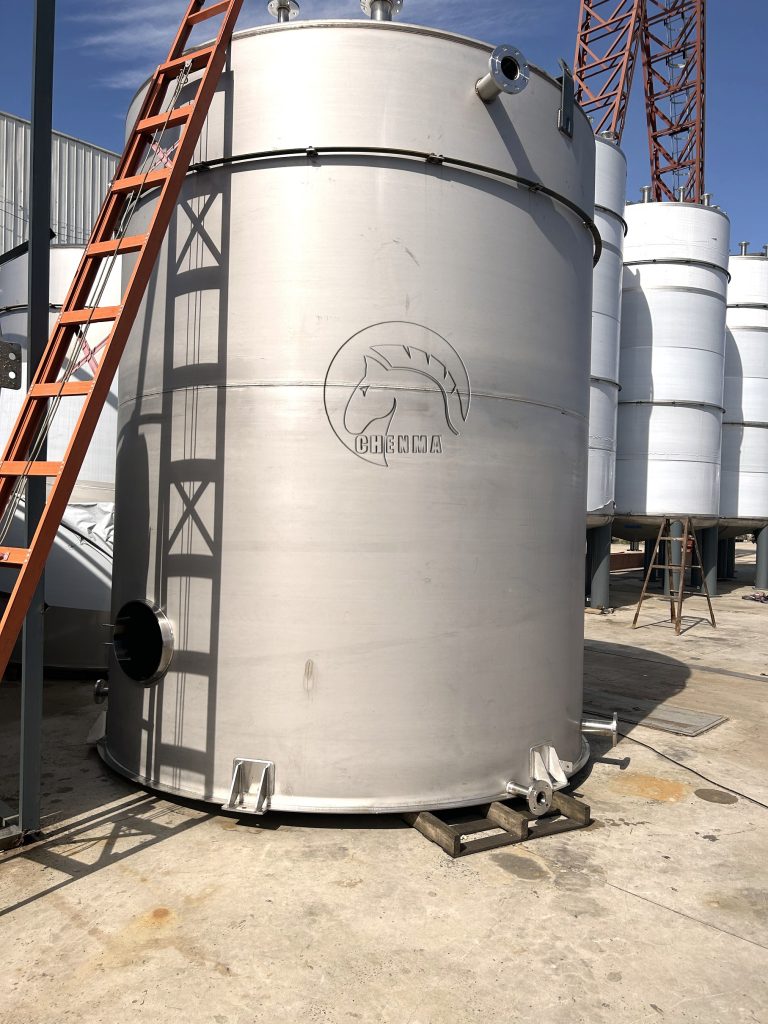

30,000L Stainless Steel Water Storage Tank

30,000L Stainless Steel Water Storage Tank

30,000L stainless steel water storage tank adopts high-quality food-grade stainless steel304 or 316L. It features excellent anti-rust and anti-corrosion performance, smooth inner wall without dead corners, which meets food safety standards. The tank body is firmly welded with good air and water tightness, stable structure and strong load-bearing capacity.Widely used for drinking water storage, industrial water circulation, farm water supply, municipal engineering and other scenarios.

Specification for 30,000L water storage tanks as follows:

1.Sanitary Stainless steel 304, thickness for the bottom base is 5mm, Layers and top plate is 4mm thick;

2.Inside for the tank will be pickling and passivation and welding line will be polished;

3.Effective capacity: 30,000L;

4.Top with 2’’inlet valve ;

5.Conical top and slop flat bottom;

6.3’’water outlet with butterfly valve;

7.Bottom 3’’drain outlet with butterfly valve;

8.2’’ breather valve on top;

9.Centric top with 500mm top manway, EPDM;

10.Side oval manway and the size for the manway:530mmx430mm;

11.Higher/lower liquid level sensor;

12.Fully welded cladding;

13.Lift lug;

14.1’’ sample valve;

15.With CIP washing ball;

16.Bimetal thermometer;

17.The tank without leg, it will be plinth mounted on the floor.
