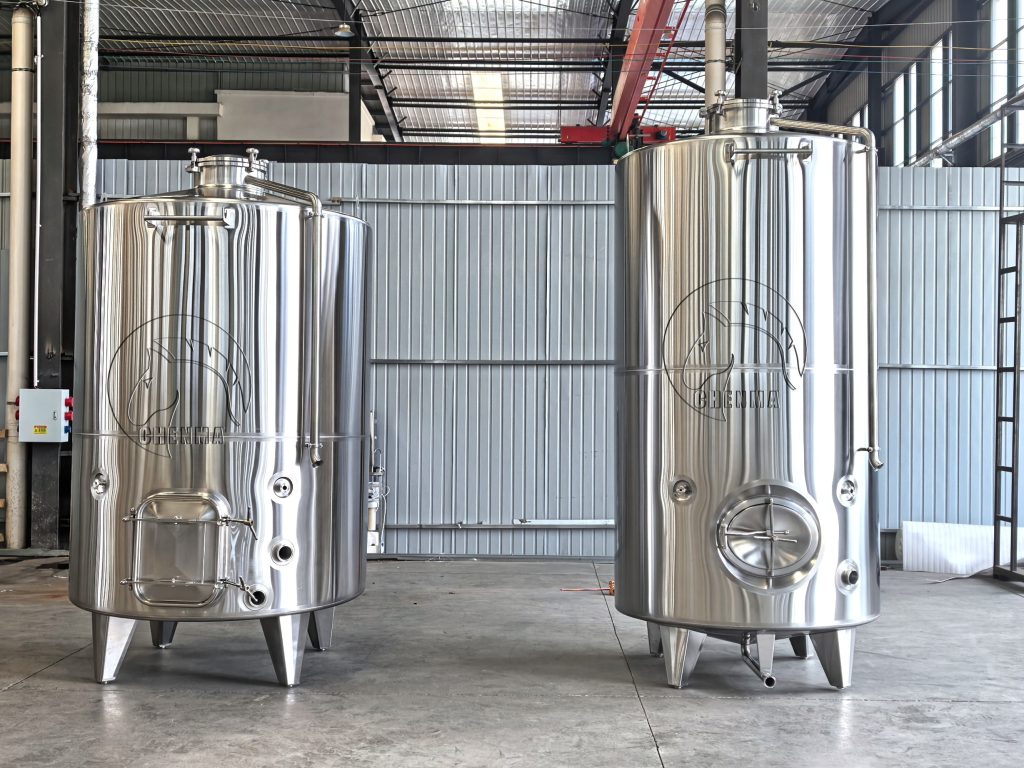

3500L Double Wall Wine Fermentation Tank

3500L Double Wall Wine Fermentation Tank

Double wall wine fermentation tank with cooling jacket and insulation, temperature controllable double layer wine fermenter, insulated jacket for precise fermentation temp control, sanitary design for winery grape wine brewing.

1.Sanitary Stainless steel 304/316L, inside for the tank will be pickling and passivation and internal welding line will be polished;

2.Effective capacity: 3500L;

3.Inner body thickness is 2.5mm, cladding thickness is 2mm;

4.Size:diameter for 1750mmxheight for2650mm;

5.Conical centric top, material with stainless steel 316L;

6.Top Manhole Cover, the size for the top manhole is DN400mm, material with stainless steel 316L;
7.0.75″Sample valve;
8.2″Wine outlet and drain outlet with butterfly valves, Tri-clamp connection;

9.2″racking valve, tri-clamp connection;
10.Dimple cooling jacket and thickness of cooling jacket is 1.5mm;

11.Polyurethane insulation, thickness: 80mm;
12.Fully welded cladding;

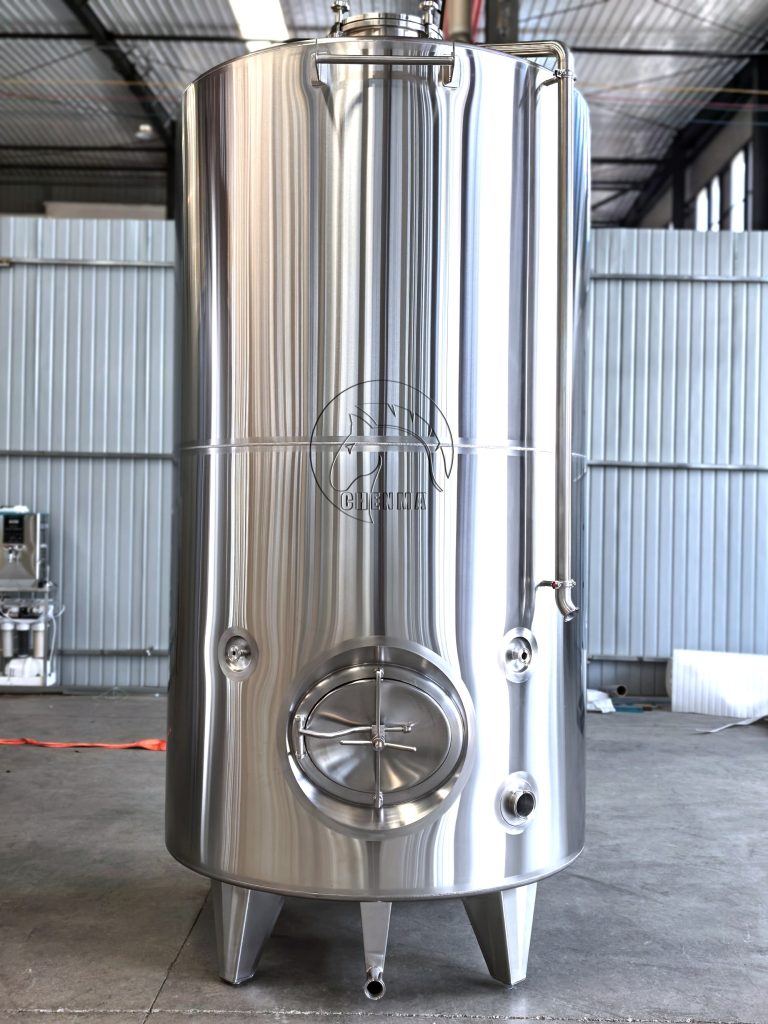

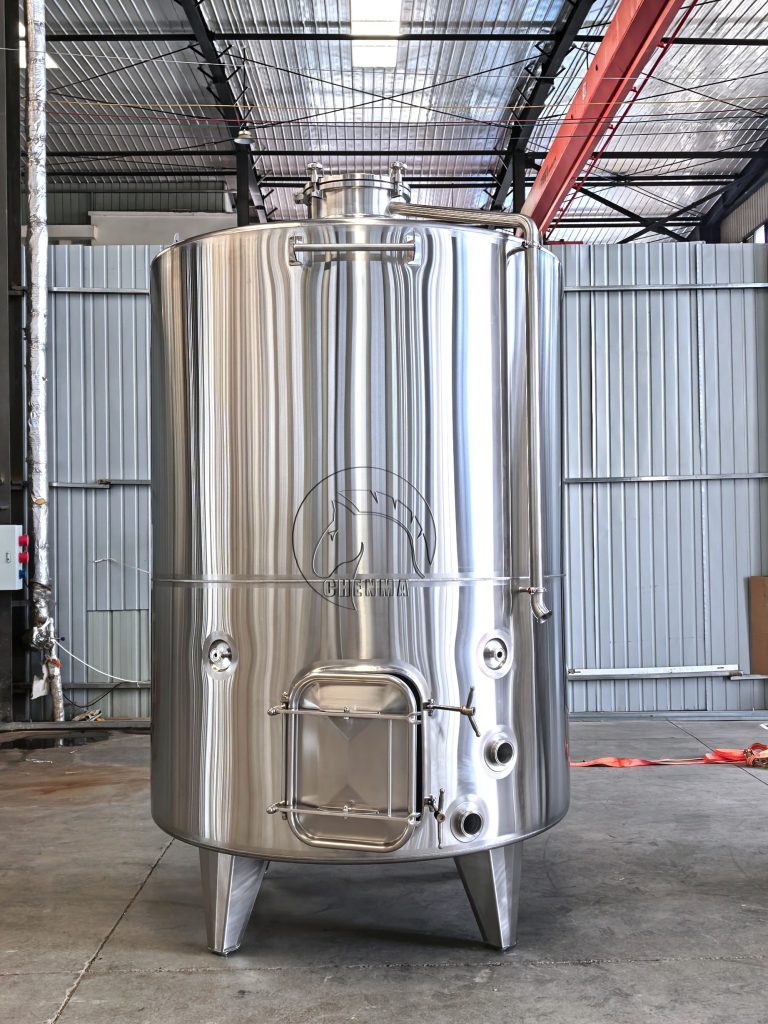

13.Side rectangle/ oval manway, the size for the manway is 530mmx430mm;
14.PT100 temperature probe;
15.1″Glycol inlet/outlet;

16. 2″ Breather valve;

17.Slop/conical bottom;

18.CIP spray ball;

19.Bimetallic thermometer;

20.Stainless steel legs with screw assembly to adjust leg height.
