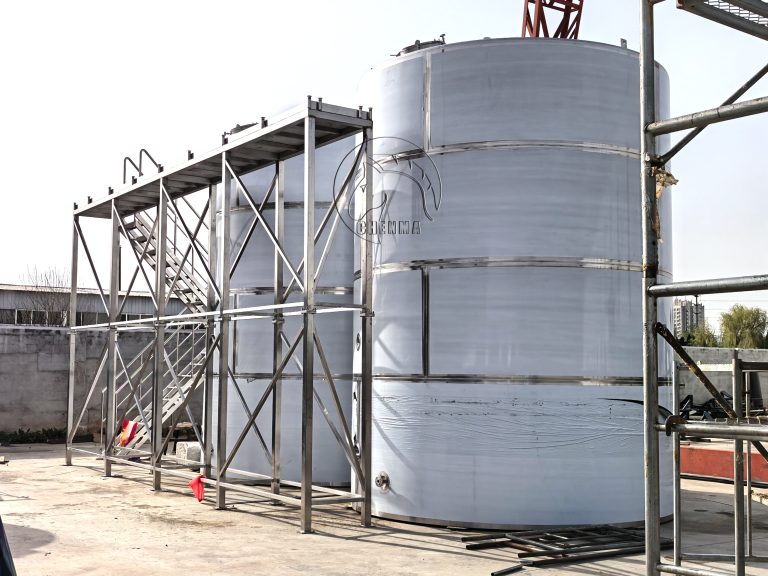

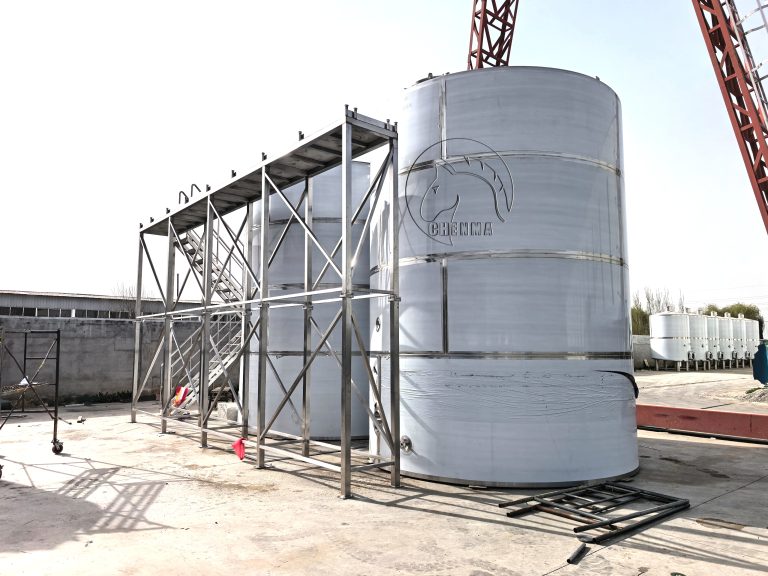

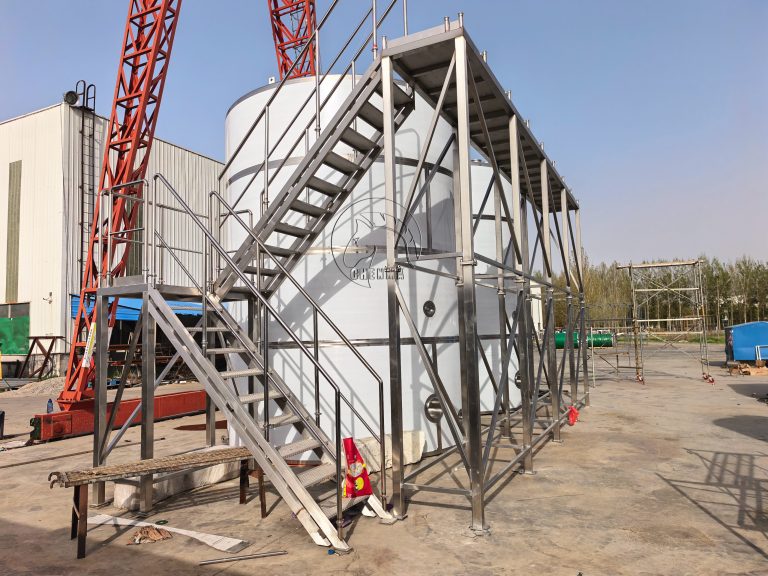

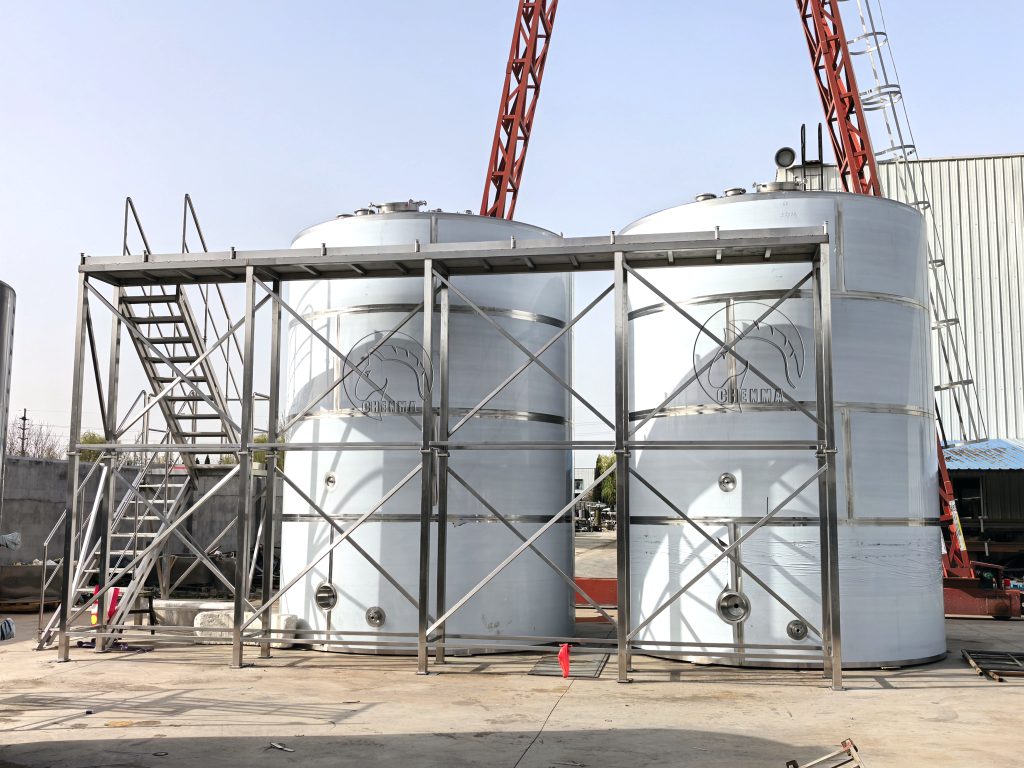

45Tons Stainless Steel Cooking Oil Storage Tank

45Tons Stainless Steel Cooking Oil Storage Tank

45tons stainless steel storage tank is specially designed for the storage, preservation and transfer of various edible oils, including cooking oil, vegetable oil, palm oil, soybean oil, sunflower oil, peanut oil and other food-grade oil products. It is widely used in oil refineries, food processing plants, agricultural product processing enterprises and food complete turnkey projects.

The specification list for 45tons cooking oil storage tanks as follows:

1.Sanitary Stainless steel 304, inside for the tank will be pickling and passivation and welding line will be polished;

2.Effective capacity:45m3;

3.Cylinder shape;

4.The thickness for bottom base is 4mm and the thickness of cylinder is 4mm-3mm;

5.The size for the tank:diameter for 3150mm and height for 8143mm;

6.Centric top with 500mm top manway, EPDM;

7.1.5″Sample valve;

8.3’’Discharge oil outlet;

9.3″Drain outlet valve;

10.2’’nitrogen inlet on top of tank;

11.Fully welded cladding;

12.Side oval manway, the size for the oval manway is 530mmx430mm, EPDM;

13.Breather pipe DN100mm;

14.The tanks heating jacket and insulation;

15.Aluminum silicate insulation, thickness of insulation is 150mm;

16.Liquid level sensor;

17.CIP spray ball;

18.Bimetallic thermometer;

19.The tank without leg, it is plinth mounted on the floor;

20.The tank will be install outdoor.
