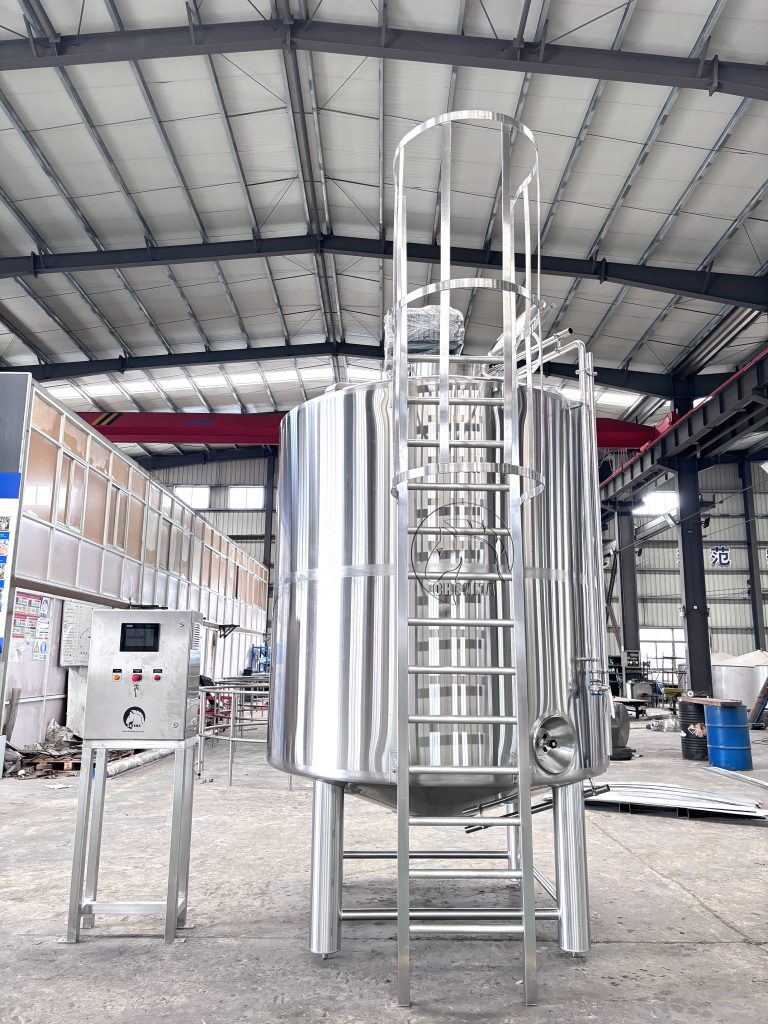

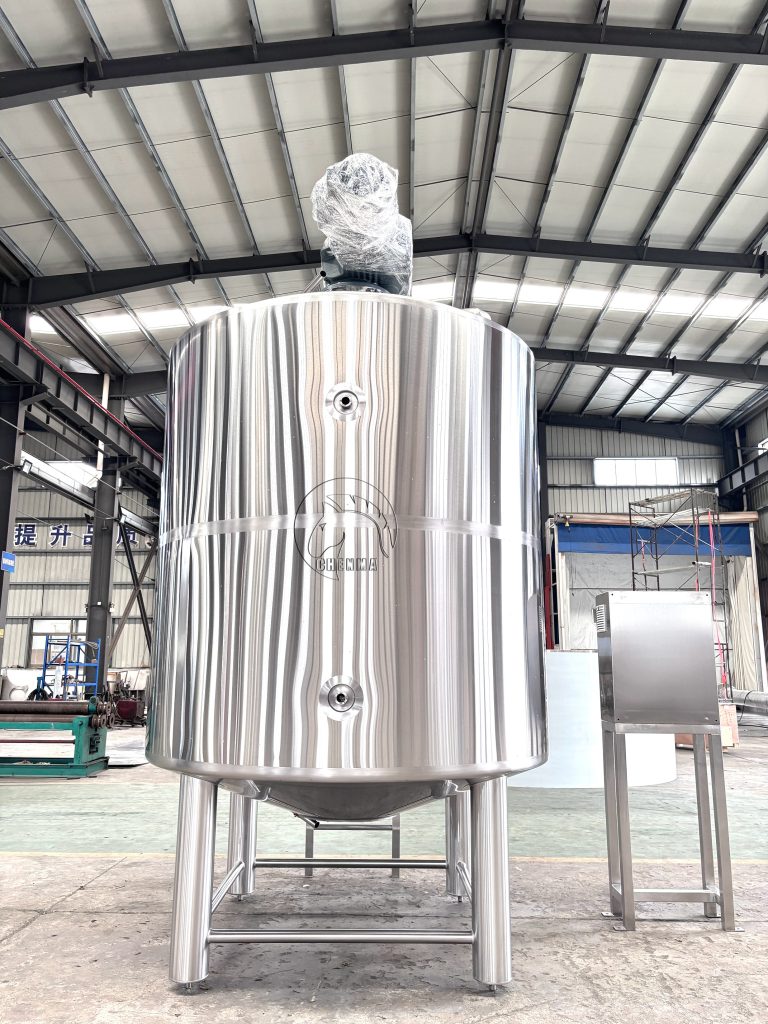

5000L Dairy Fermentation Tank

5000L Dairy Fermentation Tank

5000L Dairy Fermentation Tank is designed for the hygienic fermentation and mixing of dairy products such as yogurt, cultured milk, kefir, sour cream, and other fermented beverages. Manufactured from high-quality food-grade stainless steel316L, the tank provides excellent corrosion resistance, easy cleaning, and long service life.equipped with a heating/cooling jacket, precision temperature control, and an efficient agitator, the tank ensures uniform fermentation conditions and consistent product quality.

Features:

1.Sanitary Stainless steel,inside for the tank will be 2B polish;

2.Inner body diameter is 1800mm, thickness is 4mm, material is stainless steel 316L;

3.Cylinder height:3812mm;

4.Upper head: diameter:1800mm, thickness 4mm, material: stainless steel316L, conical head, taper angle is 150°; Lower head: diameter: 1800mm,thickness 4mm, material:stainless steel 316L, conical head, taper angle is 140°;

5.Outer cladding: Diameter2000mm, material: stainless steel 304; thickness is 2mm,Bottom outer cladding:conical bottom, thickness is 2mm, material:stainless steel304;

6.Material of parts in contact with the product: SS316L

7.Surface brushed, welding line polish sanding light belt;

8.Effective capacity:5,000L, total capacity: 5,960L;

9.Diameter is 2000mm, height is 3812mm;

10.Conical top and conical bottom;

11.4’’Sterile breathing valve DN400mm;
12.1.5″sterile sample valve, material is stainless steel 316L, brand:LYSF ;
13.2″ discharge outlet assembly;

14.2″ material inlet;

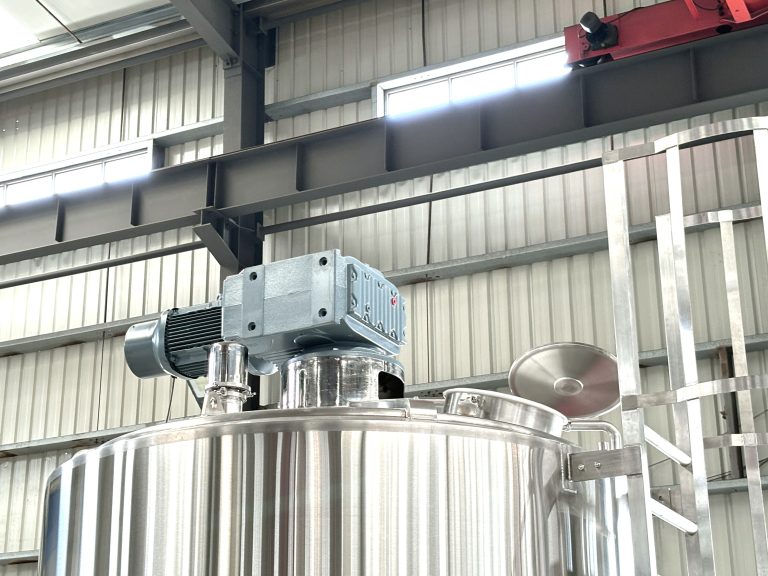

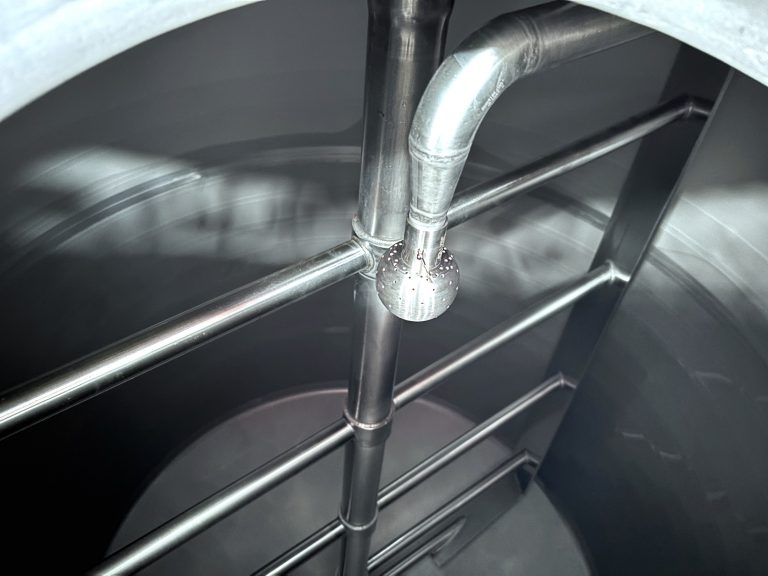

15.Top frame type agitator system: stirring power is 7.5KW , 29rpm, variable frequency, material is stainless steel 316L, and aigtator motor brand is SEW;

16.PU insulation, thickness: 100mm;
17.Fully welded cladding;
18.Welding method: TIG welding;

19.There are 2pcs CIP spray ball, brand:LYSF;

20.Bimetallic thermometer;

21.With ladder for the tank, material: stainless steel 304;

22.With coil pipe for heating/cooling, heating exchange are is 5.3m2, thickness is 3mm,volume is 159L, material is stainless steel 304;

23.Temperature sensor, material:stainless steel 316L, brand: IFM;

24.Liquid level switch, material:stainless steel 316L, brand: IFM;

25.Liquid level differential pressure sensor, material: stainless steel 316L, brand: IFM;

26.Stainless steel legs with adjusting bolt,with bigger and thicker base plate, with screw assembly to adjust leg height;

27.Complete with associated valves and fittings.
