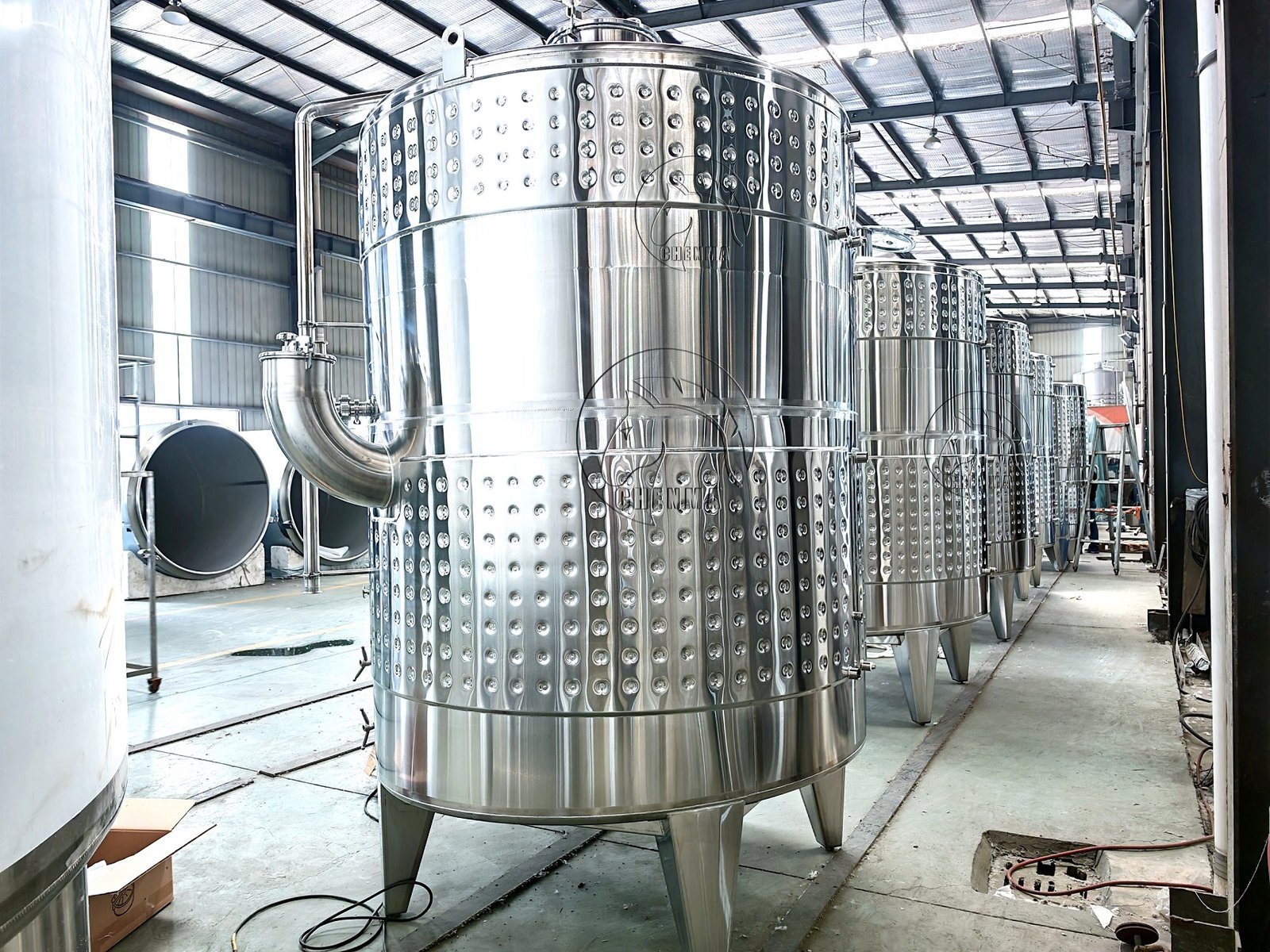

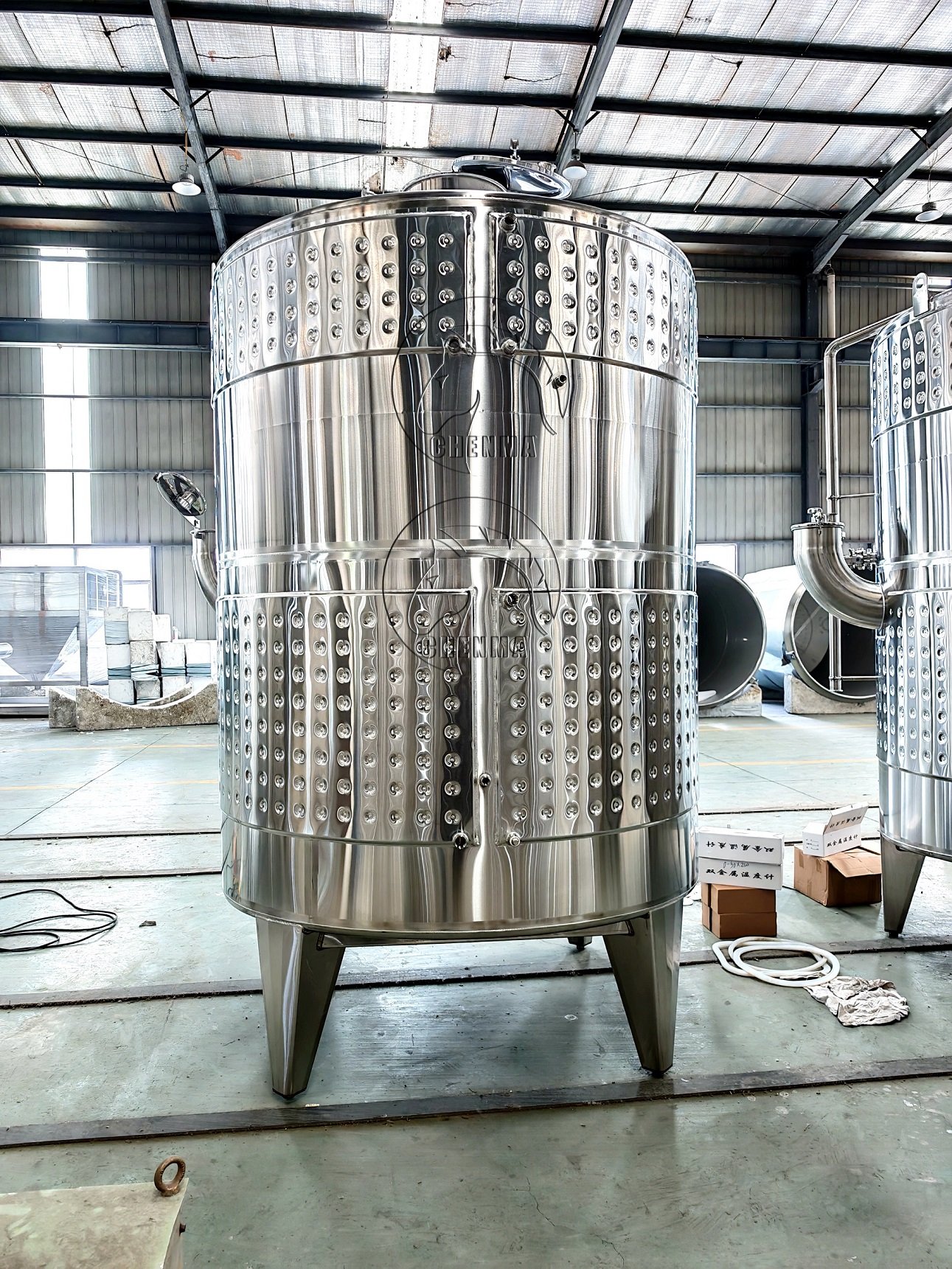

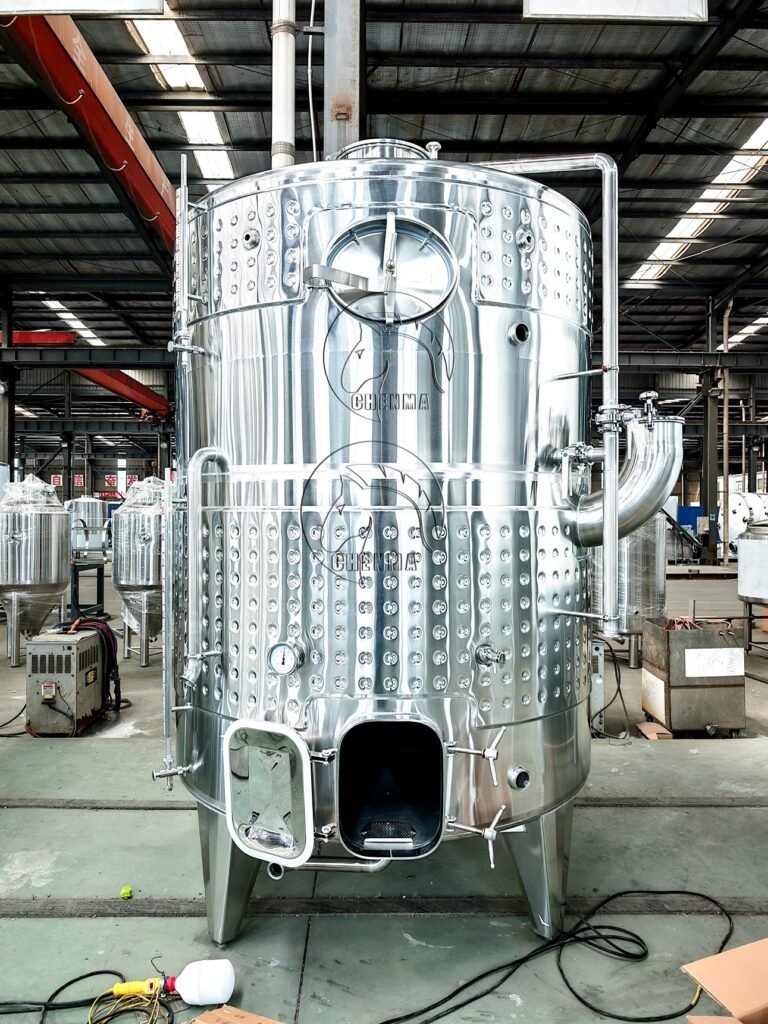

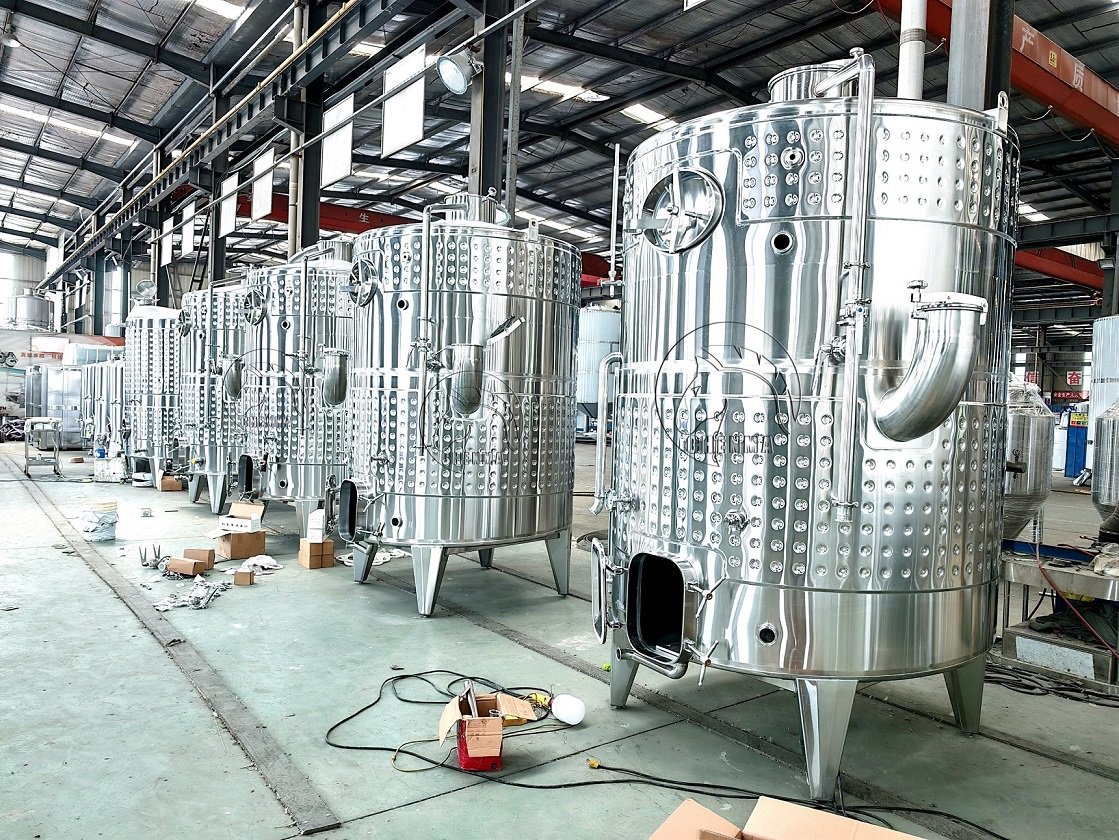

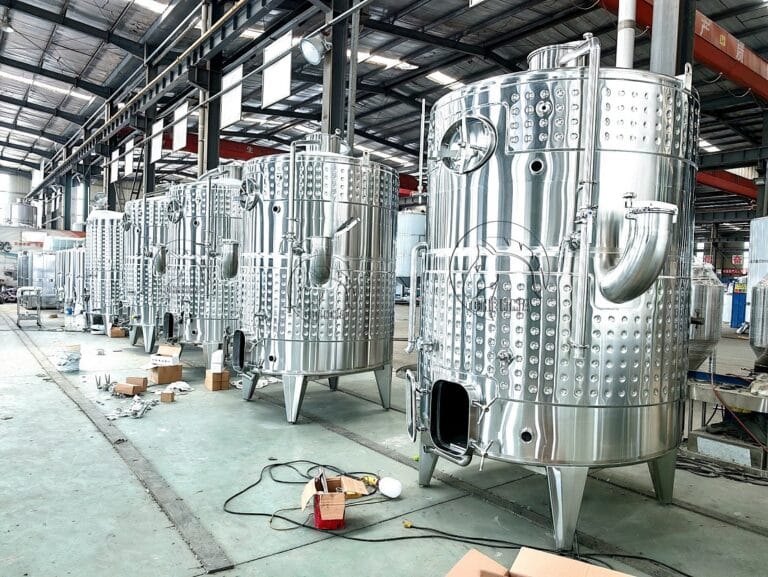

5000L Stackable Wine Fermentation Tank

 5000L stackable wine fermentation tank

5000L stackable wine fermentation tank that consists of two stackable units (2000L + 3000L) is a versatile solution for winemakers looking to optimize space and production efficiency.

The specification for 5000L stackable wine fermentation tank as follows:

1.Food grade stainless steel 304,thickness of material:2.5mm;

2.Volume: 3m3+2m3;

2m3 white wine fermenter:

1.Food grade stainless steel 304,thickness of material:2.5mm;

2.Volume: 2000L;

3.Centra conical top;
4.0.75’’Sample valve;
5.CIP – rotary spray ball;
6.2’’Wine outlet and drain outlet assembly, tri-clamp connection;
7.Dimple cooling jacket;

8.Jacket inlet&outlet 1″female thread;
9. Fully welded;

10.Top Manhole Cover, the size for the top manhole is DN400mm;
11.Side oval manway, the size for the manway is 430mmx330mm;

12.Inside of tank will be pickling and passivation, internal welding line will be polished;
13.PT 100 Temperature probe;
14.2″ Butterfly valves;

15. Conical bottom;

16.2″ Breather valve;

17.Liquid level gauge;

18.Lift lugs;

19.Bimetallic thermometer;

20.Stainless steel legs with bigger and thicker base plate, with screw assembly to adjust leg height.

3m3 red wine fermenter:

1.Food grade stainless steel 304,thickness of material:2.5mm;

2.Volume: 3000L;
3.0.75’’Sample valve;
4.CIP – rotary spray ball;
5.2’’Wine outlet and drain outlet assembly, tri-clamp connection;
6.Dimple cooling jacket and thickness of cooling jacket is 1.5mm;

7.Jacket inlet&outlet 1″female thread;
8.Side rectangle manway, the size for the manway is 430mmx330mm;

9.Inside of tank will be pickling and passivation, internal welding line will be polished;
10.PT 100 Temperature Probe;
11.2″ Butterfly valves;

12. Sloped flat bottom;

13.2″ Breather valve;

14.Liquid level gauge;

15.Lift lugs;

16.Bimetallic thermometer;

17.There is a filter screen inside of tank, the filter screen can be removeable;

18.Stainless steel legs with bigger and thicker base plate, with screw assembly to adjust leg height.

5000L stackable wine fermentation tank composed of two units (2000L + 3000L) is a modular system designed for efficient wine production, particularly in space-constrained wineries.
