5000L Stainless Steel 316L Yogurt Fermentation Tank

5000L Stainless Steel 316L Yogurt Fermentation Tank

5000L stainless steel yogurt fermentation tank, made of food grade  stainless steel316L, adopts double-layer insulation structure, with full temperature control system to keep constant fermentation temperature steadily.

The specification list for 5000L yogurt fermentation tank as follows:

1).The part in contact with the yogurt is stainless steel 316L;

2).The cladding is stainless steel 304, the thickness is 2mm;

3).The inner is stainless steel 316L, the thickness is 3mm;

4).Effective capacity:5000L, total capacity:5455L;

5).The dimension: diameter:2150mm and height:3830mm;

6).Top manway, the size for manway:DN400mm;

7).2’’Sterile breather valve on top of tank;

8).2’’ milk inlet and 3’’ milk outlet;

9).2’’port on the tank for connecting the pH measurement;

10)1.5’’sterile sample valve;

11).Bimetal thermometer

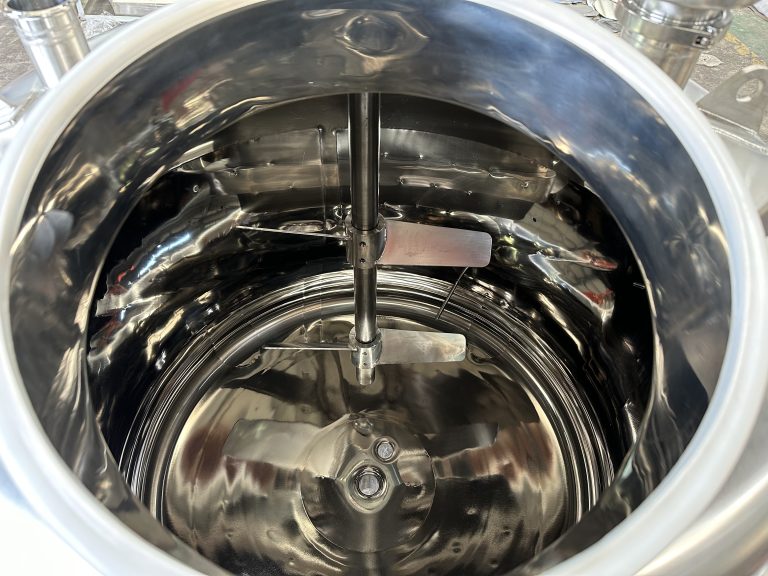

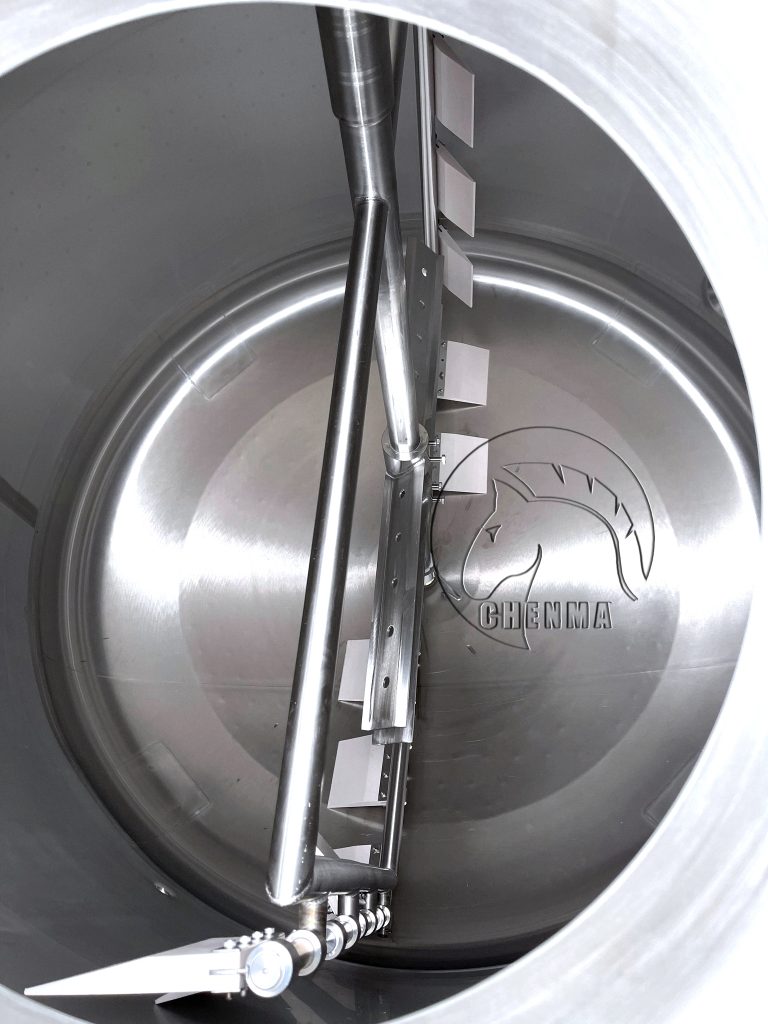

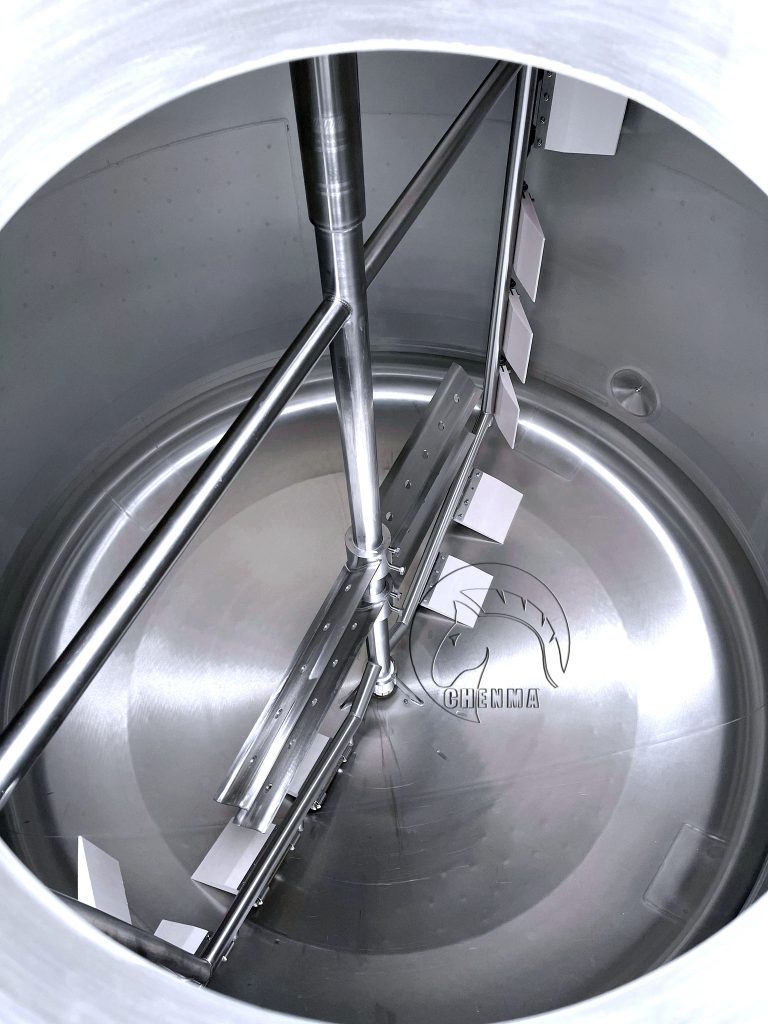

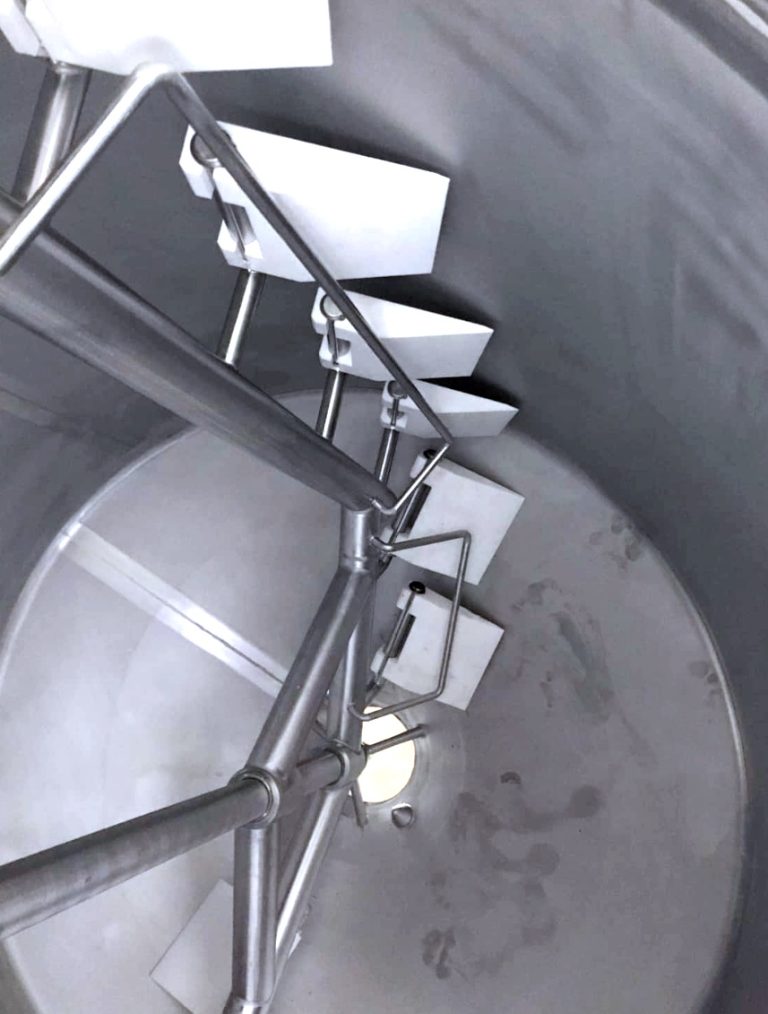

12).With anchor type agitator and power is 5.5kw, Speed is 30 rpm, with frequecty conversion, material is stainless steel 316L ;

13).Conical top and conical bottom, thickness is 4mm, upper conical and bottom conical angle is 150degree;

14).The tank with jacket can be heating with steam (up to 94°C) and also can be cooling (up to 4°C);

15).Jacket heating exchange area is 5.1M2, material is  stainless steel304, volume is 152L;

16).Working pressure of the jacket: 2 bar;

17).Working pressure of the product: atmospheric pressure.

18).The tank with aluminum silicate insulation and thickness of insulation is 100mm;

19).With 2pcs CIP rotating spray balls;
20).Fully welded cladding;

21).Stainless steel 4pcs legs with screw assembly to adjust leg height.
