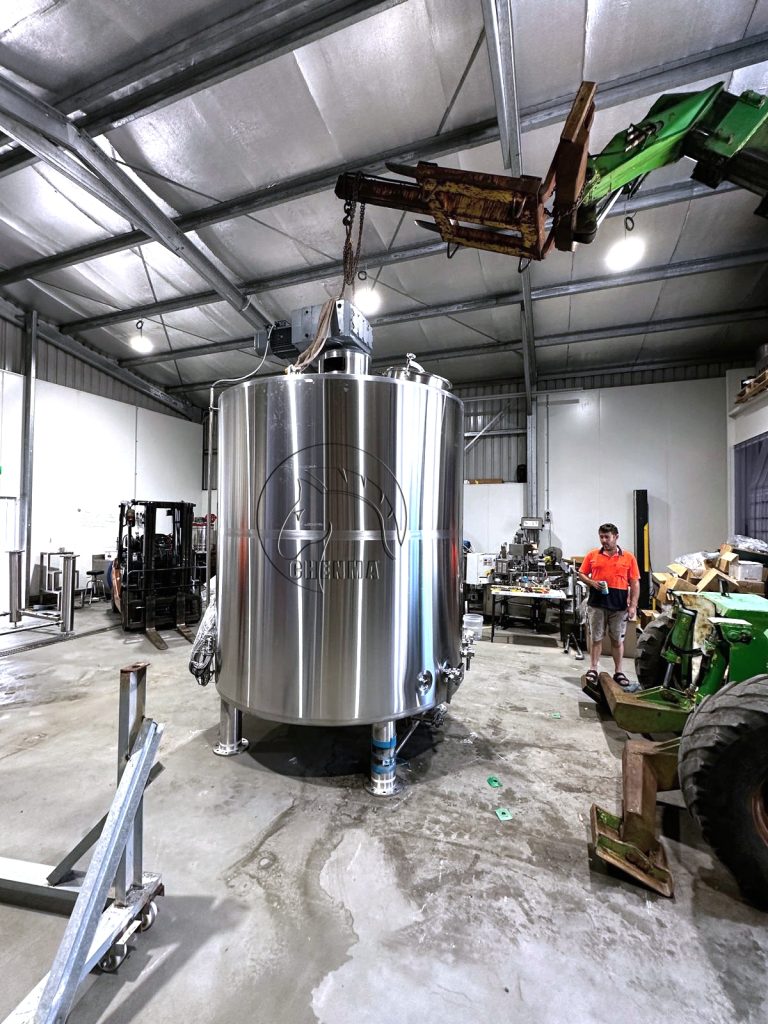

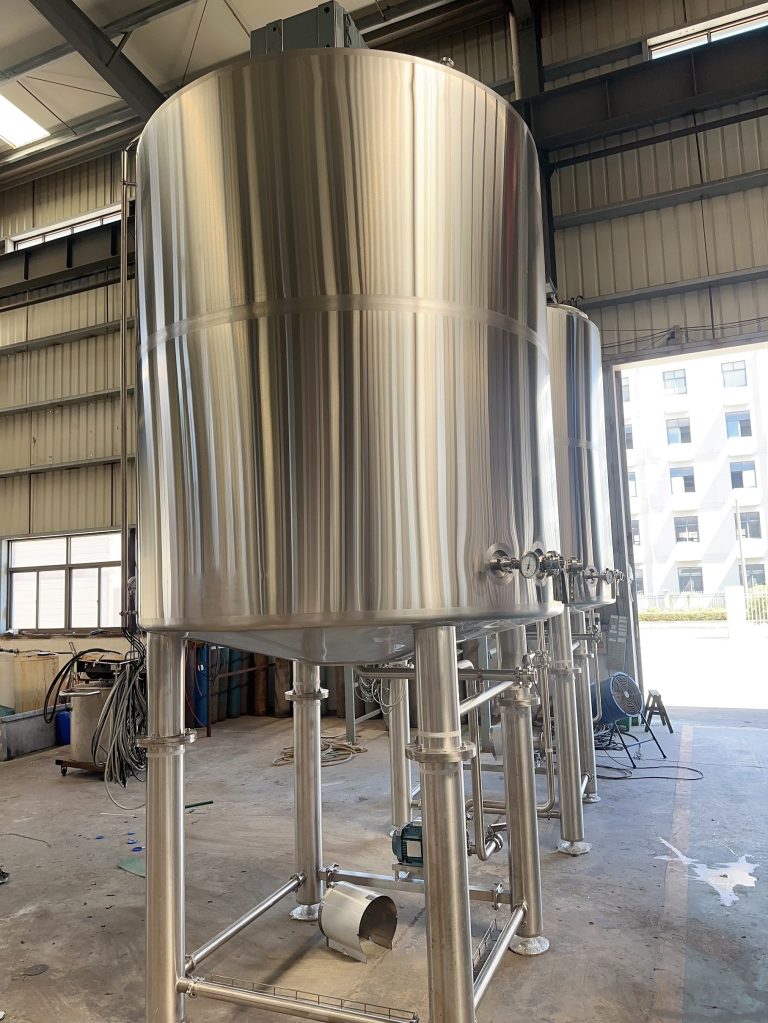

5000L Stainless Steel liquid Soap Mixing Tank

5000L Stainless Steel liquid Soap Mixing Tank

5000 L stainless steel liquid soap mixing tank suitable for industrial mixing, emulsifying, heating/cooling, and general liquid soap/shampoo/detergent production, and the specification for the stainless steel liquid soap mixing tanks as follows:

1.The part in contact with the product is stainless steel 316L/304;

2.The cladding is stainless steel 304, the thickness is 2mm;

3.The inner is stainless steel 316L/304, the thickness is 3mm;

4.Effective capacity:5000L, total capacity:5455L;

5.The dimension: diameter:2150mm and height:3830mm;

6.Top manway, the size for manway:DN400mm;

7.2’’Sterile breather valve on top of tank;

8.2’’liquid inlet and 2’’ liquid outlet;

9.PT100 temperature sensor;

10.1.5’’sterile sample valve;

11.Bimetal thermometer

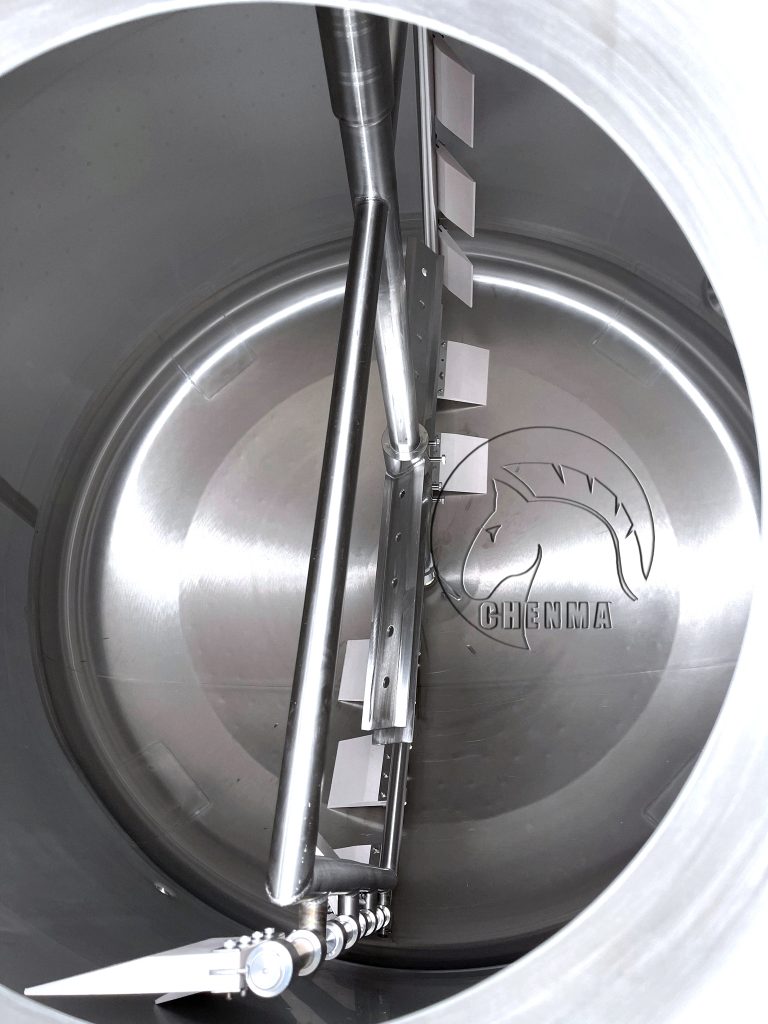

12.Anchor type agitator with PTFE scrapers and power is 7.5kw, Speed is 20 rpm, with frequecty conversion, material is stainless steel 316L/304;

13.Conical top and conical bottom, thickness is 4mm, upper conical and bottom conical angle is 150degree;

14.The tank with heating/cooling jacket;

15.Jacket heating exchange area is 5.1M2, material is stainless steel304, volume is 152L;

16.Working pressure of the jacket: 2 bar;

17.Working pressure of the product: atmospheric pressure.

18.The tank with aluminum silicate insulation and thickness of insulation is 80mm;

19.With 2pcs CIP rotating spray balls;
20.Fully welded cladding;

21.Stainless steel 4pcs legs with screw assembly to adjust leg height;
