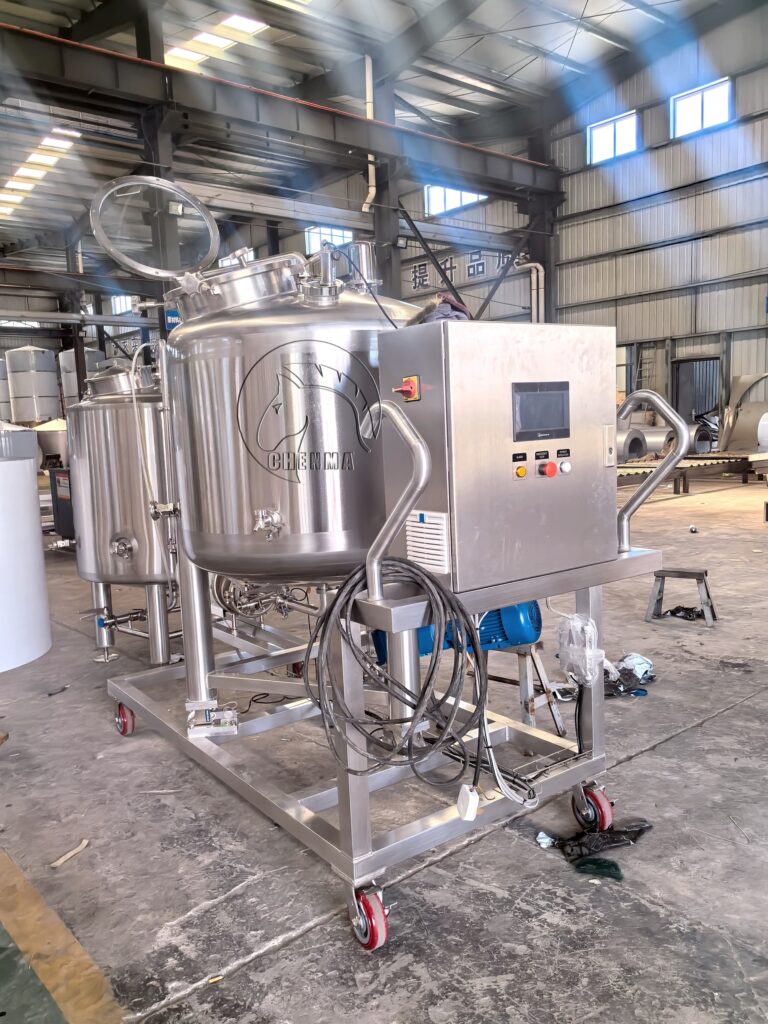

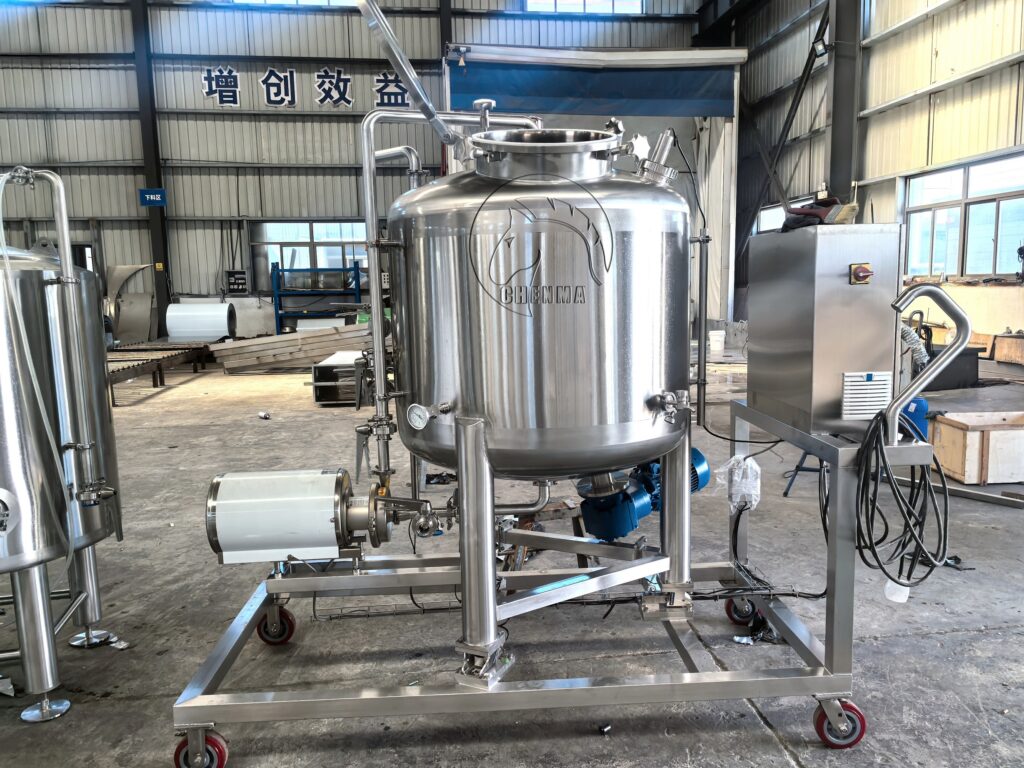

500L Stainless Steel 316L Saline Mixing Tank

            500L Stainless Steel 316L Saline Mixing Tank

500L stainless steel 316L saline mixing tank is a industrial-grade vessel designed for the precise preparation, storage, and dispensing of saline solutions. Material with stainless steel 316L, it particularly suitable for applications requiring high corrosion resistance, such as in pharmaceutical, biomedical, food and beverage, and cosmetic industries.

The specification for 500L stainless steel 316L saline mixing tank as follows:

1.Total Capacity: 700L, working capacity: 500L;

2.Single wall;

3.Outer: material is SUS316L, full welded; thickness is 3mm;

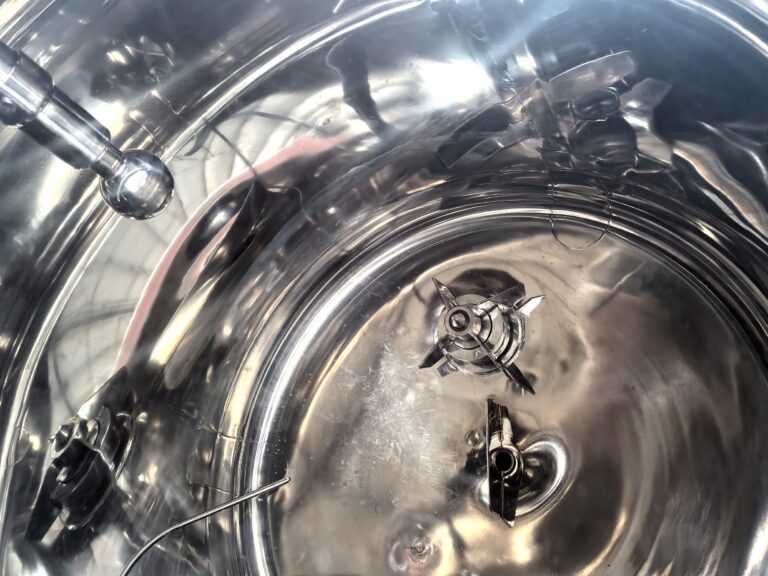

4.Material with SUS316L,inside with mirror polishing, welding line with mirror polish, contact with the material is stainless steel 316L;

5.Dished top and dished bottom;

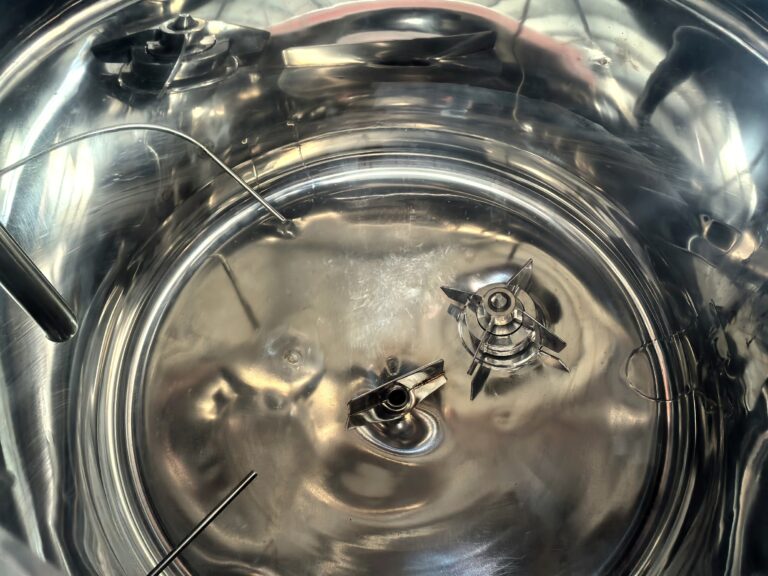

6.Magnetic stirring at the bottom, NORD brand motor, motor power:2.2kw, RPM:370r/minute;

7.CIP 360°rotary spray ball;

8.Stainless steel 316L manway on top, size:DN450mm;

9.Sight light;

10.1.5’’Venting valve;

11.1.5’’Liquid inlet and outlet;

12.1.5’’ Drain port;

13.Stainless steel circulation pump, contact with the material is stainless steel 316L, capacity for the pump:3m3/hour and pump lift:24meters, brand:LYSF;

14.1.5’’ return port;

15.Stainless steel 304 controller, motor’s on/off, and variable speed control, danfoss variable frequency device, it will be control the agitator’s speed and show the temperature for the tank;

16.Completely SUS304 heavy duty legs;

17.With Mettler loading cell;

18.Assorted stainless steel 316L pipeline and valves.
