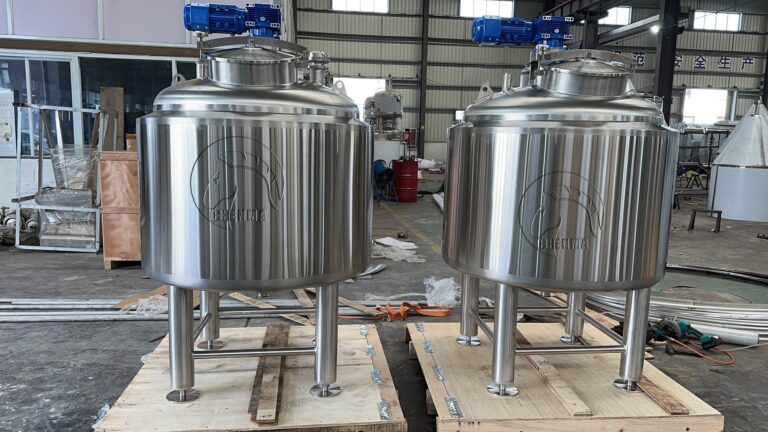

500L Stainless Steel Juice Mixing Tank

500L Stainless Steel Juice Mixing Tank

500L stainless steel juice mixing tank is a specialized industrial vessel designed for blending, cooling fruit juices, concentrates, syrups, and other beverage ingredients. It ensures hygiene, efficient mixing, and temperature control, making it ideal for the food & beverage industry.

1.Sanitary Stainless steel 304/316L, thickness for inner body is 3mm and thickness for cladding is 2mm;

2.Top manway, the size for top manway:DN400mm;

3.Internal with mirror polish;

4.2’’breather valve on top of tank;

5.1.5’’ inlet port on top of tank;

6.2’’ juice outlet and 2’’ drain outlet with butterfly valve;

7.1.5’’ sample valve;

8.Bimetal thermometer

9.It will be mixing for Juice;

10.Effective capacity:500L;

11.Domed top and conical bottom;

12.Mixing power is 2kw, with frequency conversion;

13.With cooling jacket to store juice at 4℃ for natch preparation before packaging;

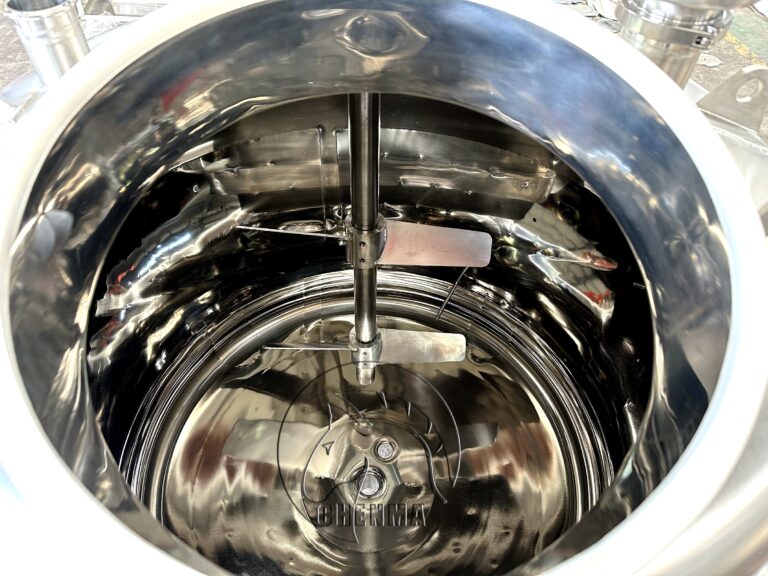

14.With paddle mixer and the stirring motor with frequency conversion;

15.The tank with aluminum silicate insulation and thickness of insulation is 80mm;

16.With PT 100 temperature sensor;

17.The tank also with one control panel, it will be control the temperature for the tank and also control the agitator’s speed;

18.With 2pcs CIP rotating spray balls;
19.Fully welded cladding;

20.Stainless steel 4pcs legs with screw assembly to adjust leg height.

500L stainless steel juice mixing tank is a versatile piece of equipment used in beverage production, dairy processing, and food industries for blending, mixing, and storing liquids.
