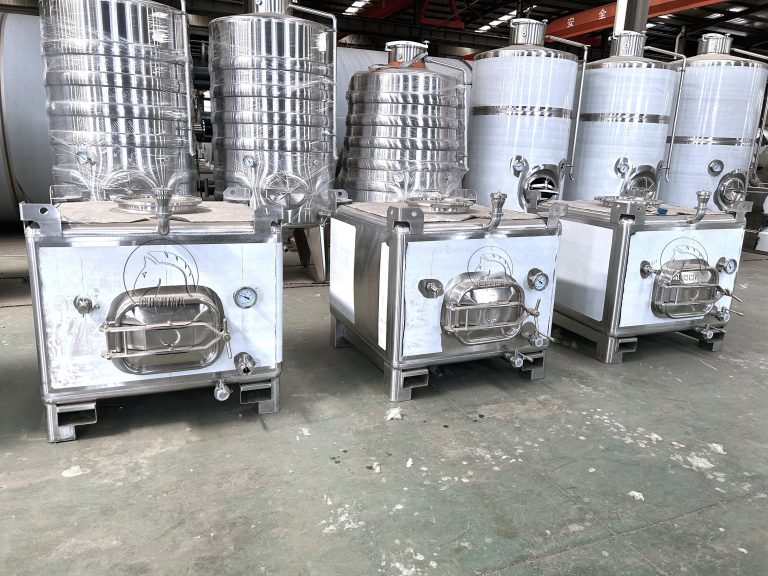

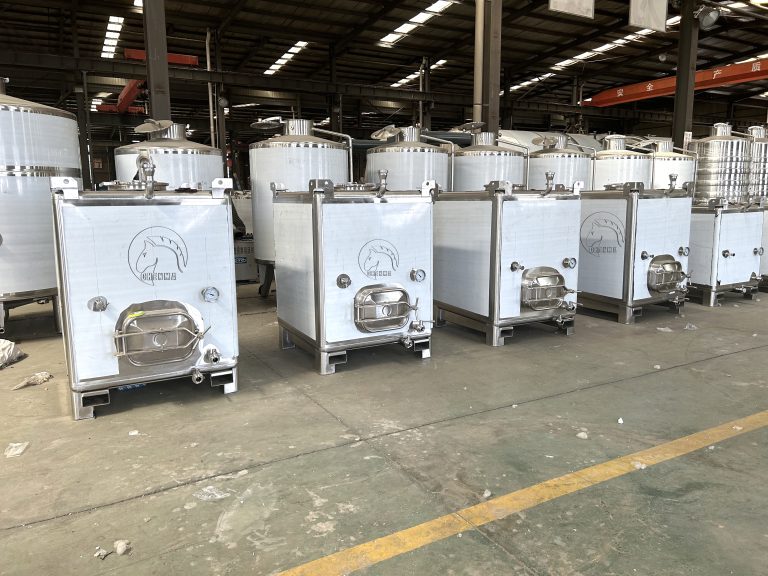

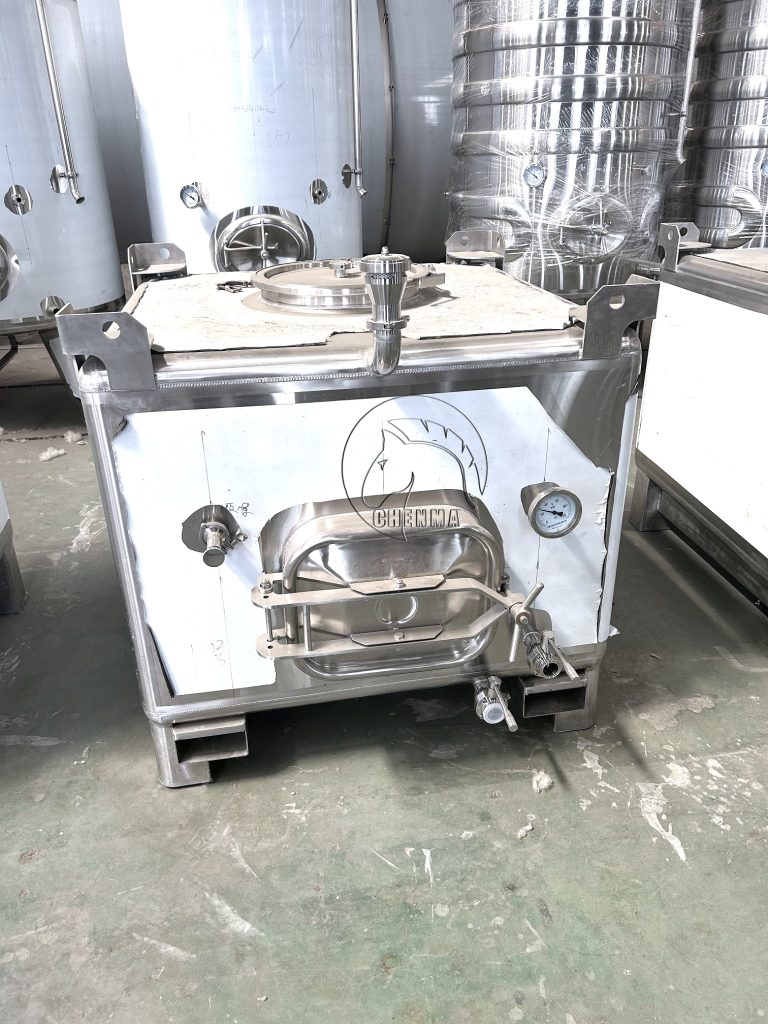

500L Stainless Steel Square Tank for Wine or Spirits

          500L Stainless Steel Square Tank for Wine or Spirits

The 500L Stainless Steel Square Tank is designed for the storage, blending, and aging of wine, spirits, and other beverage products. Constructed from high-quality food-grade stainless steel, it offers excellent corrosion resistance, hygienic performance, and long-term durability. Its square design maximizes storage efficiency while providing easy handling and installation. Ideal for wineries, distilleries, breweries, and beverage processing facilities.

1.Sanitary Stainless steel 304, thickness of material is 3mm;

2.Effective capacity: 500L;
3. 0.75″Sample valve;
4.1.5″ drain outlet assembly with tri-clamp connection;

5.1.5″ outlet assembly with tri-clamp connection;
6. Fully welded cladding;
7.Top manway and the size for the manway is DN200mm;
8. Bimetal thermometer;

9.Just the back side with cooling jacket, 1″ coolant inlet and coolant outlet;

10.With side rectangle manway door, the size is 430mmx330mm;

11.Closed top tank;

12.Stackable legs.
