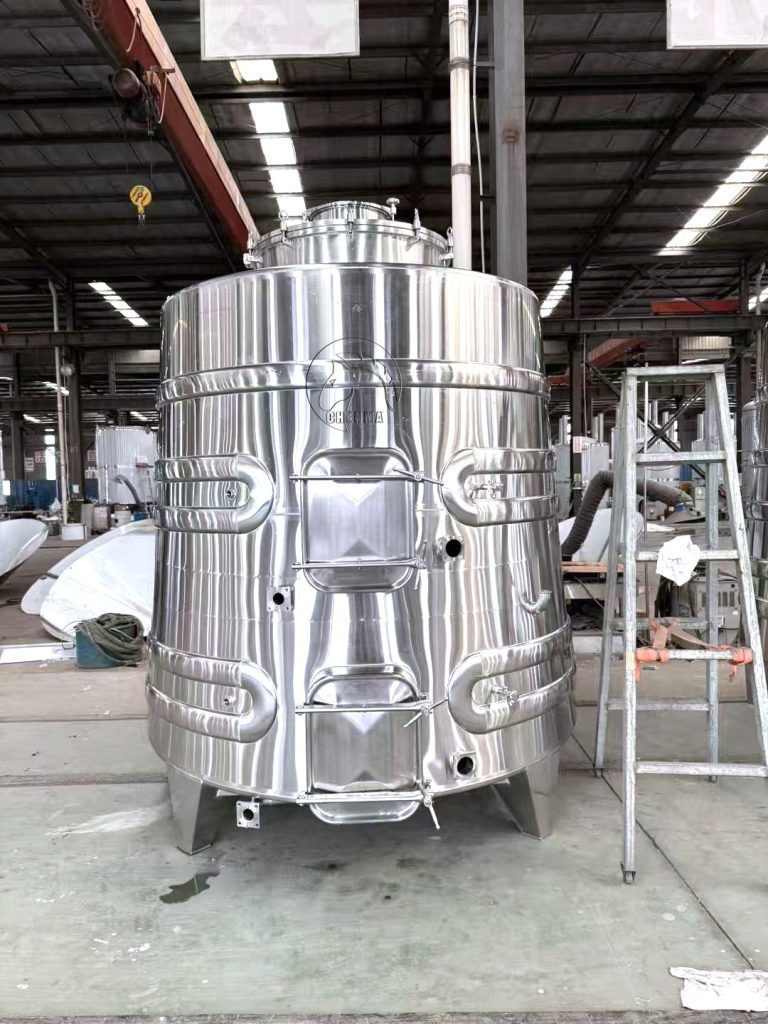

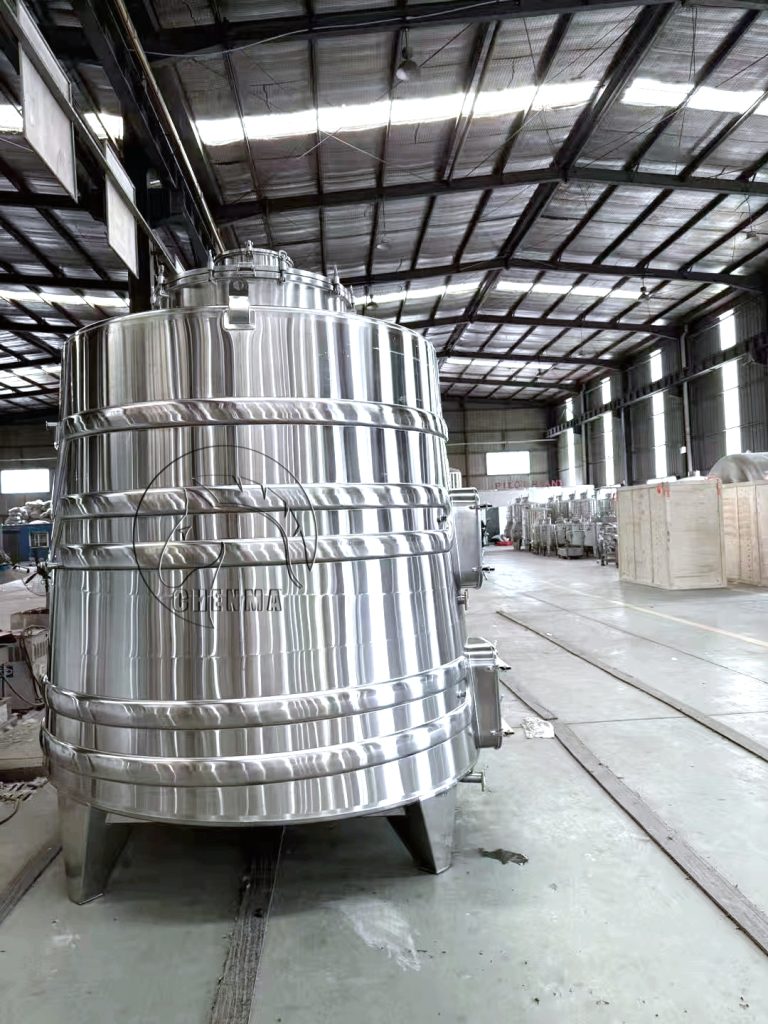

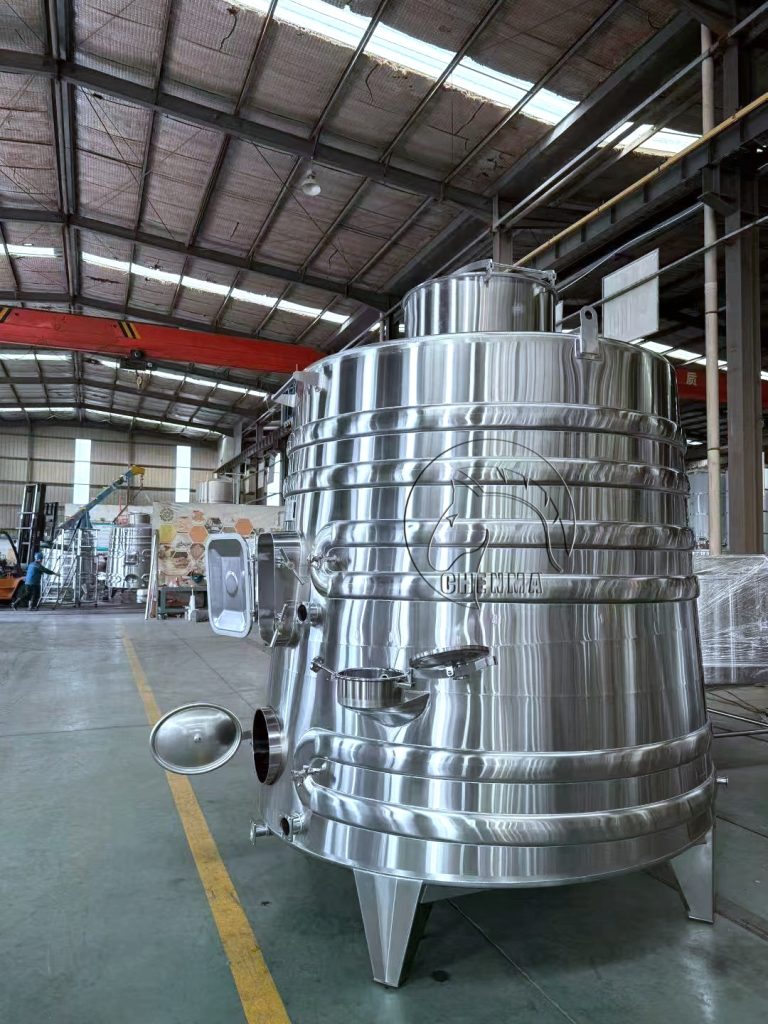

Combi Tanks 2000L+3000L Red Wine Fermentation Tank
The Combi Tanks system includes one 2000L and one 3000L stainless steel red wine fermentation tank, specially designed for red wine fermentation and maceration processes. Made of food-grade SUS304, the tanks feature a cooling jacket, top manway, grape skin discharge door, temperature control system, and CIP cleaning device.the tanks are suitable for wineries, vineyards, pilot wine production, and commercial wine fermentation applications, the combined capacity provides flexible production management for different grape varieties and fermentation batches.
Product details
Combi Tanks 2000L+3000L Red Wine Fermentation Tank
Food grade stainless steel 304,inside for the tank will be pickling and passivation and internal welding line will be polished,volume: 2000L+3000L.
2000L red wine fermentation on the top:
1.Food grade stainless steel 304, thickness is 2mm;
2.Volume: 2000L;
3.Conical centric top;
4.0.75’’Sample valve;
5.CIP – rotary spray ball;
6.Dimple cooling jacket;
7.Jacket inlet&outlet 1″female thread;
8. Fully welded;
9.Top Manhole Cover, the size for the top manhole is DN400mm;
10.Side rectangle manway, the size for the manway is 530mmx430mm;
11.Inside of tank will be pickling and passivation, internal welding line will be polished;
12.Dimple cooling jacket and thickness of cooling jacket is 1.5mm;
13.PT 100 Temperature Probe;
14.2″drain outlet assembly, tri-clamp connection;
15.2″racking valve, tril-clamp connection;
16. Sloped bottom;
17.2″ Breather valve;
18.Lift lugs;
19.Bimetallic thermometer;
20.Stainless steel legs with bigger and thicker base plate, with screw assembly to adjust leg height.
3000L Bottom re wine fermentation tank:
1.Sanitary Stainless steel 304, inside for the tank will be pickling and passivation and internal welding line will be polished;
2.Effective capacity: 3000L;
3.Thickness is 2mm;
4.Flat top;
5.0.75″Sample valve;
6.2″Wine outlet and drain outlet assembly, Tri-clamp connection;
7.2″racking valve, tri-clamp connection;
8.Dimple cooling jacket and thickness of cooling jacket is 1.5mm;
9.Fully welded cladding;
10.Side rectangle manway, the size for the oval manway is 530mmx430mm;
11.PT100 temperature probe;
12.1″Glycol inlet/outlet;
13.2″ Breather valve;
14.Sloped bottom;
15.Bimetallic thermometer;
16.Stainless steel legs with screw assembly to adjust leg height.
