Plate Heat Exchanger Sterilizer

Plate Heat Exchanger Sterilizer is a compact, high-efficiency thermal processing unit that uses corrugated stainless steel plates to heat, sterilize, and cool liquid products in a continuous flow.It combines heating, holding, cooling, and heat recovery in one integrated system, widely used for pasteurization and UHT sterilization in food and beverage production.

Product details

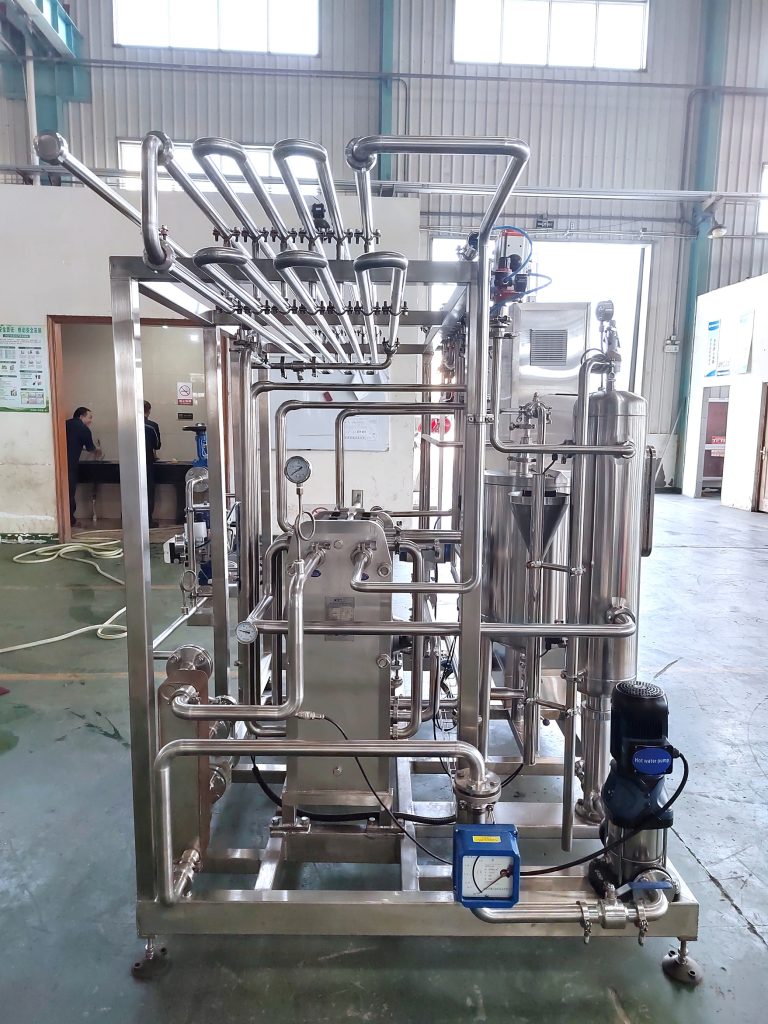

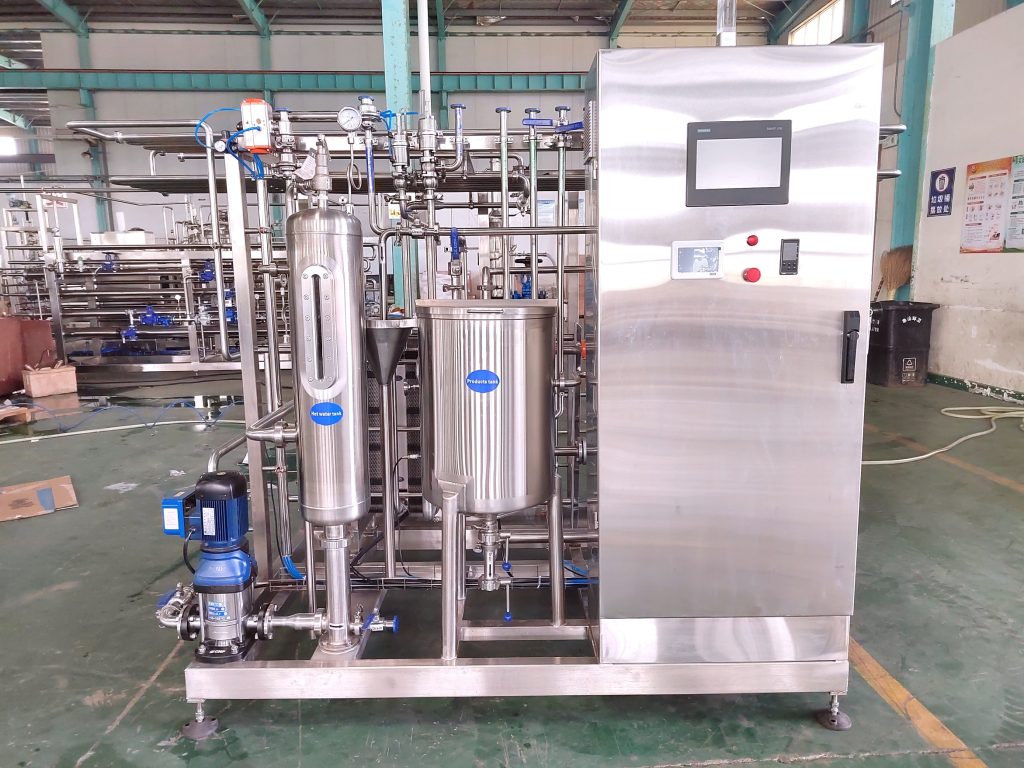

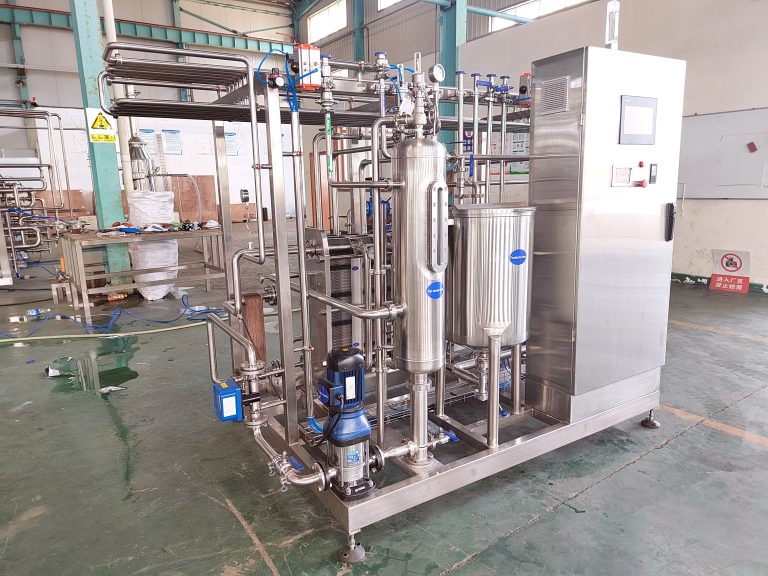

Plate Heat Exchanger Sterilizer

Plate type sterlizer includes plate pasteurizer and plate UHT.

This unit is used as pasteurizer for fresh milk, flavor milk, juice, tea,alcohol, ice cream and other products with heat sensitivity, and alsopre-sterilize milk when produce Pasteurized Milk(long life milk).

The plate sterilizer can keep products shelf life to be 3-6month whenmatch with aseptic filler. The plate sterlizer can be connected withseparator, homogenizer and degasser to reach different function.

The machine is featured on high heat recovery, lower energy cost, strictdesign on the construction and easy operation, simple maintenance

Pasteurizer:5°C→65°C(homogenization)→85~95°C(15S)→5°C

UHT sterilizer:5°C→65°C(homogenization)→137°C(3S)→5°C/85-90°C(juice hot filling)

This equipment is composed of

Plate type heat exchanger

Products balance tank

Hot water balance tank

Hot water pump of inlet

Products pump

Hot water generator

Electric control system including Temperature recorder

Stainless steel pipe, valve etc.
