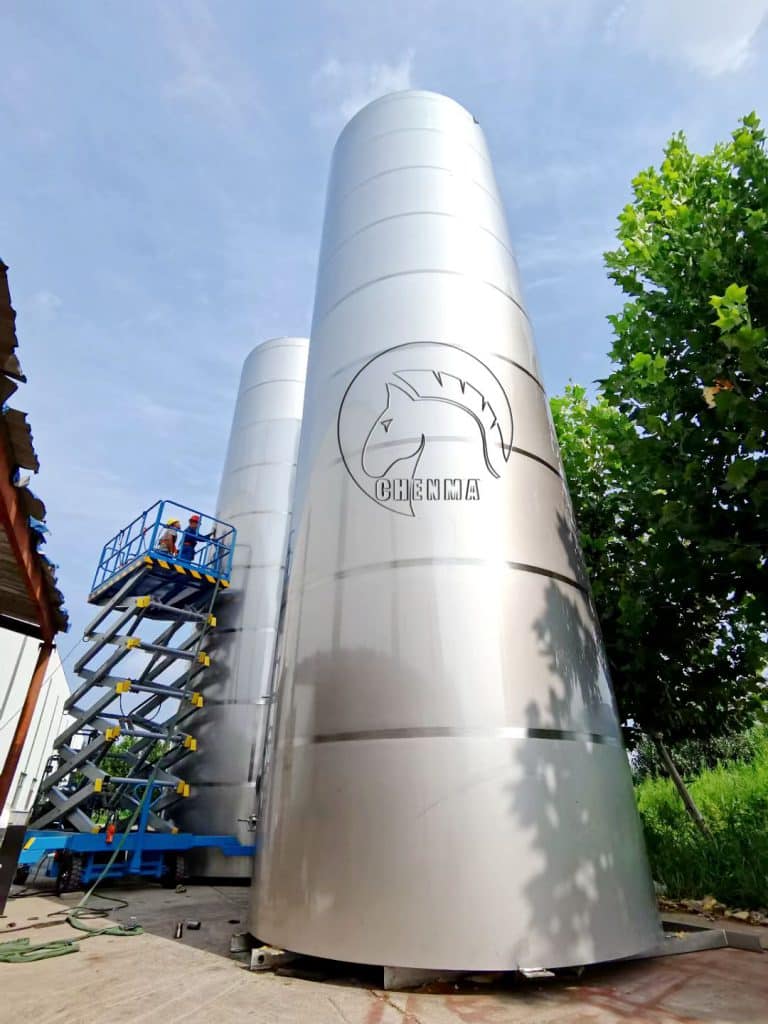

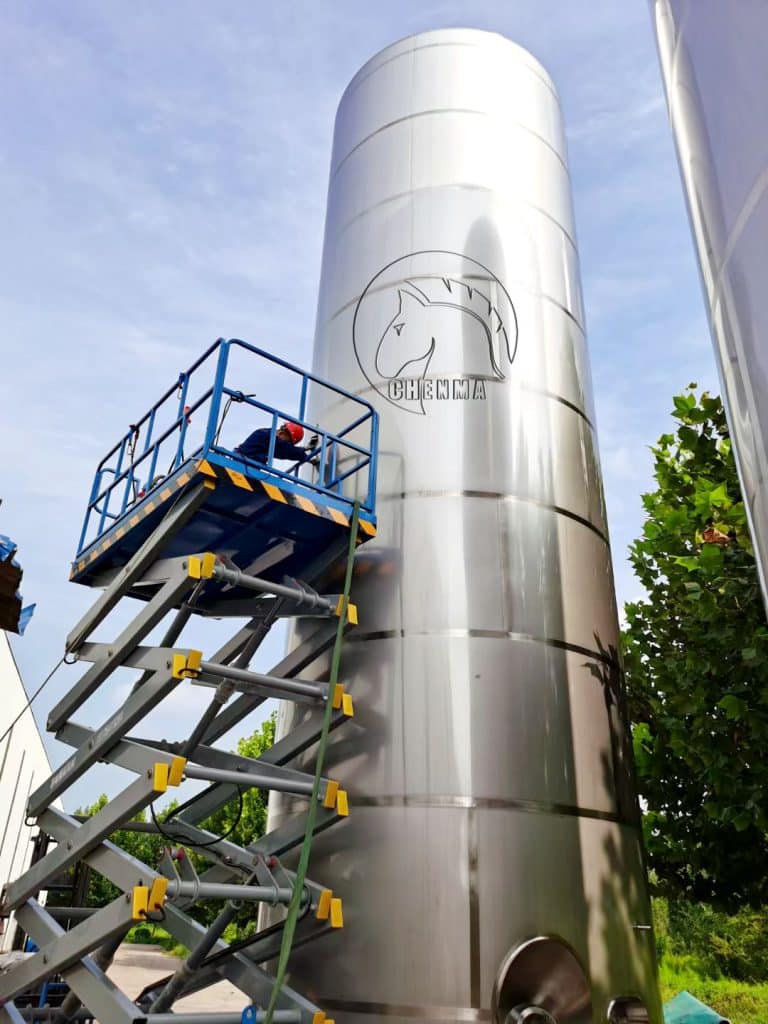

Stainless Steel Chicken Duck Fats Oil Storage Tank

Stainless Steel Chicken Duck Fats Oil Storage Tank

Stainless steel chicken and duck fats oil storage tank is specifically designed for the safe and hygienic storage of rendered fats or oils derived from poultry, such as chicken and duck.

Specification for Stainless Steel Chicken Duck Fats Oil Storage Tanks as follows:

• Stainless steel 304/316L
• Conicaltopand conical bottom
•  1.5’’ Sample valve
• CIP – rotary spray ball
• 2’’Oil inlet
• 2’’Oil outlet and drain outlet assembly
• Fully welded cladding
• Side Oval manway, size for the manway is DN530mmx430mm
• 2″ Butterfly valves
• 2″ breather valve
• Ladder rack
• Bimetallic thermometer
• Magnetic flap level gauge
• Stainless steel legs with screw assembly to adjust leg height.

Optional:

• Supporting leg
• Heating jacket
• Mixer
• Side manhole
• Hanrail/ladder
