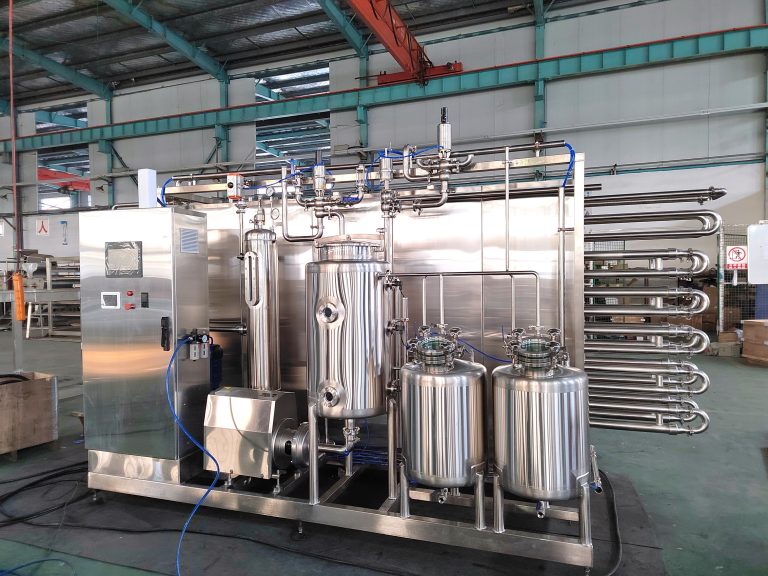

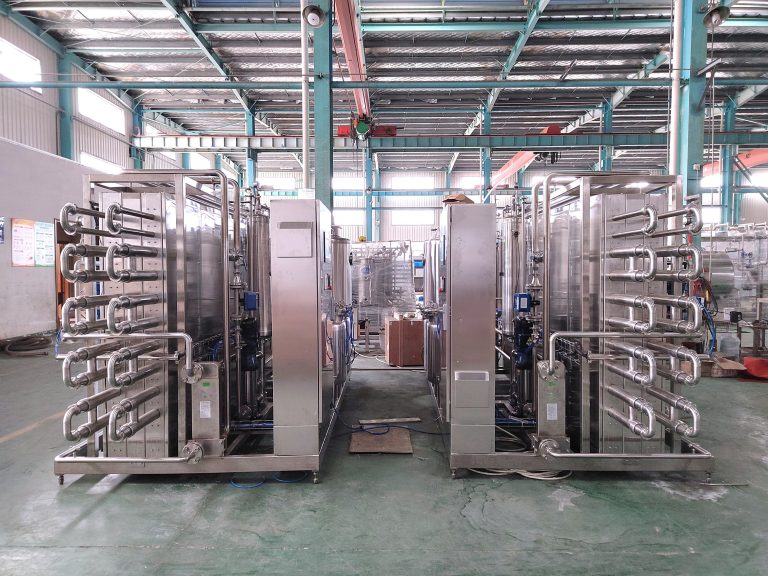

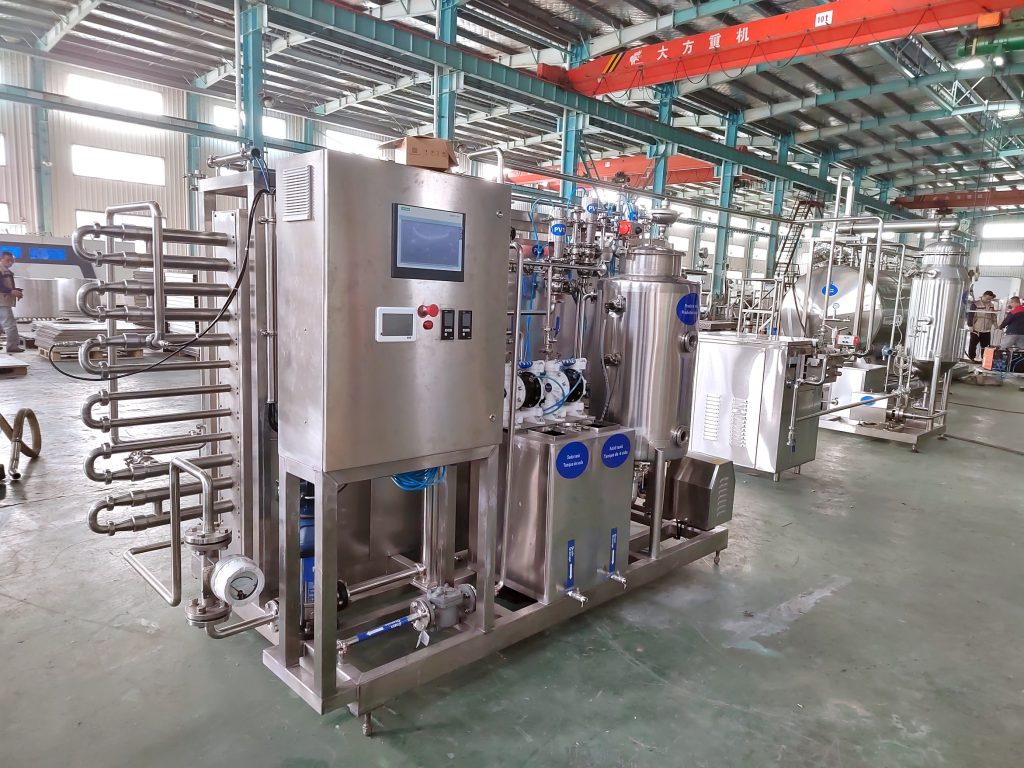

Tubular Type UHT Sterilizer

Tubular Type UHT Sterilizer

Tubular type UHT sterilizer is used for sterilization of fruit juice, tea drink,milk, flavor mik.lt can also be used for aseptic filling, such as Tetra paper brick, Tetra paper Pillow, aseptic soft plastic bag, aseptic PET bottles. The machine can match with homogenizer, de-aerator for different function.

Technical data:

5℃→65℃(homogenizer)→137℃(3-5S)20℃-25℃，for aseptic filling ;

5℃→65℃(homogenizer)→115℃1137℃(5-15S)→88℃-90℃ for hot filling; 5℃→65℃(homogenizer)→115℃/137℃(5-15S)→65℃-70℃for normal temperature filling ;

Tubular type UHT sterilizer is suitable for hot processing of liquid foods and beverage. Compared to the other model, it has the following characteristics:

1)High heat efficiency, can reach to 90% of heat;

2)Temperature difference between the product and the heating medium is small.

3)High automation, control and recorder the ClP cleaning, self sterilizing, and the whole processing steps automatically.

4)Precise and reliable sterilizing temperature control; all the affecting factors such as steam pressure, steam flow rate product flow rate are all controllable: 5)The inside of pipe adopts advanced polish procedure,automatic cleaning and self sterilizing ensures the aseptic condition;

6)Strong safety, the fittings all adopts reliable materials; There is pressure protection and alarm system for steam, hot water, and material.

7)High reliable, main parts such as product pump, hot water pump, all kinds of valves, elements of the electrics are all world-known brands.

8)With self ClP.
