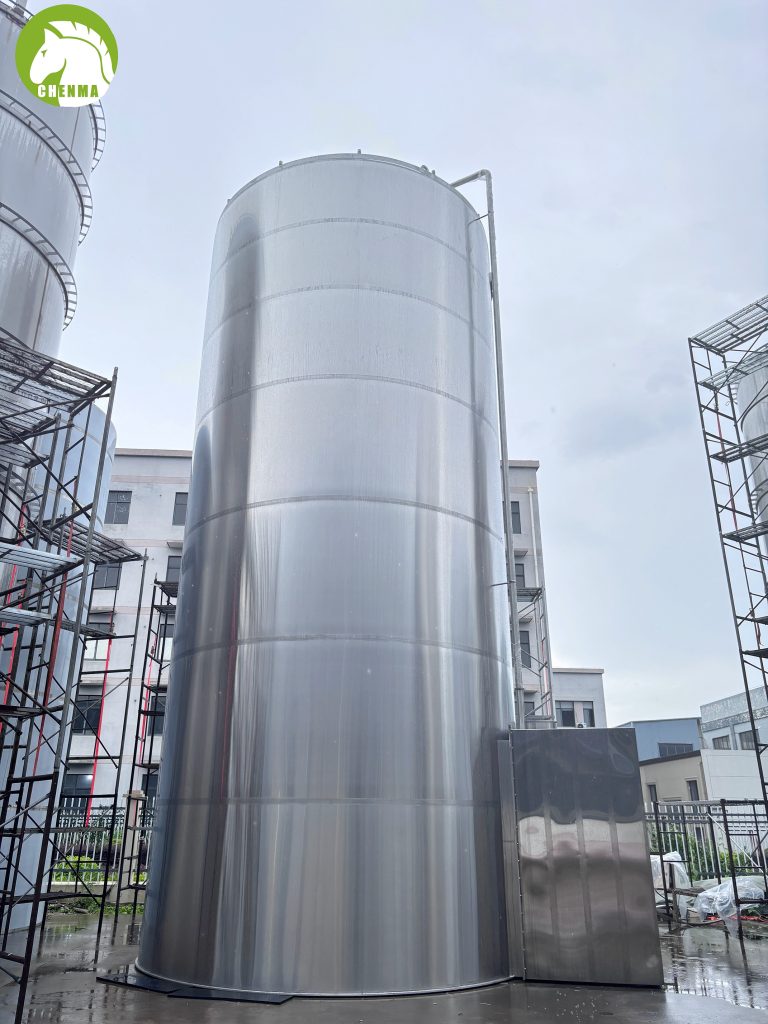

100,000L Raw Milk Storage Silo

100,000L Raw Milk Storage Silo

100,000L raw milk storage silo is a large-capacity stainless steel storage solution designed for dairy farms, milk collection centers, and industrial dairy processing plants. It is specially designed for the hygienic storage of raw milk before further processing.

Specification for 100,000L raw milk storage tank silo as follows:

1.Sanitary Stainless steel,inside for the tank will be 2B polish, material of parts in contact with the product is SS316L;

2.Thickness of inner body is 4mm, cladding thickness is 2mm;

3.Upper head: thickness 3mm, material: stainless steel316L, conical head, taper angle is 150°; Lower head: thickness 5mm, material:stainless steel 316L, conical head, taper angle is 150°;

4.Surface brushed, welding line polish sanding light belt;

5.Effective capacity:100,000L, total capacity: 110,860L;

6.Diameter is 4150mm, height is 9960mm;

7.Equipped with an overflow breathing system DN400mm, material: stainless steel 304;
8.1.5″sterile sample valve, material is stainless steel 316L, brand:LYSF ;
9.4″ milk outlet, with thread connection;

10.3″ milk inlet, with thread connection;

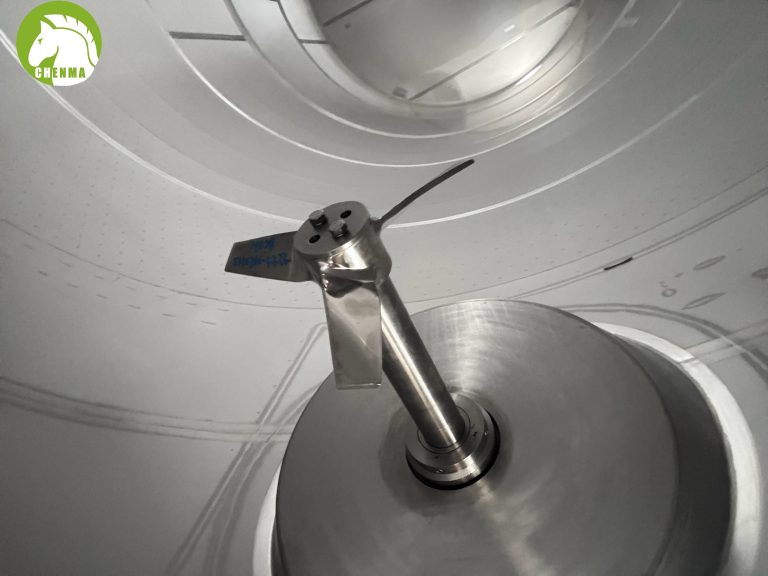

11.Side agitator system: stirring power is11KW , speed is 900 rpm, variable frequency, material is stainless steel 316L, and aigtator motor brand is SEW;

12.PU insulation, thickness: 100mm;

13.With vortex breaker;
14.Fully welded cladding;
15.Welding method: TIG welding;

16.There are 2pcs CIP spray ball, brand:LYSF;

17.Bimetallic thermometer;

18.With cooling jacket, cooling are is 30m2, thickness of cooling jacket is 1.5mm,volume is 150L, material is stainless steel 304;

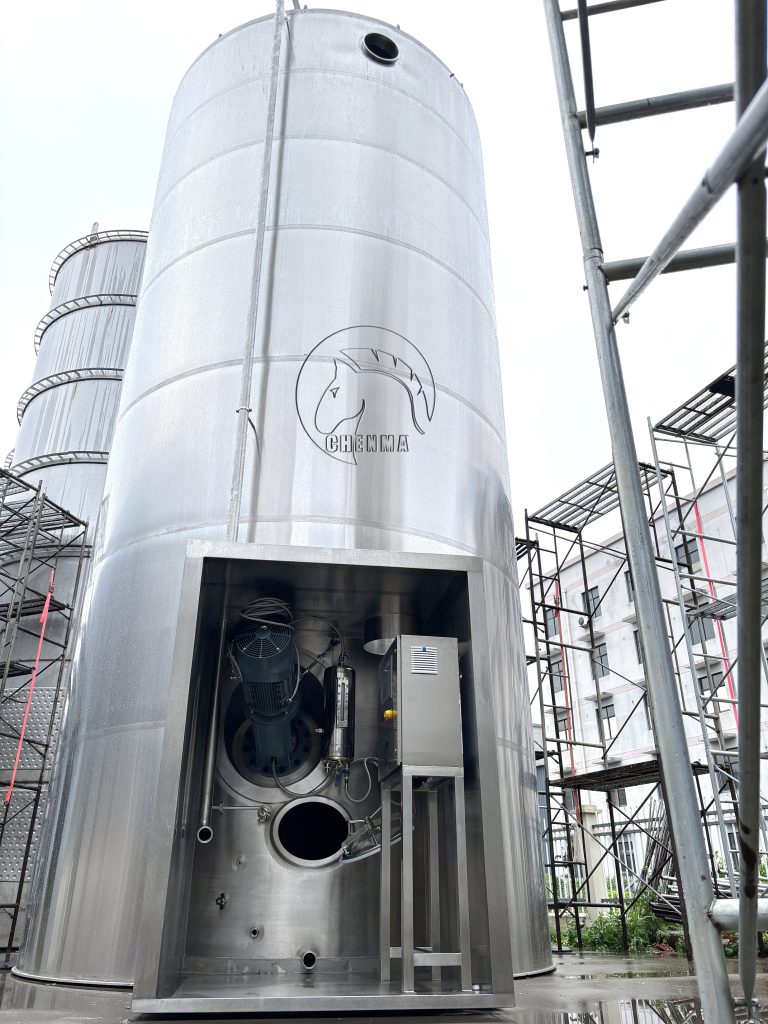

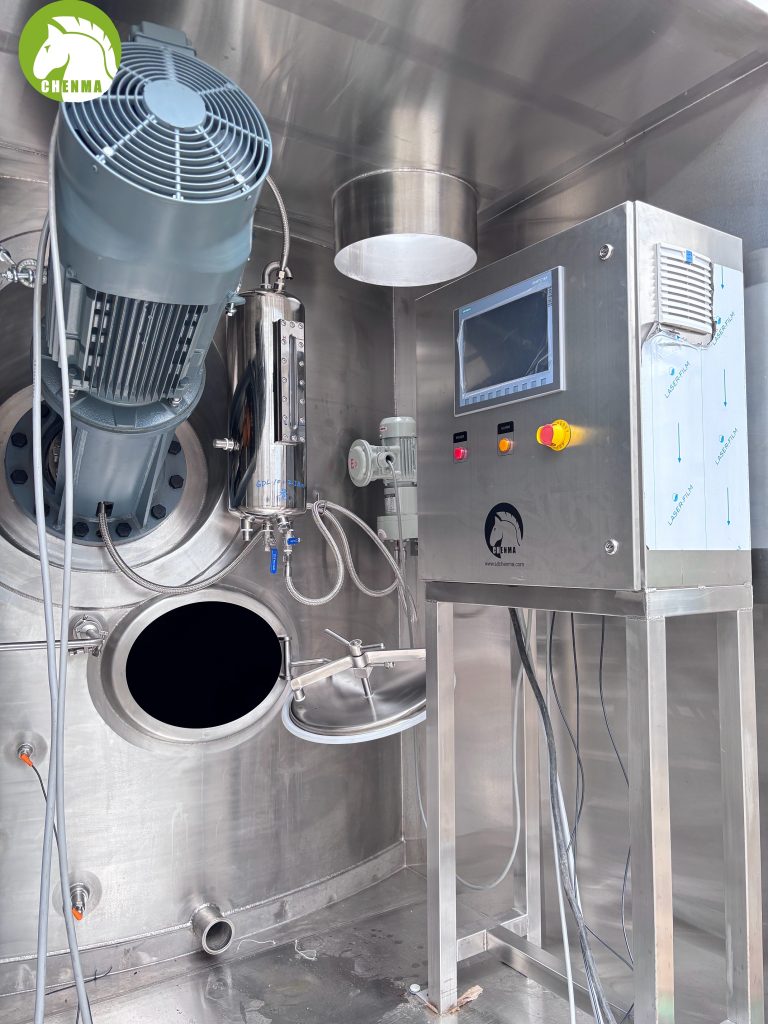

19.The tank with alcove;

20.The tank without legs to be mounted on the floor;

21.Complete with associated valves and fittings.
